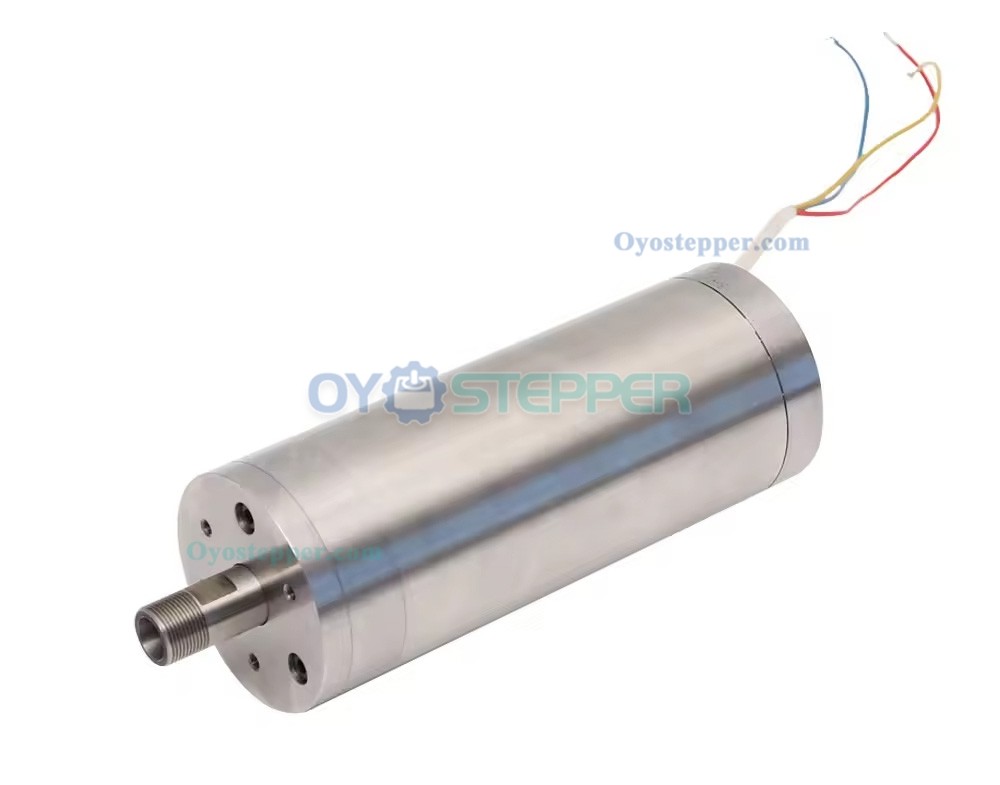

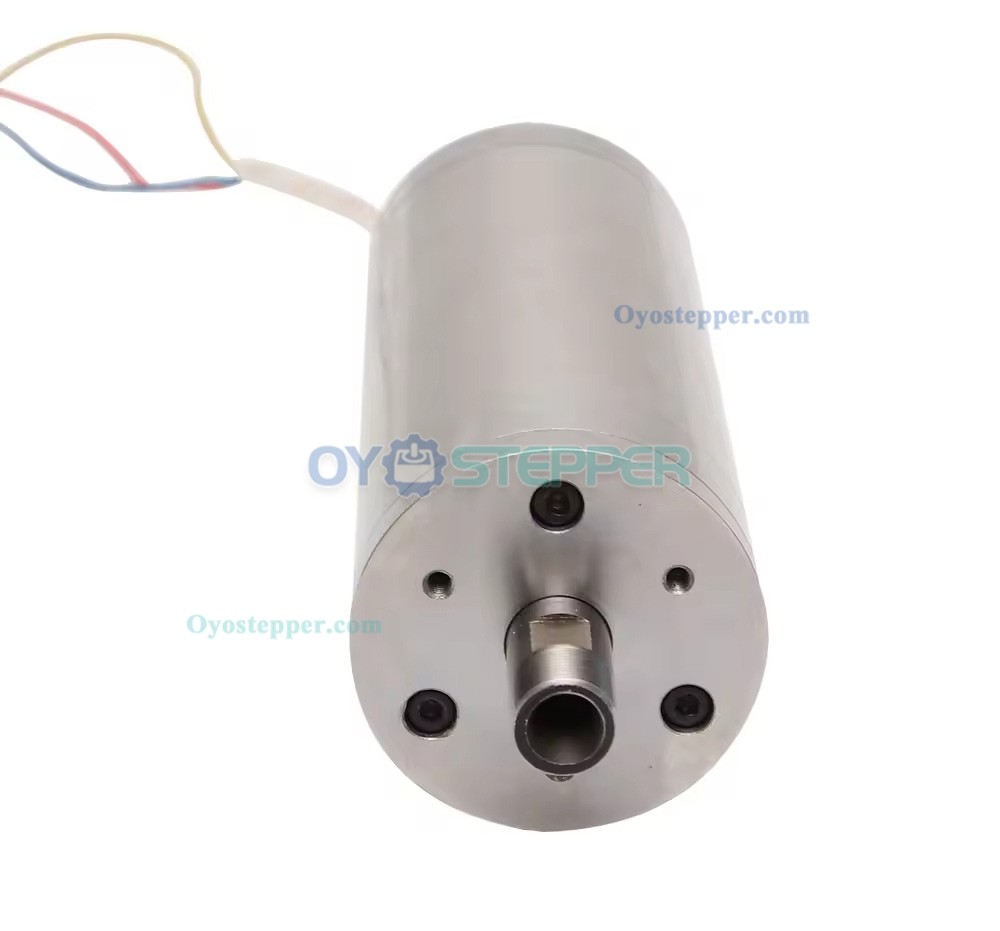

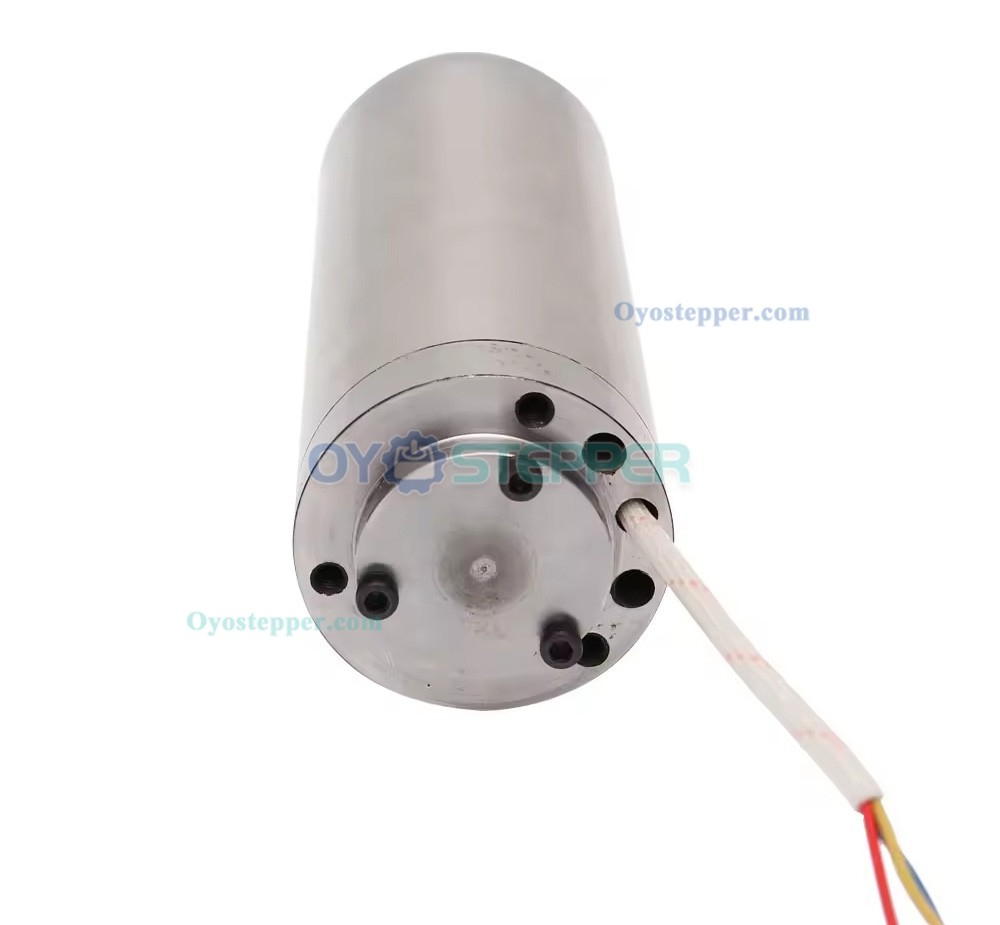

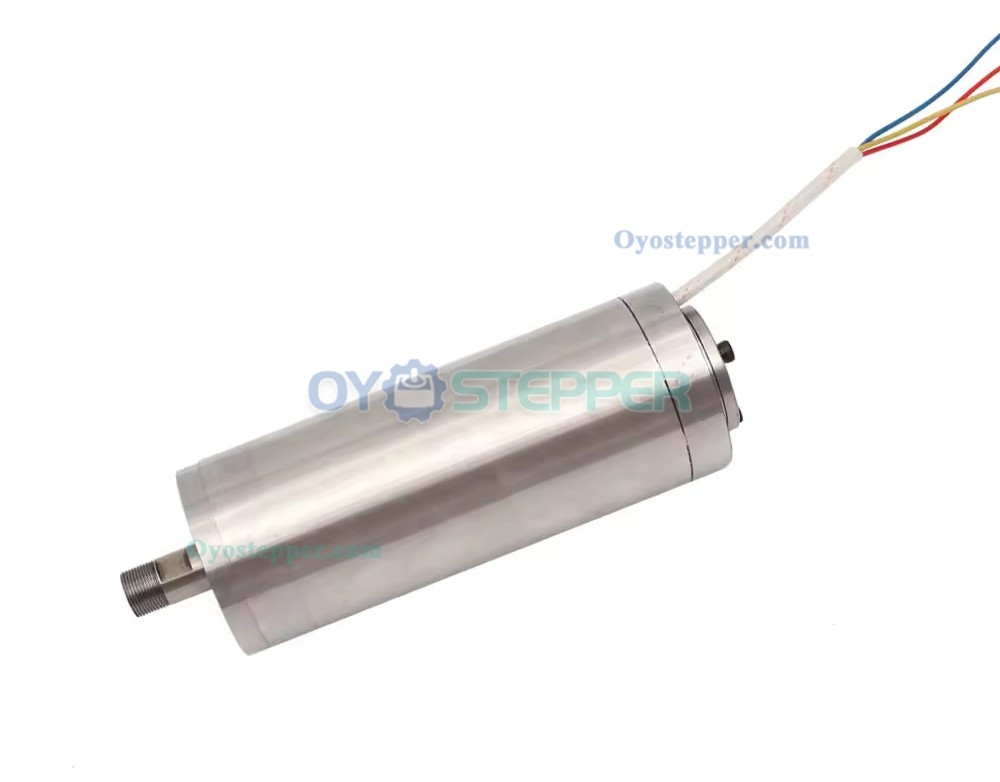

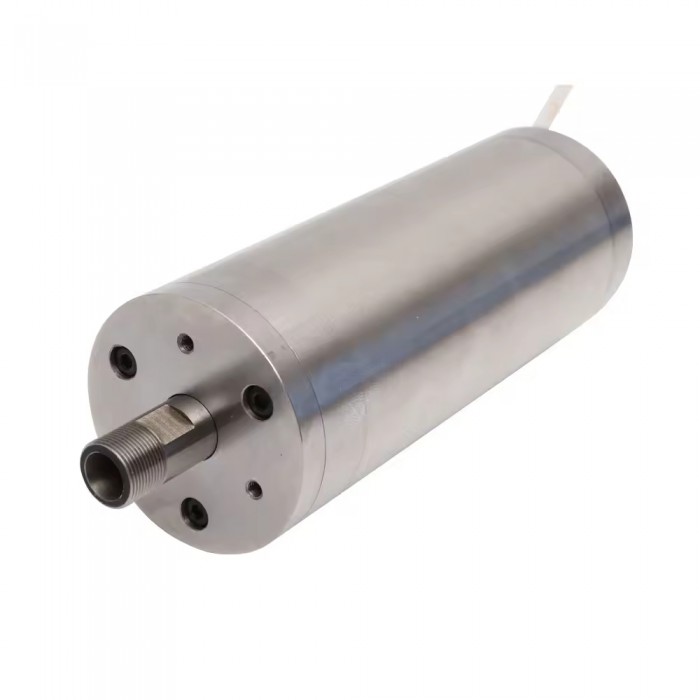

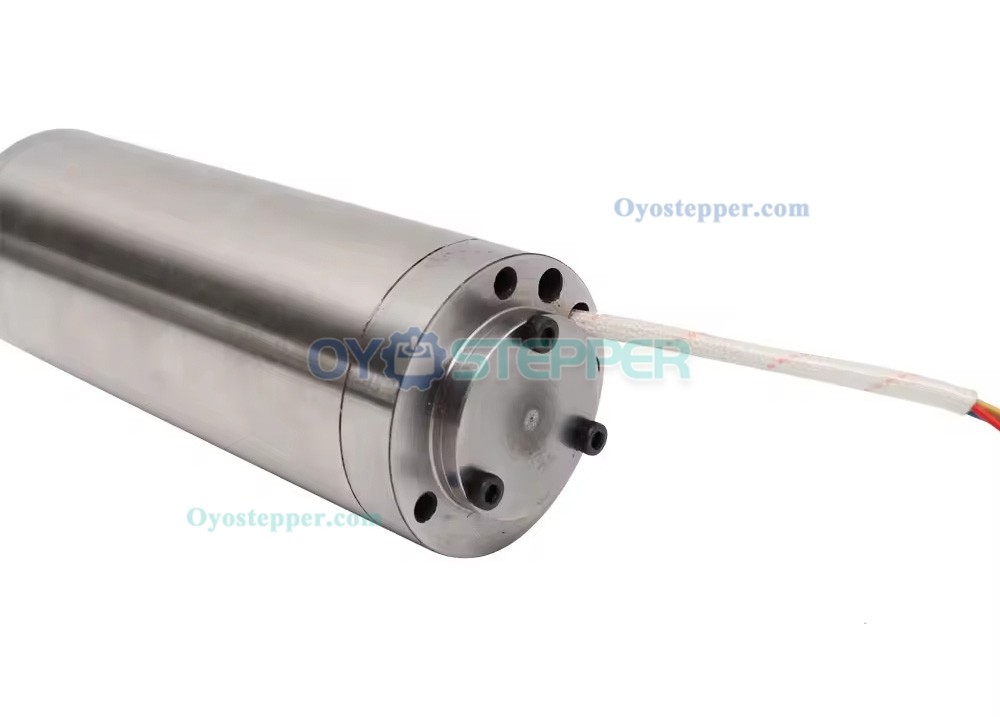

0.3KW 75V 2.5A ER8 48mm Water Cooled Spindle Motor 300W 60000RPM 10000HZ for CNC Router
0.3KW 75V 2.5A ER8 48mm Water Cooled Spindle Motor 300W 60000RPM 10000HZ for CNC Router
Specification:
Model:JGD-48-0.3k
Diameter:48mm
Power:0.3KW
Speed:20000-60000RPM
Voltage:75V
Current:2.5A
Frequency:333-10000HZ
Collet:ER8
Cooling Type:Water cooling
Lubrication:Grease
Weight:1.5KG
.jpg "0.3KW 75V 2.5A ER8 48mm Water Cooled Spindle Motor 300W 60000RPM 10000HZ for CNC Router")
.jpg "0.3KW 75V 2.5A ER8 48mm Water Cooled Spindle Motor 300W 60000RPM 10000HZ for CNC Router")
.jpg "0.3KW 75V 2.5A ER8 48mm Water Cooled Spindle Motor 300W 60000RPM 10000HZ for CNC Router")
.jpg "0.3KW 75V 2.5A ER8 48mm Water Cooled Spindle Motor 300W 60000RPM 10000HZ for CNC Router")
.jpg "0.3KW 75V 2.5A ER8 48mm Water Cooled Spindle Motor 300W 60000RPM 10000HZ for CNC Router")
| Spindle Motor Specification | |
|---|---|
| Bearing Lubrication | Grease |
| Collet Size | ER8 |
| Cooling | Water cooled |
| Current(A) | 2.5 |
| Diameter(mm) | 48 |
| Frequency(Hz) | 333 / 10000 |
| Shape | Round |
| Speed(RPM) | 20000 / 60000 |
| Voltage(VAC) | 75 |
| Weight(Kg) | 1.5 |
| Power(Kw) | 0.3 |
