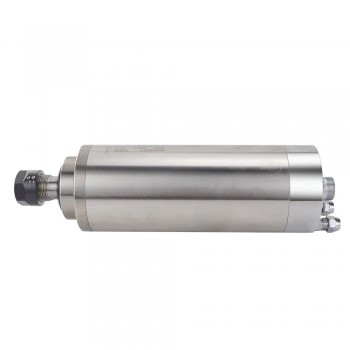

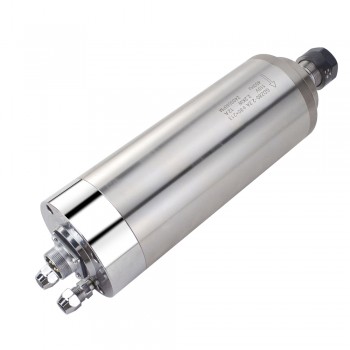

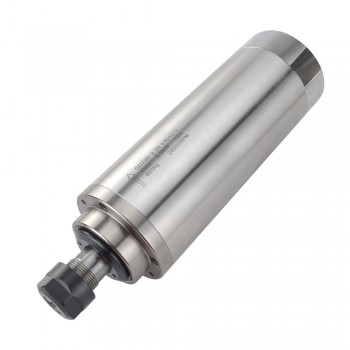

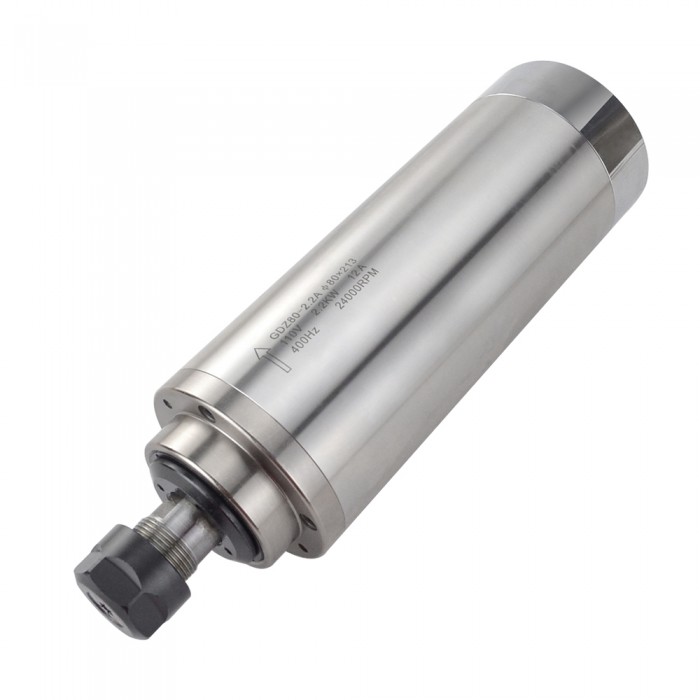

2.2KW Water Cooled Spindle Motor 110V 12A 24000RPM 400Hz ER20 Collet CNC Spindle Motor
Specification
Manufacturer Part Number: GDZ80-2.2A
Material: Stainless steel
Size: Ø80x213(Middle body diameter: 80 mm, Length:213 mm)
Power: 2.2 KW
Voltage: 110 VAC
Current: 12 A
Frequency: 0 ~ 400 Hz
Speed: 0 ~ 24000 RPM

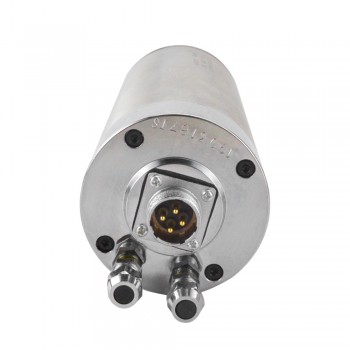

Cooling: Water cooled
Runout off: Less than 0.005 mm
Bearing Lubrication: Grease

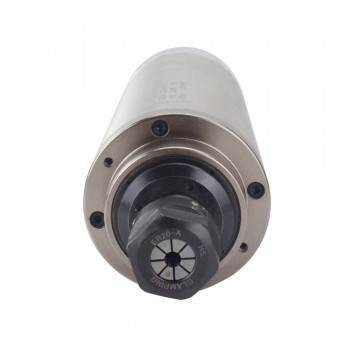

Collet size: ER20 Collet(6 mm)
Bearings: 2x7005C(P4 DT), 1x7002C(P4)
Weight: 5.25 kg
Resources
Manual: GDZ80-2.2A.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Spindle Motor Specification | |
|---|---|
| Bearing Lubrication | Grease |
| Bearings | 2x7005C(P4 DT), 1x7002C(P4) |
| Body Length(mm) | 213 |
| Collet Size | ER20 |
| Cooling | Water cooled |
| Current(A) | 12 |
| Diameter(mm) | 80 |
| Frequency(Hz) | 0 - 400 |
| Material | Stainless steel |
| Shape | Round |
| Speed(RPM) | 0 - 24000 |
| Voltage(VAC) | 110 |
| Weight(Kg) | 5.25 |
| Power(Kw) | 2.2 |
