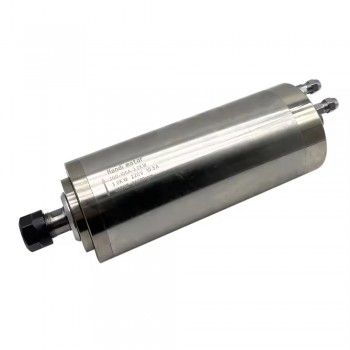

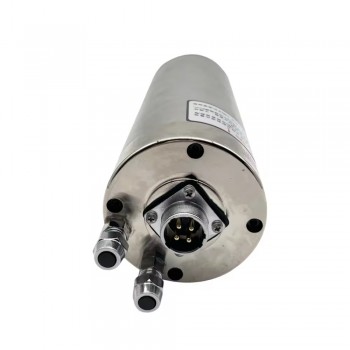

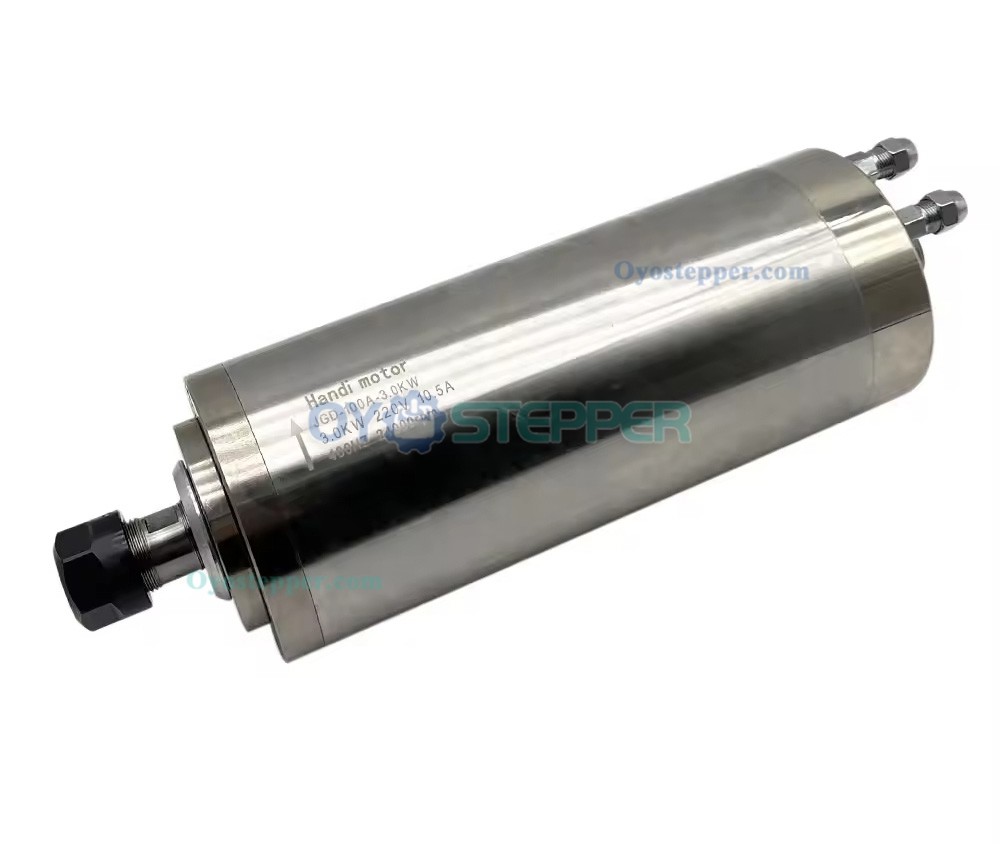

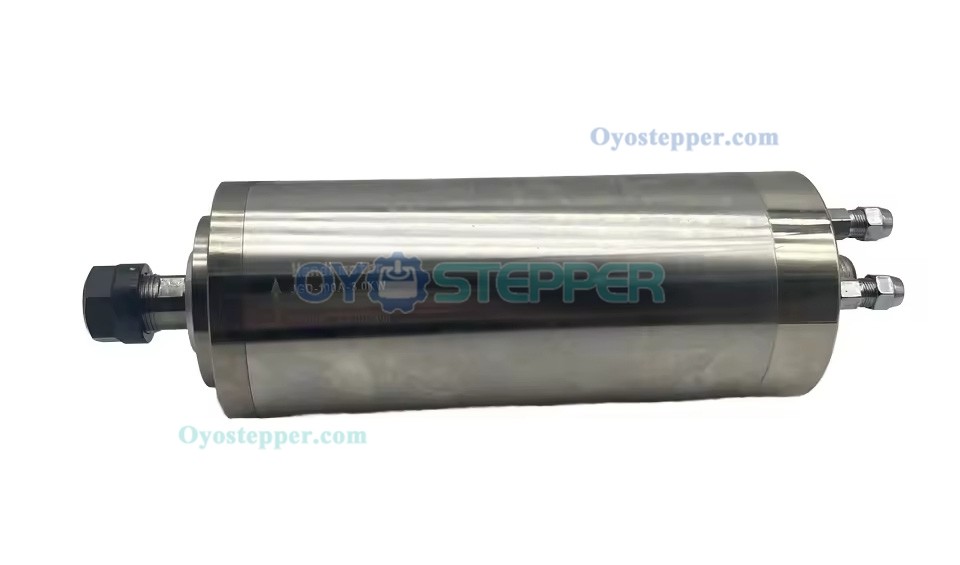

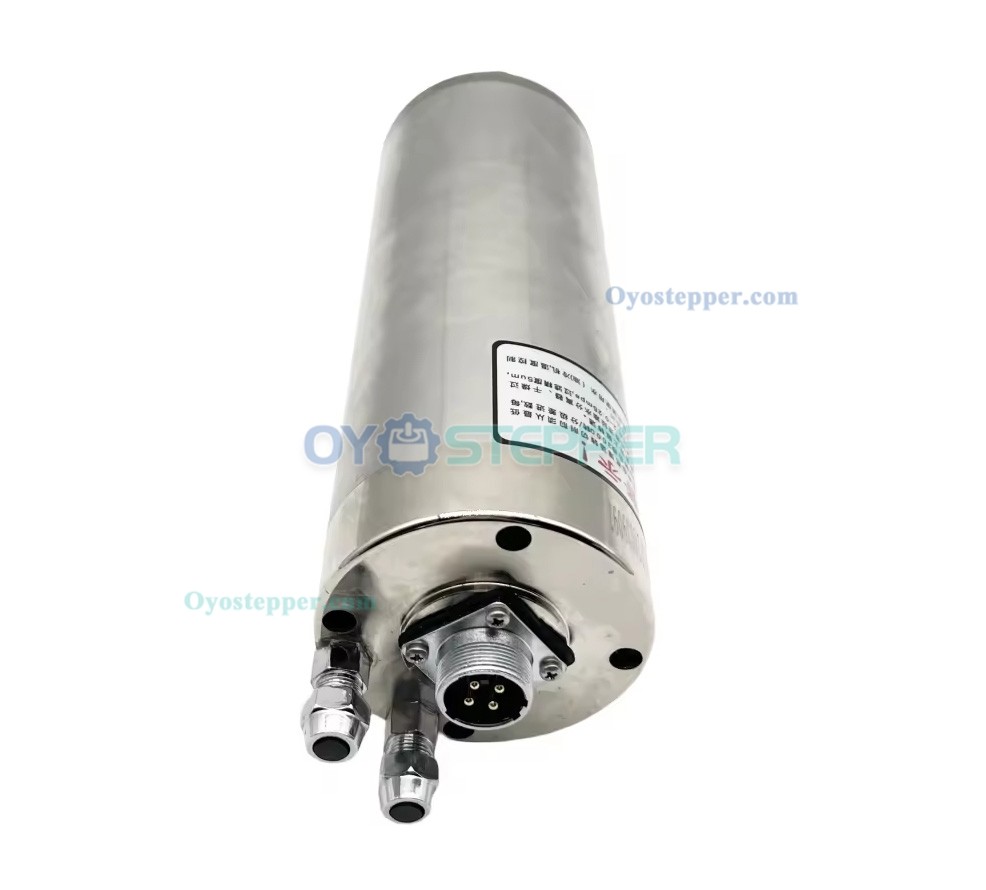

3KW ER20 100mm CNC Spindle Motor 24000RPM 10.5A 110V/220V/380V Water Cooled Spindle Motor
3KW ER20 100mm CNC Spindle Motor 24000RPM 10.5A 110V/220V/380V Water Cooled Spindle Motor
Specifications:
Model: JGD-100A-3.0KW
Rated Power:3KW
Rated Speed: 24000 RPM
Rated Voltage:110V/220V/380V
Rated Current:10.5A
Frequency: 400 Hz
Collet Type:ER20
Cooling Method: Water Cooling
Lubrication: Grease
Diameter:100mm
Weight:11KG
.jpg "3KW ER20 100mm CNC Spindle Motor 24000RPM 10.5A 110V/220V/380V Water Cooled Spindle Motor")
.jpg "3KW ER20 100mm CNC Spindle Motor 24000RPM 10.5A 110V/220V/380V Water Cooled Spindle Motor")
.jpg "3KW ER20 100mm CNC Spindle Motor 24000RPM 10.5A 110V/220V/380V Water Cooled Spindle Motor")
.jpg "3KW ER20 100mm CNC Spindle Motor 24000RPM 10.5A 110V/220V/380V Water Cooled Spindle Motor")

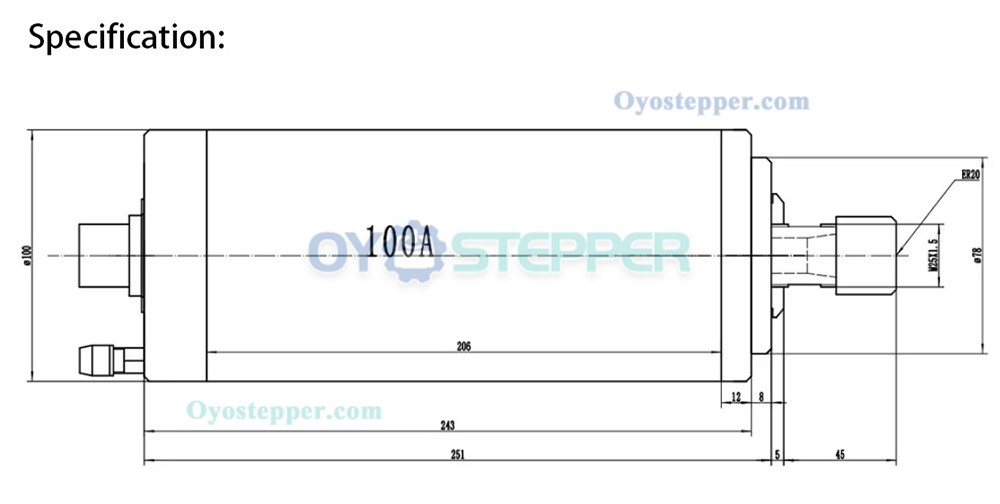

| Spindle Motor Specification | |
|---|---|
| Bearing Lubrication | Grease |
| Body Length(mm) | 243 |
| Collet Size | ER20 |
| Current(A) | 10.5 |
| Diameter(mm) | 100 |
| Frequency(Hz) | 400 |
| Shape | Round |
| Speed(RPM) | 24000 |
| Voltage(VAC) | 110 / 220 / 380 |
| Weight(Kg) | 11 |
| Power(Kw) | 3 |
| Cooling | Water cooled |
