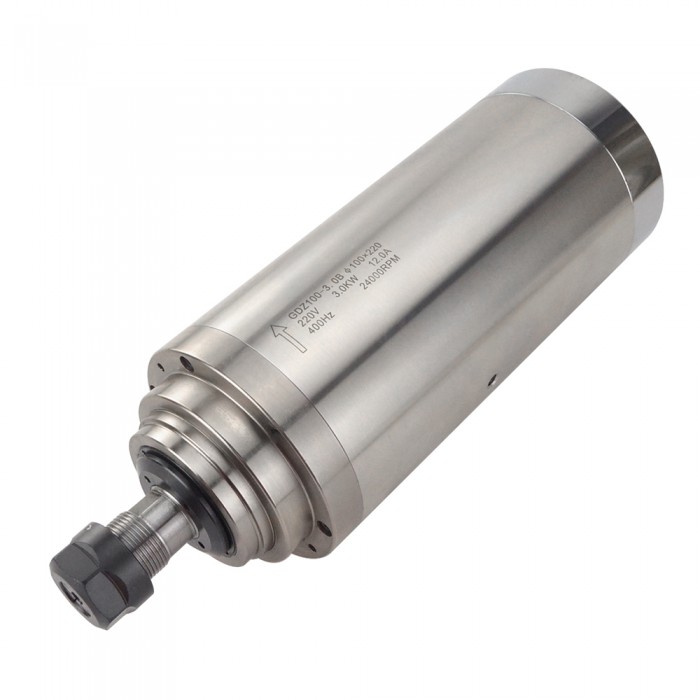

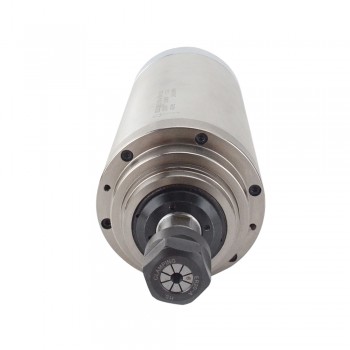

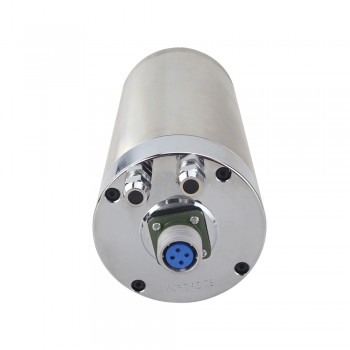

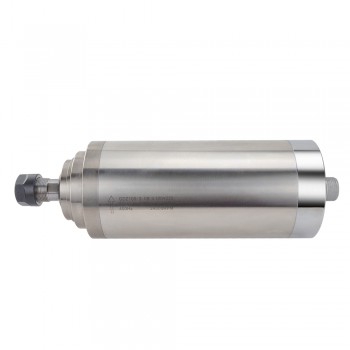

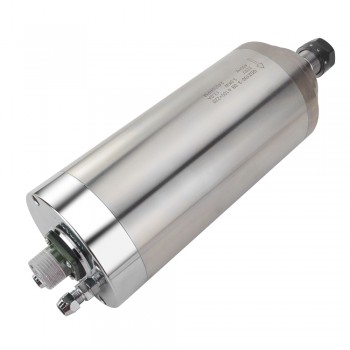

3KW Water Cooled Spindle Motor 220V 24000RPM 400Hz ER20 Collet VFD CNC Spindle Motor

NO.:GDZ100-3.0B
Post a review

Special Offer in Black Friday 2024:

6% OFF on Total Order Amount!
Enjoy Discount at Checkout!
Valid Till December 3th, 2024
Note:No coupon code needed, please place order directly!

Our Price:$297.51

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
2	$282.63	5%
5	$276.68	7%
10	$267.76	10%
50	$258.83	13%

Affiliate Link

Description Specification Custom Options Review

Specification

Manufacturer Part Number: GDZ100-3.0B

Material: Stainless steel

Size: Ø100x220(Middle body diameter: 100 mm, Length: 220 mm)

Power: 3 KW

Voltage: 220 VAC

Current: 12 A

Frequency: 0 ~ 400 Hz

Speed: 0 ~ 24000 RPM

Cooling: Water cooled

Runout off: Less than 0.005 mm

Bearing Lubrication: Grease

Collet size: ER20 Collet(6 mm)

Bearings: 2x7005C(P4 ), 1x7003C(P4)

Weight: 9.1 kg

Resources

Manual: GDZ100-3.0B.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 2.2KW Water Cooled Spindle Motor 220V 8A 24000RPM 400Hz ER20 Collet for CNC Router Machine
Next: 1.5KW Air Cooled Spindle Motor110V 24000RPM 400Hz ER11 Collet VFD CNC Spindle Motor

Spindle Motor Specification
Bearing Lubrication	Grease
Bearings	2x7005C(P4 ), 1x7003C(P4)
Collet Size	ER20
Cooling	Water cooled
Current(A)	12
Diameter(mm)	100
Frequency(Hz)	0 - 400
Material	Stainless steel
Shape	Round
Speed(RPM)	0 - 24000
Voltage(VAC)	220
Weight(Kg)	9.1
