3D Light Edge Finder Photoelectric Edge Finder Milling Machine Touch Probe 0.01mm

3D Light Edge Finder Photoelectric Edge Finder Milling Machine Touch Probe 0.01mm

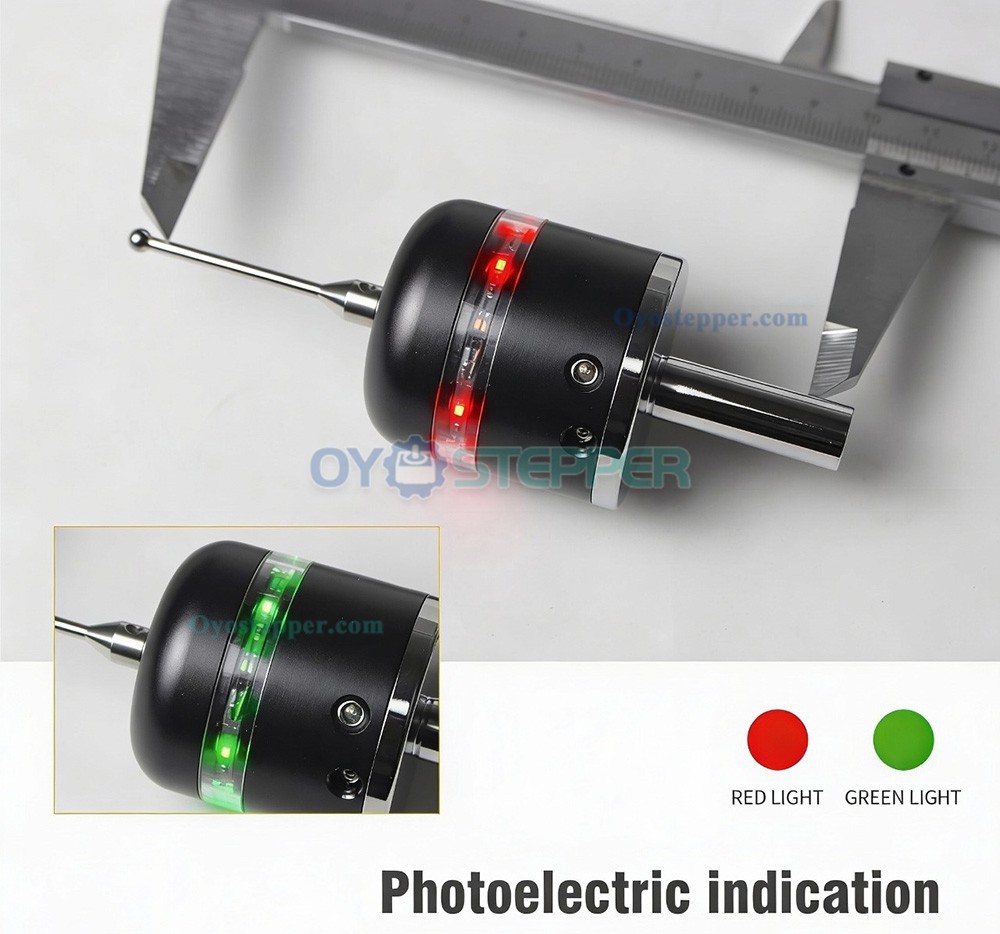

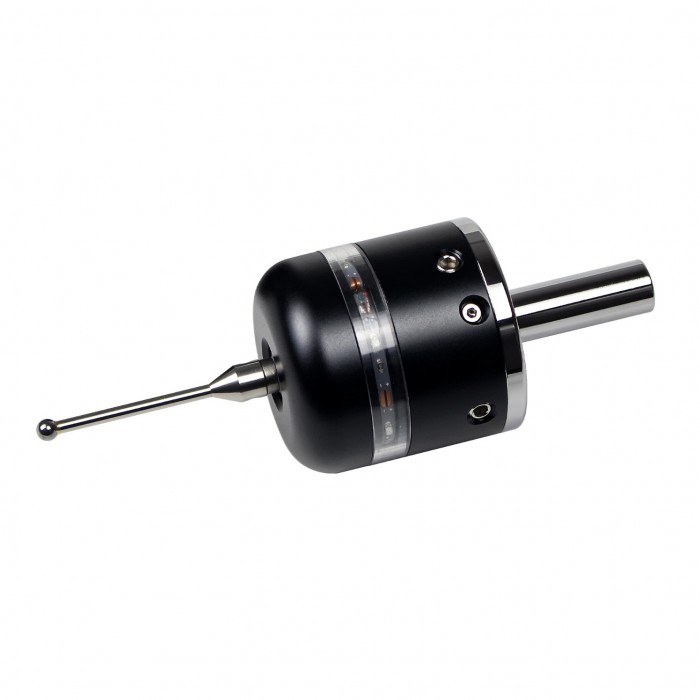

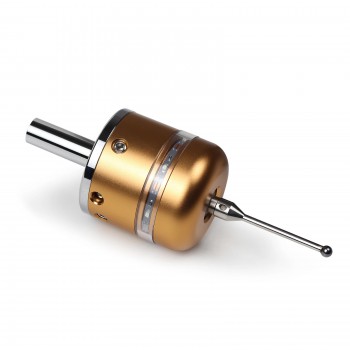

The MF60 3D Edge Finder is commonly used for positioning and measurement on CNC lathes, milling machines, and similar equipment. It supports probing in the X, Y, and Z axes and is powered by a built-in battery.


Features:

Tri-directional Probing: Enables measurement in the X, Y, and Z axes.

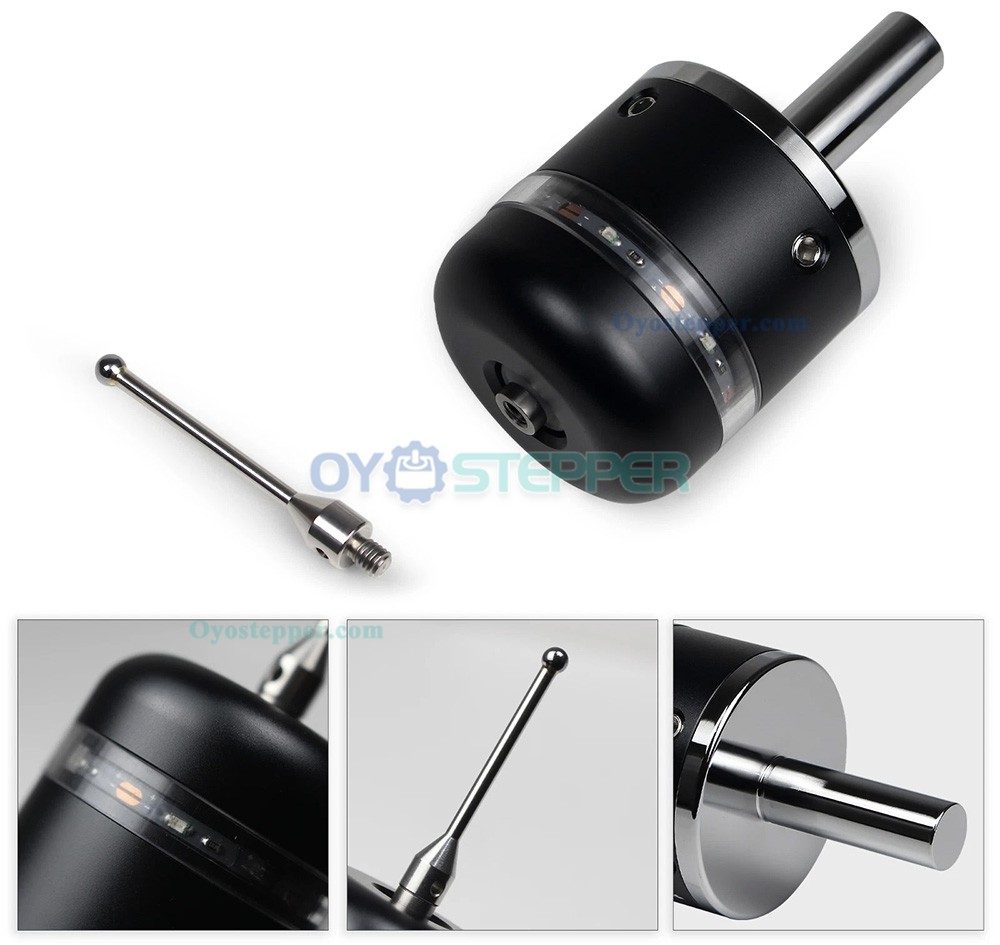

The probe head can be rotated 180° for measurement and centering from different angles.

Sealed Design: Features a flat anti-roll design with a sealed housing.



Specifications:

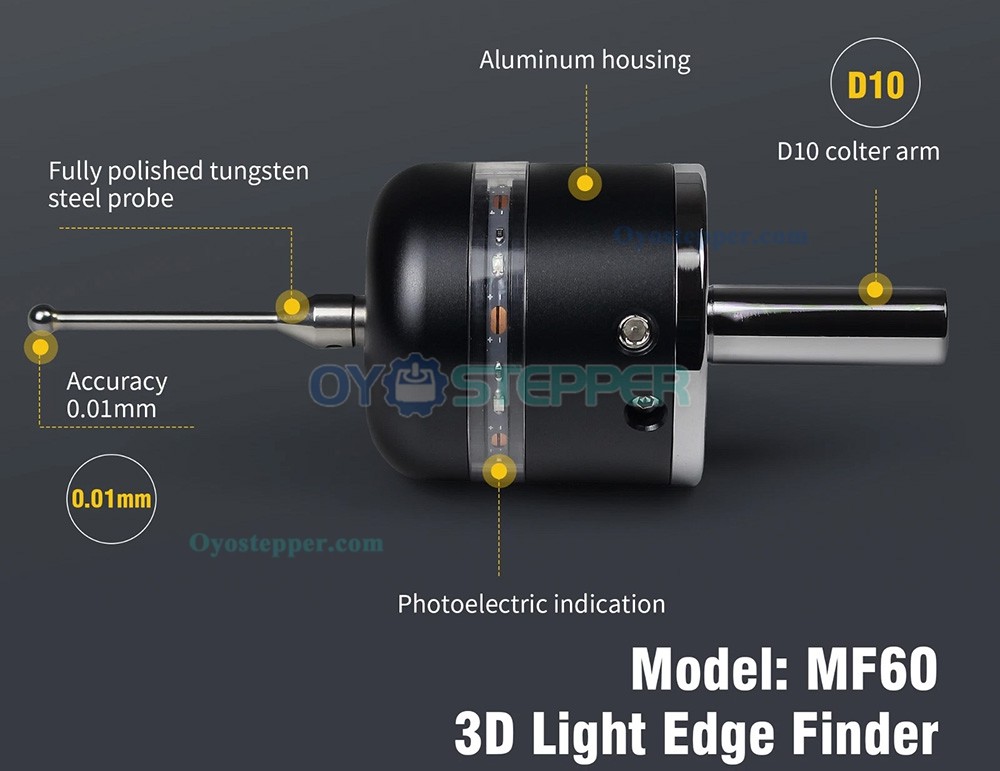

Model: MF60

Measurement Accuracy: < 0.01mm

Repeatability: < 0.01mm

Probe Direction: ±X, ±Y, +Z

Safe Probe Travel: XY: ±15°, Z: +5mm

XY Deflection Range: 0–6°

Z-direction Extension Range: 1mm

Trigger Life: 5,000,000 cycles

Probe Material: Tungsten Steel

Body Material: Anodized Aluminum Alloy

Power Supply: Built-in 1616 battery (3.6V)

Compatible Materials: Metal;
