Nema 11 External 32mm Stack 0.42A Lead 0.635mm/0.025" Length 150mm
Special Offer in June 2023:
- 5% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till June 10th, 2023
- Note:No coupon code needed, please place order directly!
Our Price:$73.95

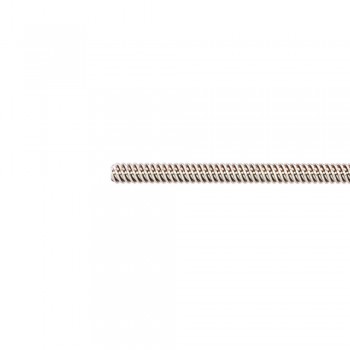

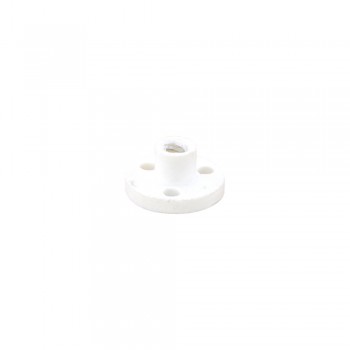

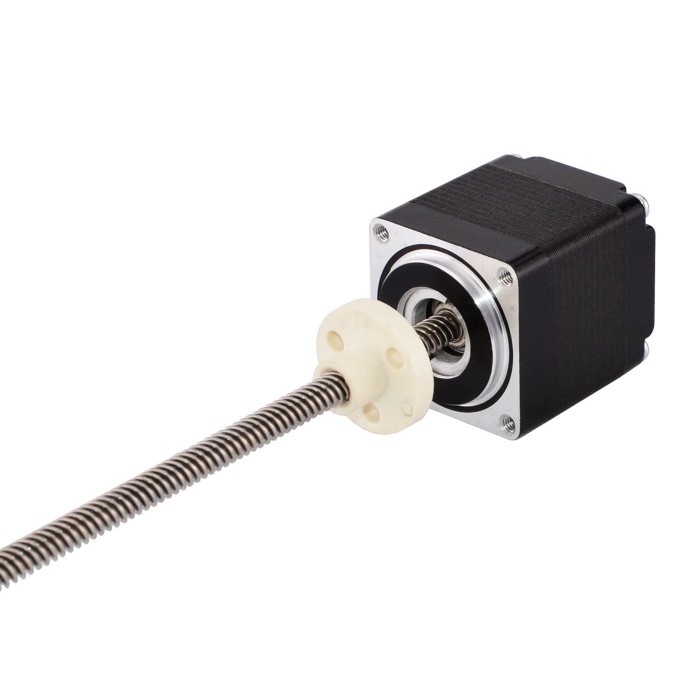

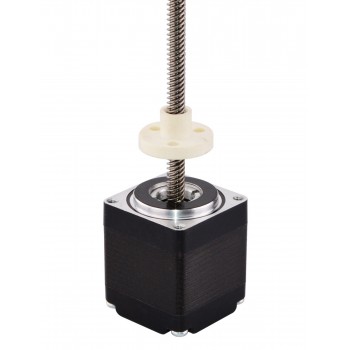

This model is almost exactly same as Haydon Kerk 28000 series size 11 external stepper motor linear actuator. The motor part is 32mm body 1.8 degree 0.42A Nema 11 stepper motor, and it has integrated with a 4.76mm (0.1874") diameter 150mm (5.9055") length lead screw and a POM screw nut, the linear travel is 0.635mm (0.025") per revolution.
Electrical Specification
- Manufacturer Part Number: 11LS13-04247-150E
- Motor Type: External Linear Stepper
- Step Angle: 1.8°
- Minimal Thrust: 57N (300pps)
- Rated Current/phase: 0.42A
- Phase Resistance: 11.9ohms
- Voltage: 5V
- Inductance: 6.7mH±20%(1KHz)
Physical Specification
- Frame Size: 28 x 28mm
- Body Length: 32mm
- Lead Screw Length: 150mm(5.9055")
- Lead Screw Diameter: Φ4.76mm(0.1874")
- Lead/Step: 0.003175mm(0.000125" )
- Lead Travel/Revolution: 0.635mm(0.025")
- Number of Leads: 4
- Lead Length: 500mm
- Weight : 119g

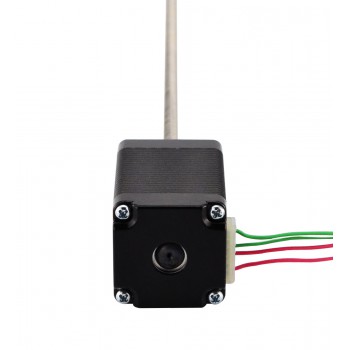

Connection
|
A+
|
A-
|
B+
|
B-
|
|
Red
|
Red/White
|
Green/White
|
Green
|
Resources
- Full Datasheet: 11LS13-04247-150E.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 6 |
| Minimal Thrust(N) | 57 |
| Motor Type | External |
| Phase Resistance(ohm) | 11.4 |
| Rated Current (A) | 0.42 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 32.2 |
| Frame Size(mm) | 28x28 |
| Lead Screw Diameter(mm) | 4.76 |
| Lead Screw Length(mm) | 150 |
| Lead Revolution(mm) | 0.635 |
| Linear Travel / Step(mm) | 0.003175 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
