Single / Dual Output Shaft Diameter 25mm for NMRV50 Worm Gearbox Speed Reducer

Single / Dual Output Shaft Diameter 25mm for NMRV50 Worm Gearbox Speed Reducer

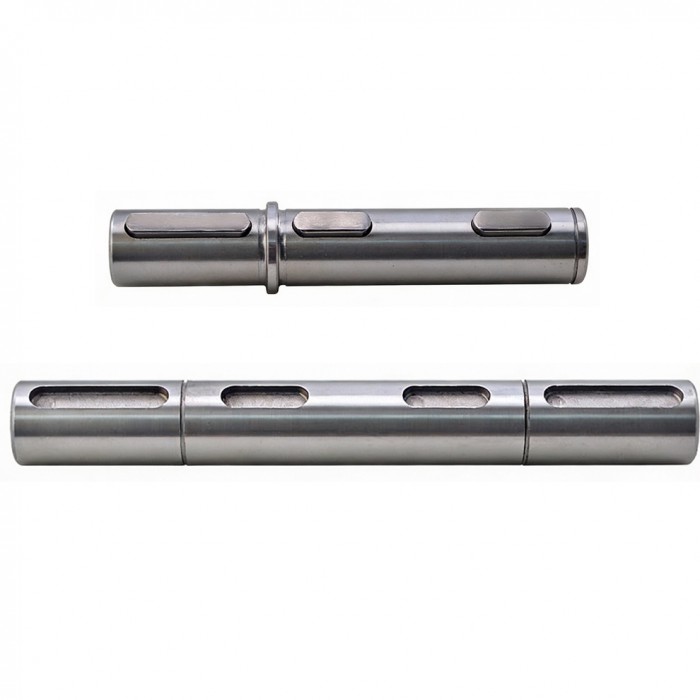

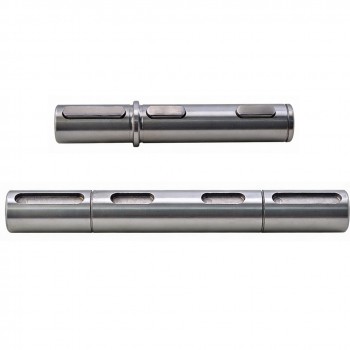

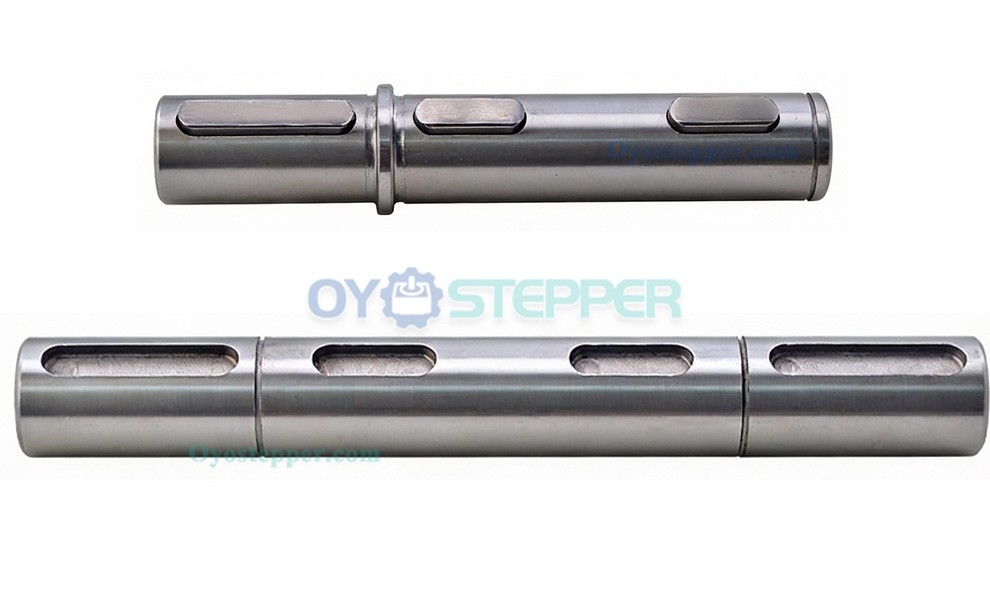

This is single output / double shaft for NMRV50 Worm Gear Speed Reducer, the output shaft diameter is 25mm with 5mm/8mm keyway and M10 screw holes on the end.

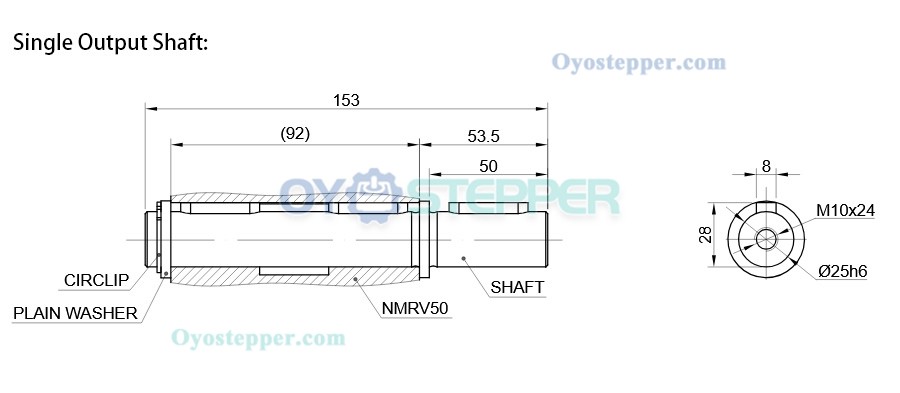

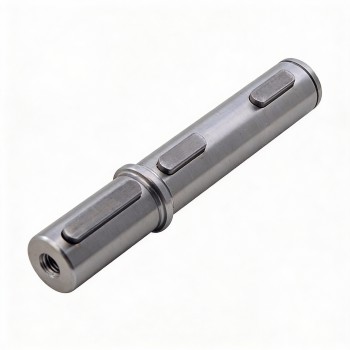

Single Output Shaft Specifications:
Manufacturer Part Number: RV50-AS
Single/Double Shaft: Single Shaft
Output Shaft Type: Key way
Output Shaft Diameter: Φ25mm
Output Shaft Length: 153mm
Screw Holes on Shaft End: M10 x 24

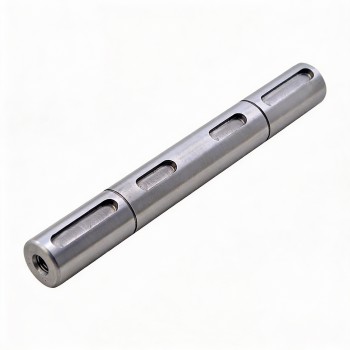

Double Output Shaft Specifications:
Manufacturer Part Number: RV50-AB
Single/Double Shaft: Double Shaft
Output Shaft Type: Key Way
Output Shaft Diameter: Φ25mm
Output Shaft Length: 199mm
Screw Holes on Shaft End: M10 x 24
