Nema 23 Non-captive Stepper Motor Linear Actuator 0.7Nm 1.8 Deg 2A 3.26V Lead Lead Revolution Screw 300mm

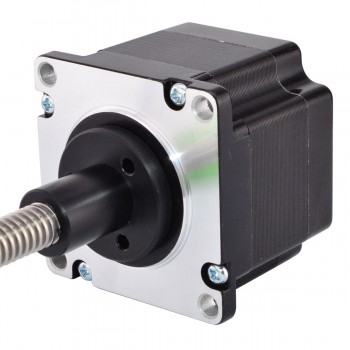

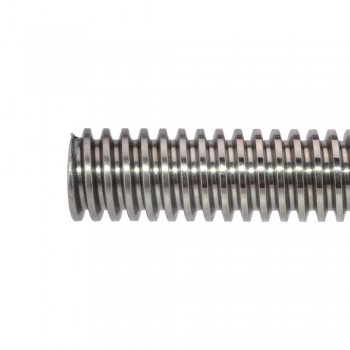

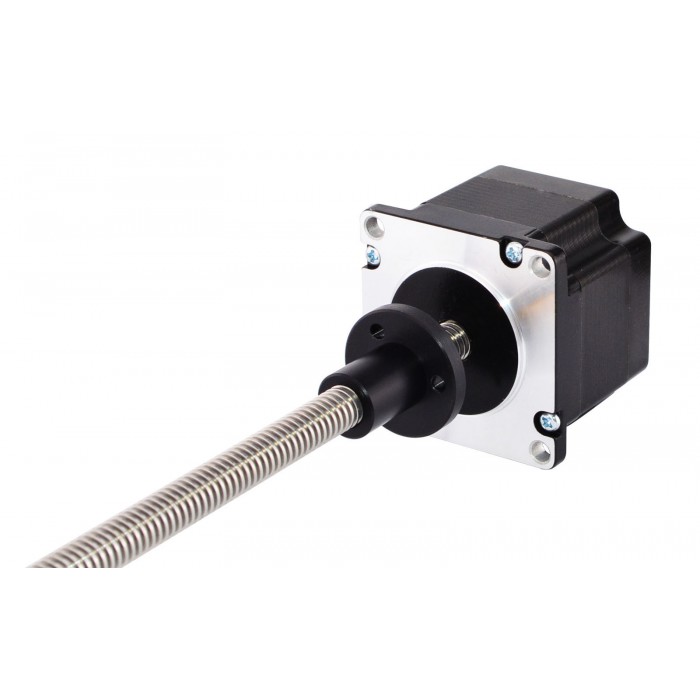

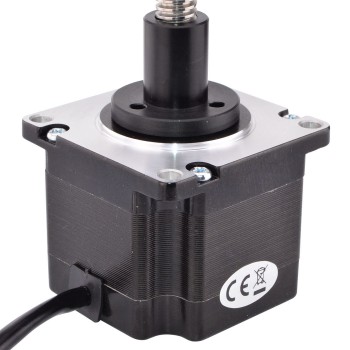

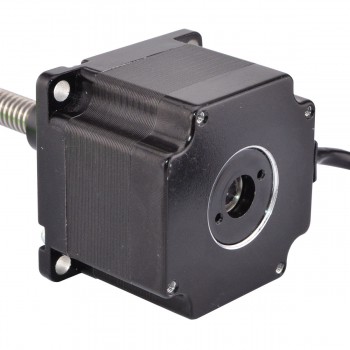

This model is economy linear stepper motor which named Nema 23 external linear actuator, the motor part is 45mm 1.8 degree 2A Nema 23 stepper motor. It was integrated with 300mm Tr10x2 threaded rod and a POM screw nut move along the threaded rod.
Electrical Specification
Manufacturer Part Number: 23LS18-2004E-300N
Motor Type: Bipolar Stepper
Holding Torque: 0.7Nm
Rated Current/phase: 2.0A
Phase Resistance: 1.63ohms
Voltage: 3.26V
Inductance: 5.8mH ± 20%(1KHz)
Physical Specification
Frame Size: 57 x 57mm
Motor Length: 45mm
Lead Screw Length: 300mm（11.811"）
Lead Screw Diameter: Φ10mm（0.3937"）
Lead /Step: 0.01mm(0.0003937" )
Lead/Revolution: 2mm（0.0787"）
Number of Leads: 4
Lead Length: 500mm
Weight : 650g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
Full Datasheet: 23LS18-2004E-300N.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 70 |
| Holding Torque (oz.in) | 99 |
| Inductance(mH) | 5.8 |
| Motor Type | External |
| Phase Resistance(ohm) | 1.63 |
| Rated Current (A) | 2 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 45 |
| Lead Screw Diameter(mm) | 10 |
| Lead Screw Length(mm) | 300 |
| Lead Revolution(mm) | 2 |
| Linear Travel / Step(mm) | 0.01 |
| No. of Lead | 4 |
| Lead Length(mm) | 500 |
| Frame Size(mm) | Nema 23 (57 x 57) |
