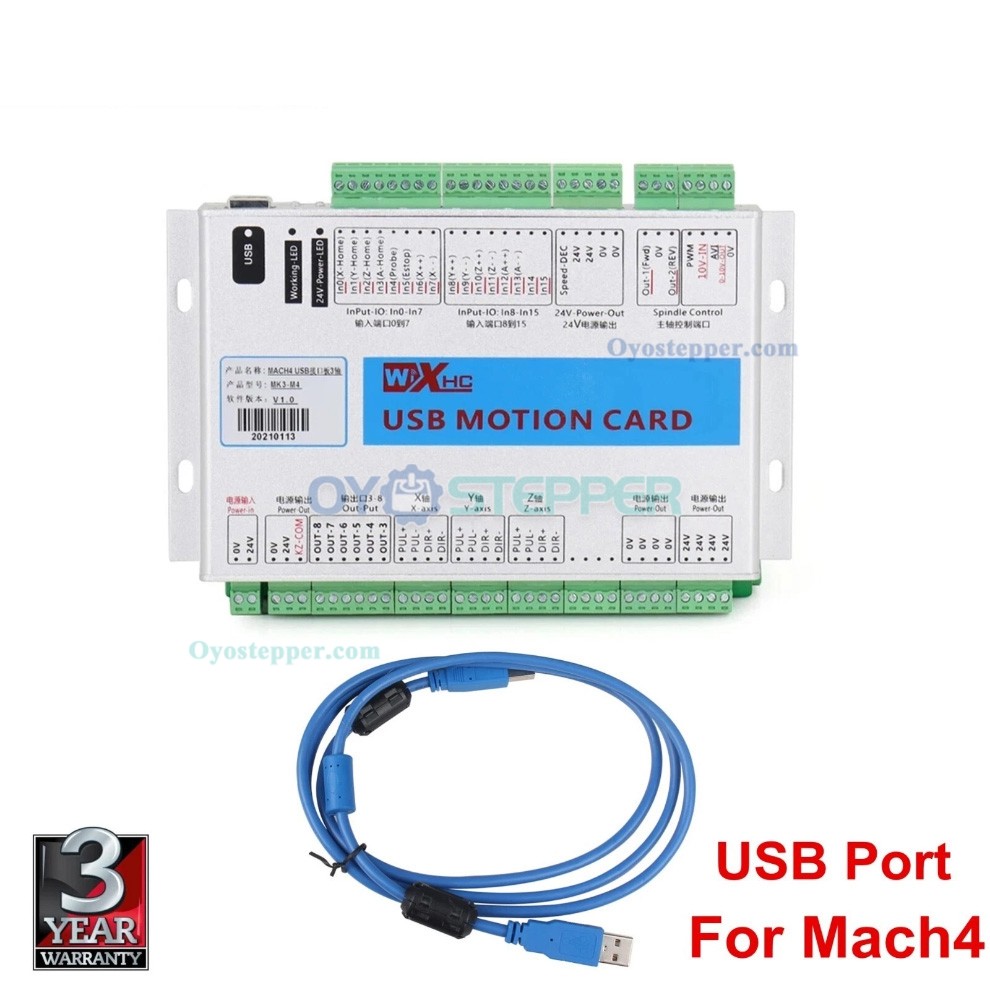

XHC 3 4 6 Axis CNC Mach4 Motion Controller Card 2000KHz USB Breakout Board

XHC 3 4 6 Axis CNC Mach4 Motion Controller Card 2000KHz USB Breakout Board

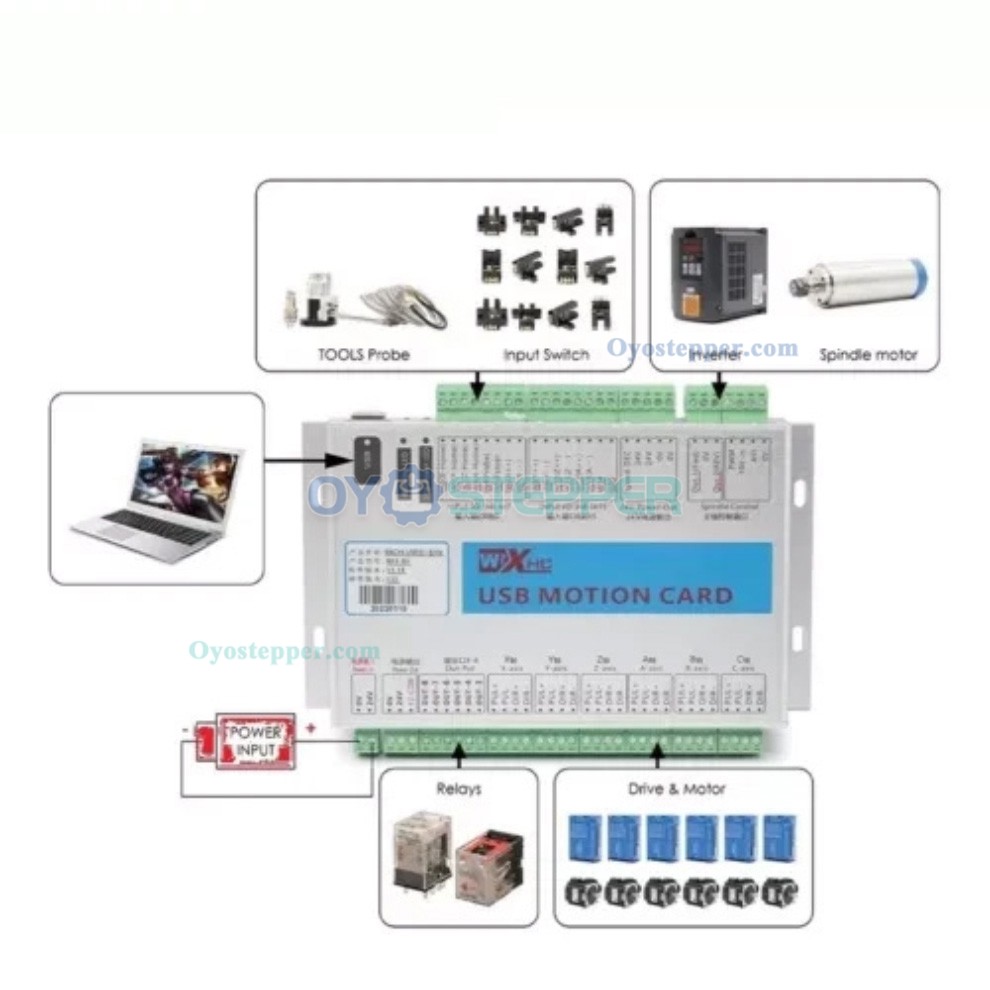

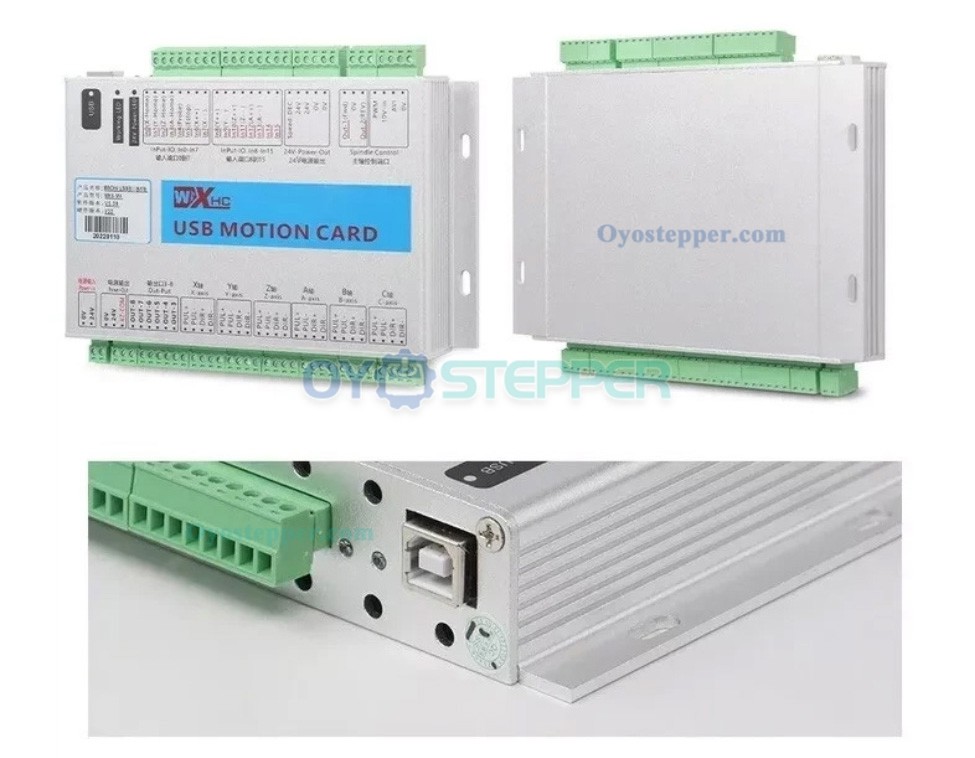

A USB motion controller compatible with Mach4 Hobby software, designed for CNC applications. Supports control of stepper and servo motors, with integrated I/O and spindle management.



Features:

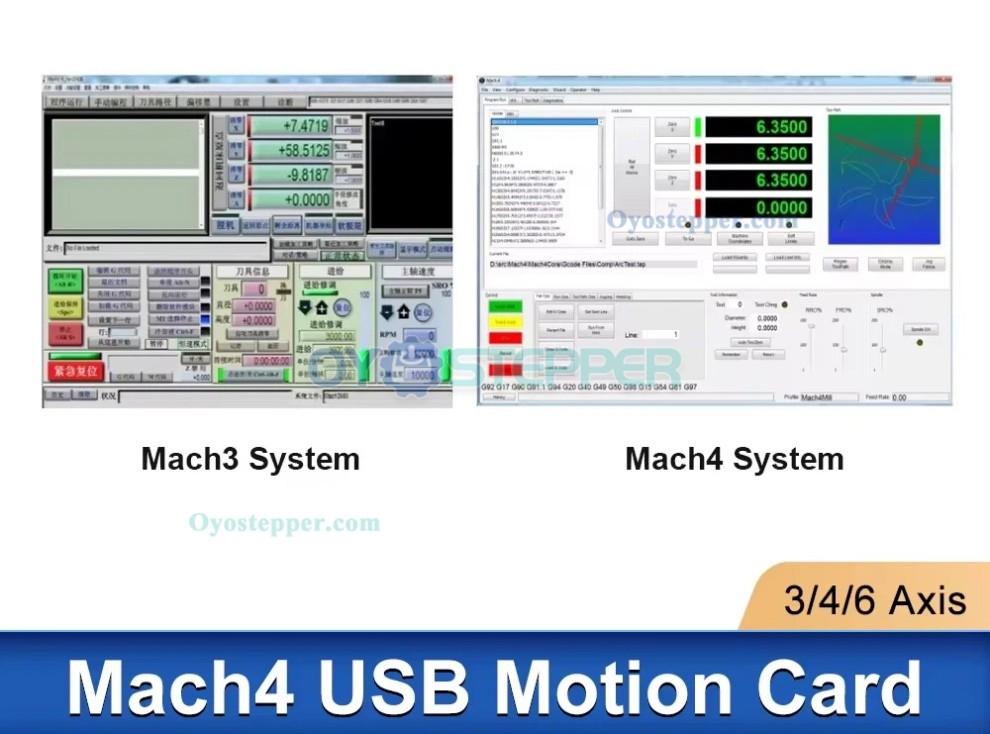

Compatible with Mach4 Hobby edition on Windows OS.

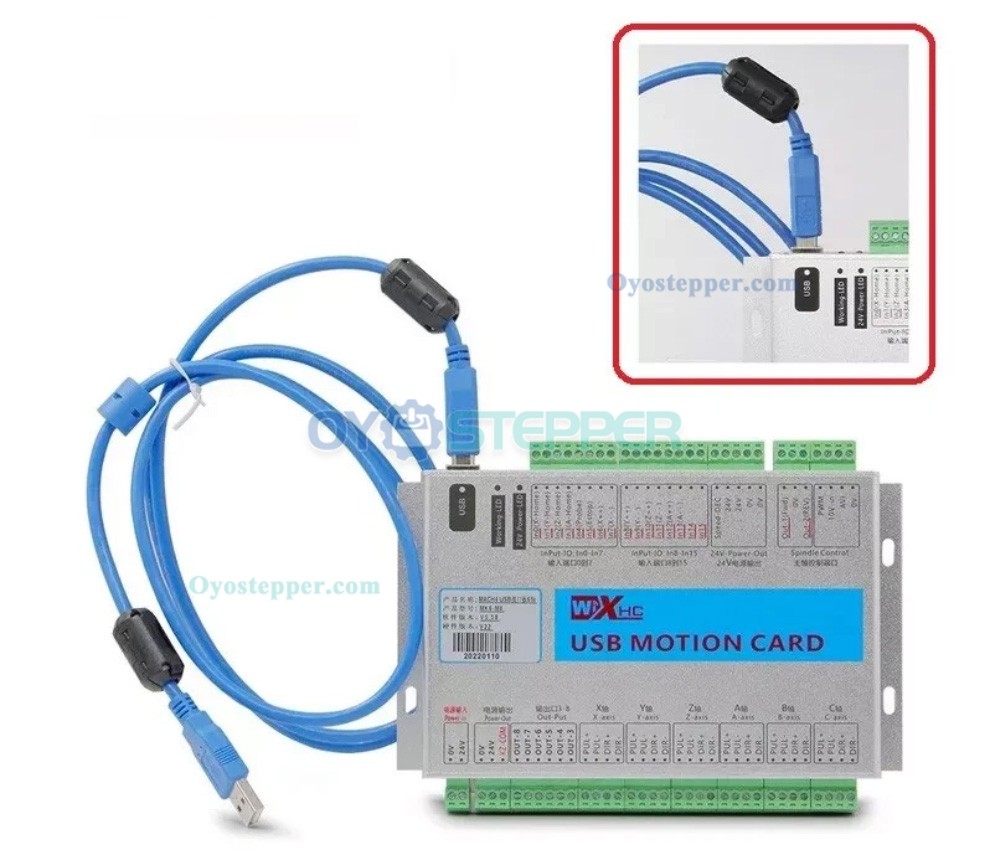

USB plug-and-play connectivity

Supports up to 4-axis simultaneous motion (models available for 3/4/6 axes).

2000 kHz pulse output frequency.

Provides 16 isolated input and 8 isolated output ports.

Status indicators for USB connection, software link, and operation.

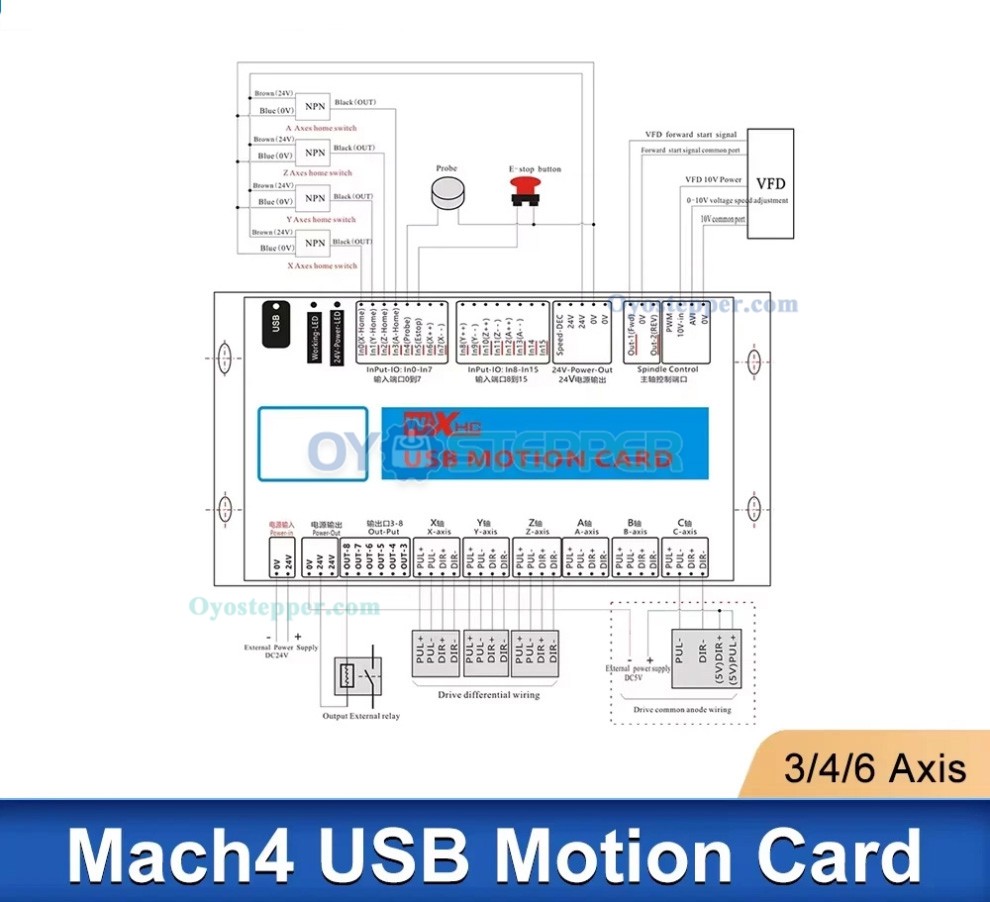

Spindle control supports analog voltage (0-10V), PWM, and pulse/direction outputs.

Includes spindle speed feedback input.



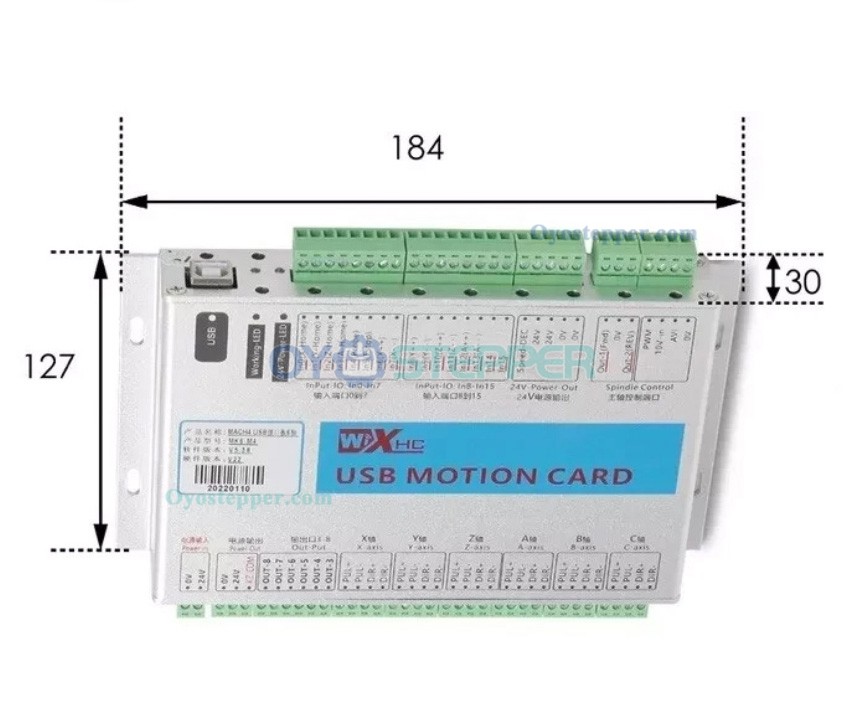

Technical Specifications:

Axis Control

Output Type: Isolated open collector (Pulse + Direction)

Output Frequency: Up to 2000 kHz

Output Current: 5V, 20 mA

Isolation Voltage: 3.5 kV

Spindle/Inverter Control

Analog Voltage Output: 0 - 10V

PWM Output: 5V, 1 kHz, 0-100% duty cycle

Pulse/Direction Output: 5V, 15 Hz to 4 kHz

Input/Output Ports

Inputs (16): Isolated, active low signal compatible (mechanical switch or NPN/PNP sensor). Max. voltage: 25V, 5 mA.

Outputs (8): Isolated open collector. Max. voltage: 25V, 5 mA.

Isolation Voltage (I/O): 3.5 kV;



Applications

Used for CNC control in mold making, woodworking, parts machining, signage production, and general prototyping.



Package Includes

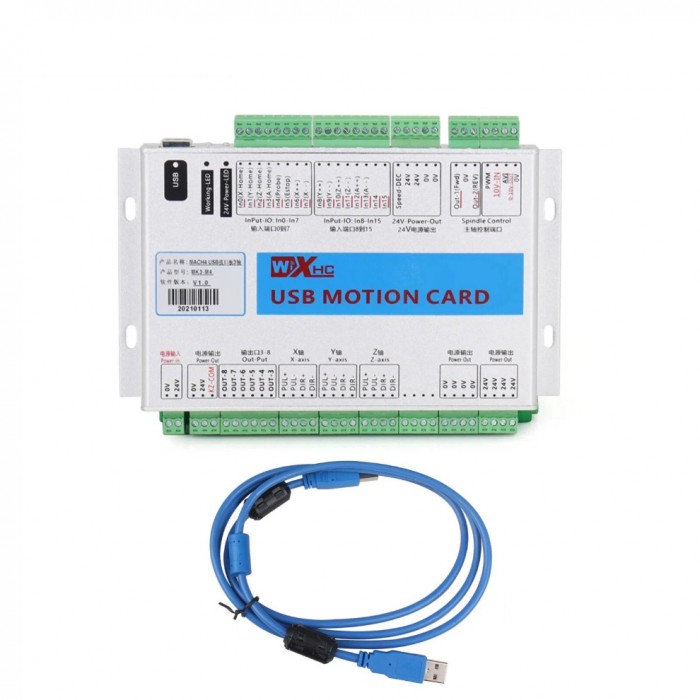

1 x XHC Motion Controller Card (3/4/6-Axis)

1 x USB Cable

English manual (provided via email);
