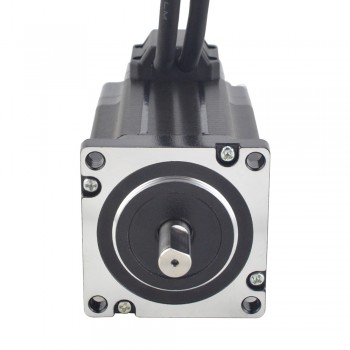

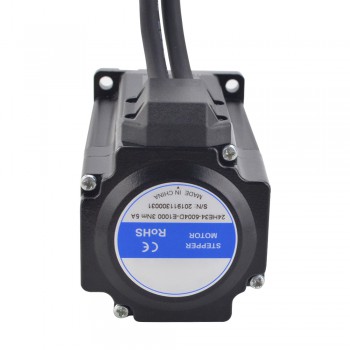

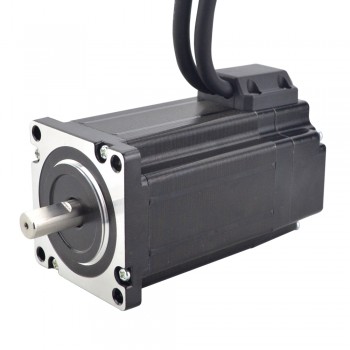

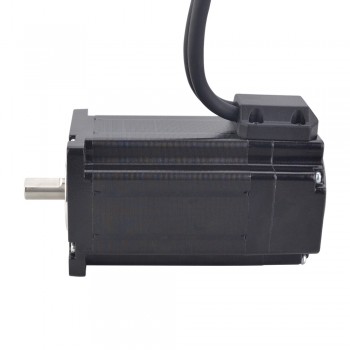

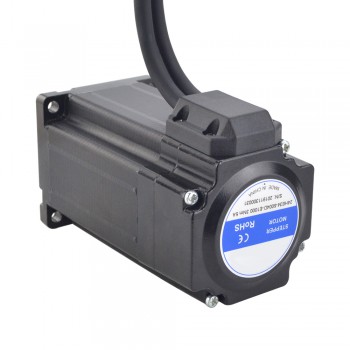

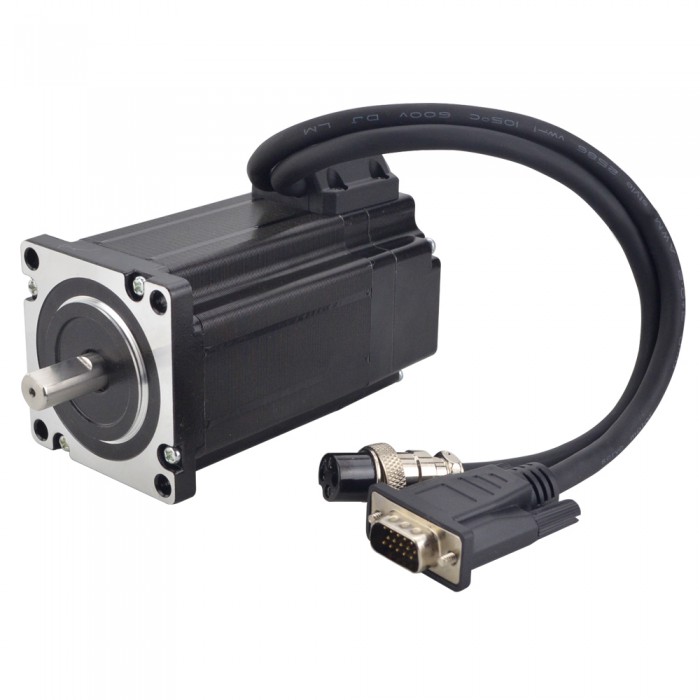

Nema 24 Closed Loop Stepper Motor E Series1.8 Deg 3.0 Nm 5.0A 2 Phase with Encoder 1000CPR

Nema 24 Closed Loop Stepper Motor E Series1.8 Deg 3.0 Nm 5.0A  2 Phase with Encoder 1000CPR
NO.:24HE34-5004D-E1000
Post a review
Our Price:$42.41
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $40.29 5%
10 $39.44 7%
50 $38.17 10%
100 $36.90 13%
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 24HE34-5004D-E1000
  • Number of phase: 2
  • Step Angle: 1.8 deg
  • Holding Torque: 3.0 Nm(424.92oz.in)
  • Rated Current/phase: 5.0 A
  • Phase Resistance: 0.45 ohms± 10%
  • Inductance: 1.8 mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 60 x 60 mm
  • Body Length: 86 mm
  • Shaft Diameter: Φ10 mm
  • Shaft Length: 21 mm
  • D-CUT Shaft Length: 15 mm
  • Lead Length: 300 mm
  • Weight: 1.52 kg

Encoder Specification

  • Driving Voltage : 5V
  • Output current : 55mA
  • Resolution : 1000ppr
  • Output Signal : 2 Channels
  • Bore Diameter : Φ8mm
  • Output Frequency : ≤1MHz
  • Running Speed : ≤5000rpm
  • IP Protection : IP20

Connection

A+
A-
B+
B-
WHT
GRN
BLU
BLK



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 Closed-loop Geared Stepper Bipolar L=60mm 1.8 Deg 0.65Nm 3.36V with 5:1 Encoder 1000CPR
Next: Nema 17 Closed-loop Geared Stepper Motor L=60mm 1.8 Deg 2.10A 3.36V with 51:1 Planetary Gearbox & Encoder 1000CPR
Motor Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 300
Holding Torque (oz.in) 424.92
Inductance(mH) 1.8
Lead Length(mm) 300
Motor Nema Size Nema 24
No. of Lead 4
Phase Resistance(ohm) 0.45
Rated Current (A) 5
Shaft Diameter(mm) 10
Shaft Length(mm) 21
Step Angle(°) 1.8
Encoder Specification
Output Current(mA) 55
Output Frequency ≤1MHz
Rated Voltage(V) 5
Resolution(CPR) 1000
Output Signal Channels 2 Channels
