Description
IP65-rated linear actuator with thrust capacities from 100 kg to 1000 kg (220–2204 lb). Constructed with an aluminum alloy body, it operates in temperatures from –20 ℃ to +65 ℃. Designed for applications including rehabilitation beds, TV lifts, massage chairs, and industrial automation.


Features:

Provides thrust options from 100 kg to 1000 kg.

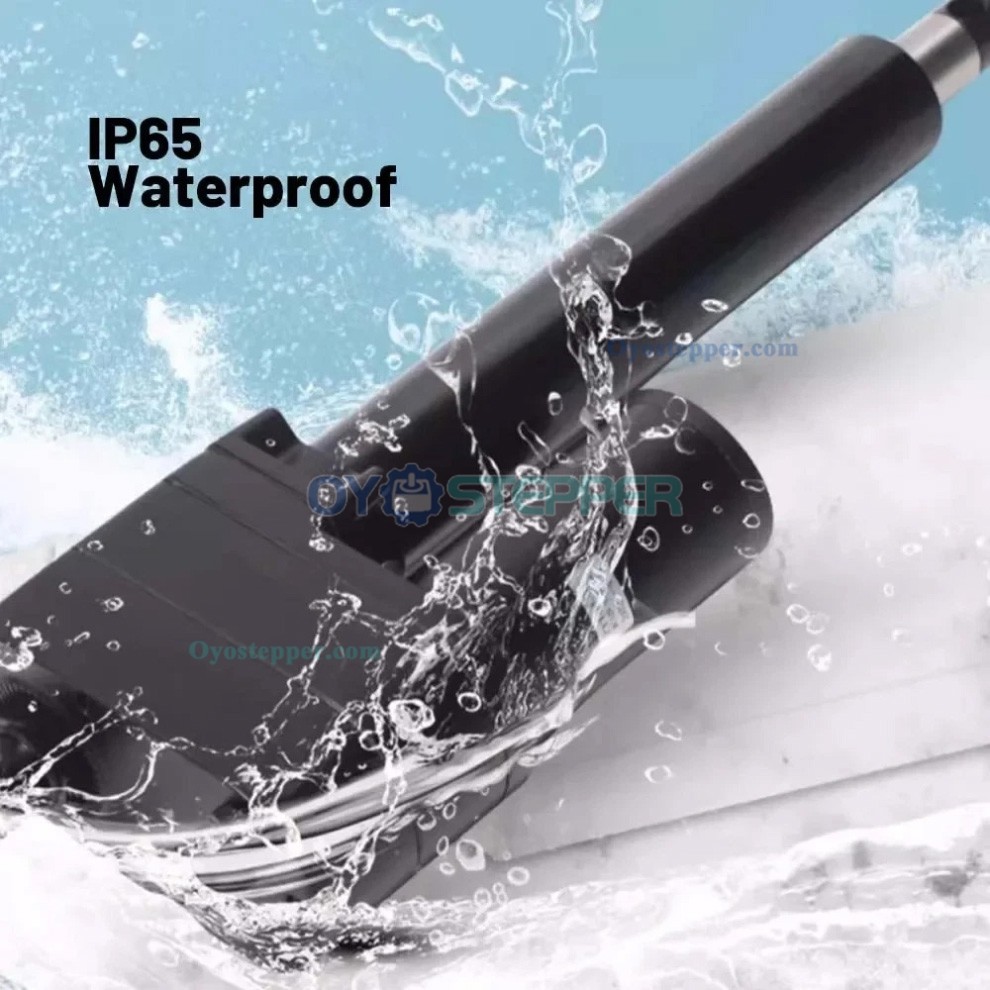

IP65-rated enclosure.

Designed to operate at ≤35 dB under typical load.

Temperature Range:Rated for use from –20 ℃ to +65 ℃.

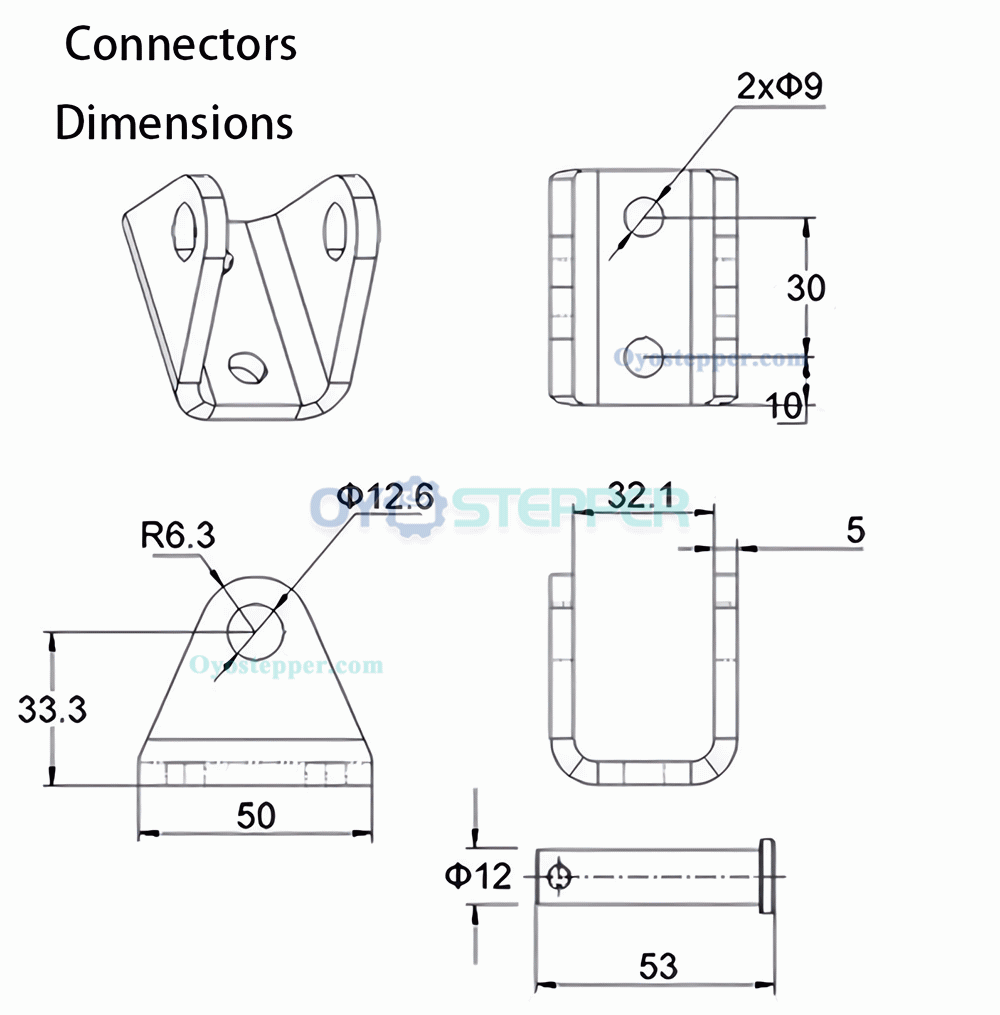

Included Mounting Hardware:Supplied with two U-shaped installation brackets.


Specifications
Voltage: DC 12 V / DC 24 V
Thrust Range: 100 kg – 1000 kg (220 lb – 2204 lb)

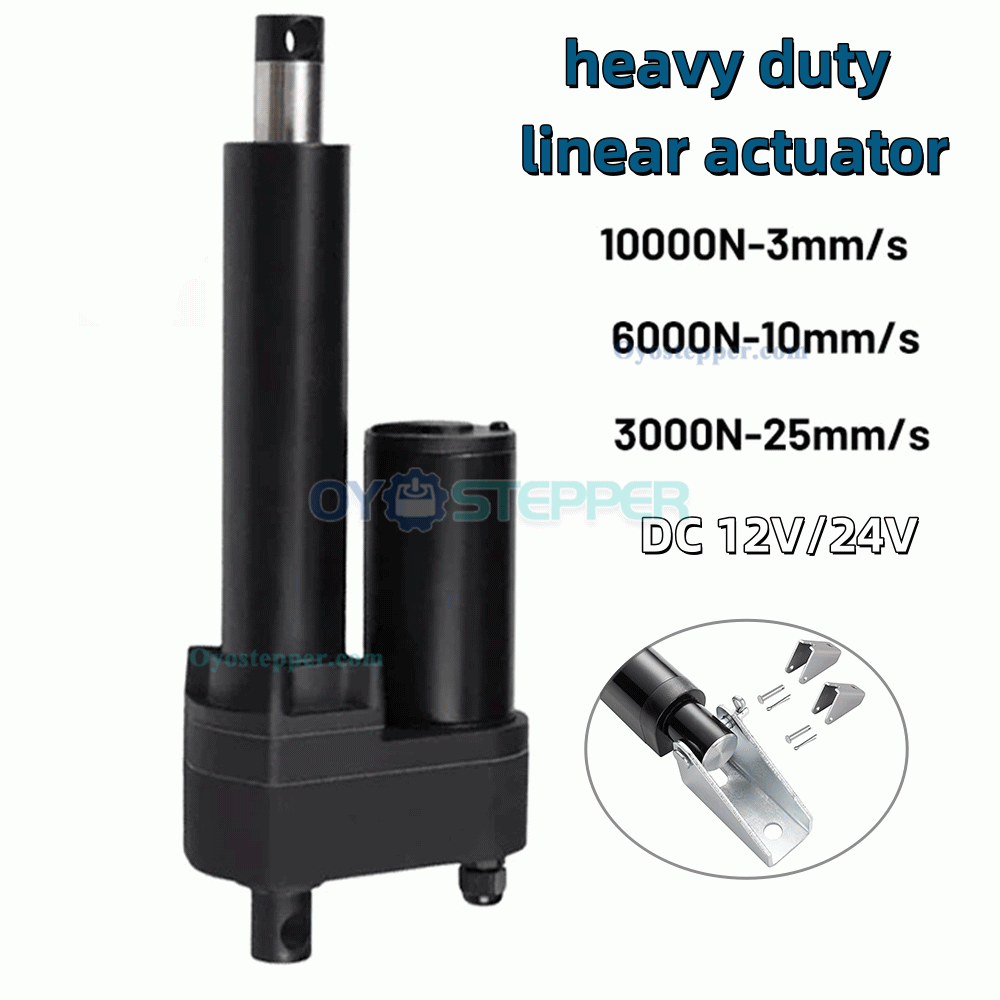

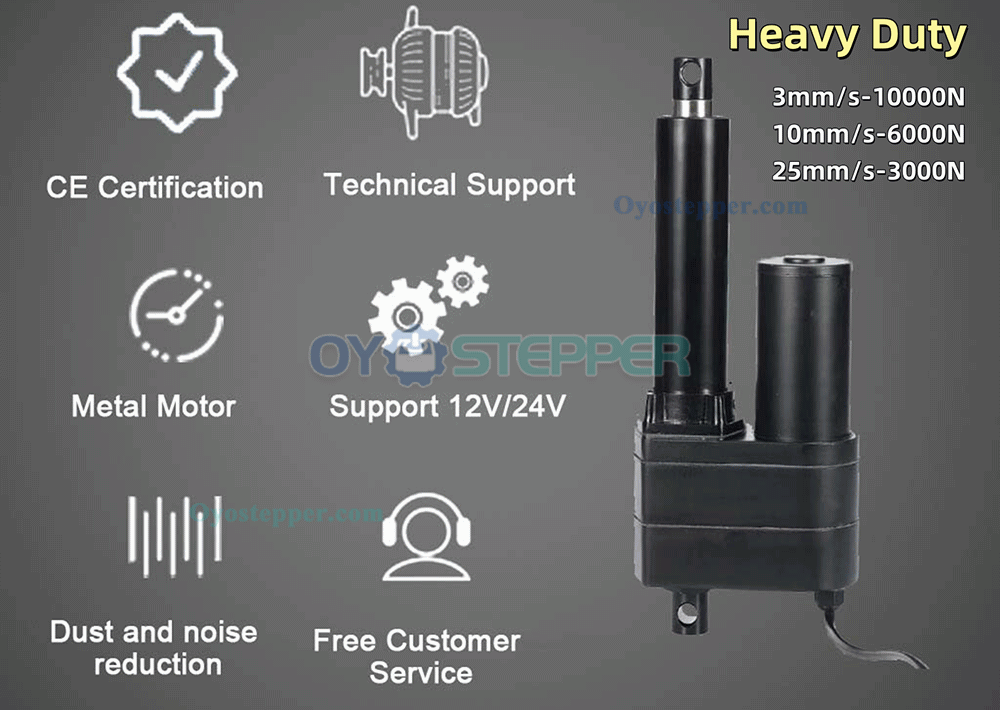

No-Load Speed (typical):
– 3 mm/s (max thrust ≈10,000 N)
– 10 mm/s (max thrust ≈6,000 N)
– 25 mm/s (max thrust ≈3,000 N)


Package Includes
1 × IP65 Waterproof Linear Actuator

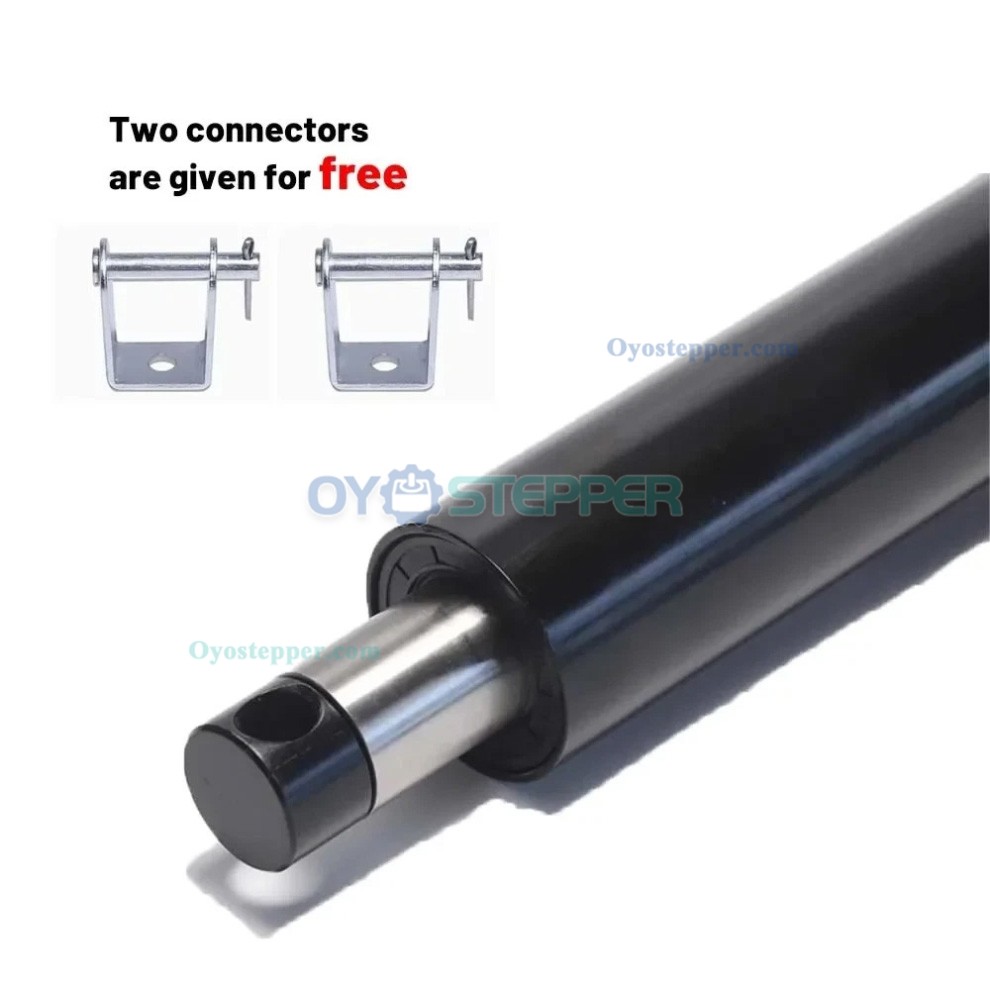

2 × U-Shaped Installation Brackets
