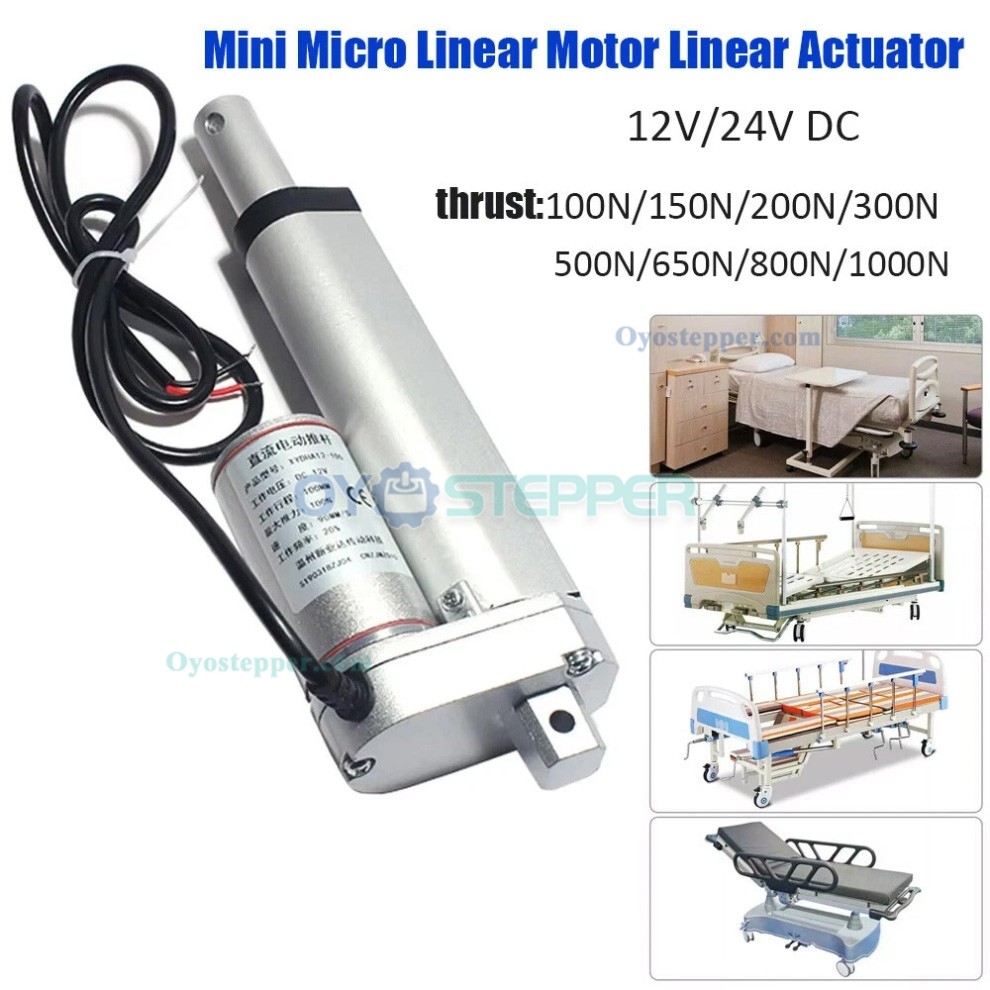

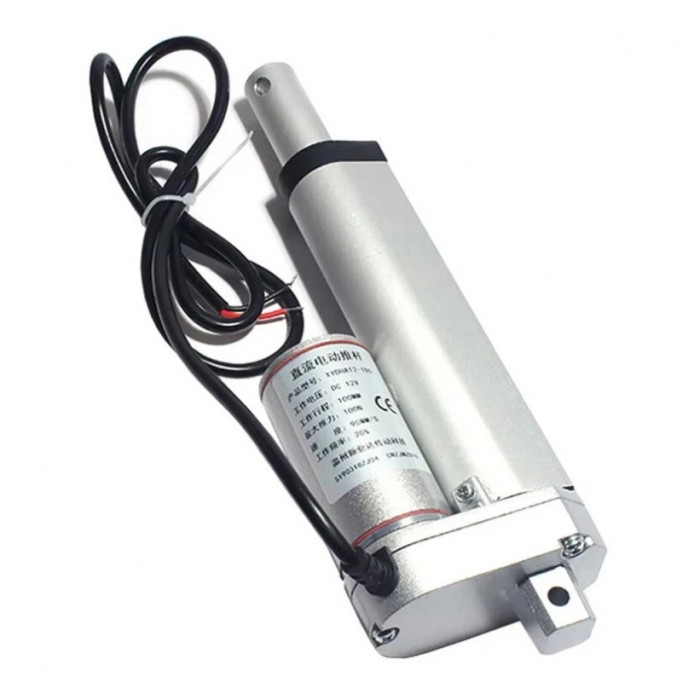

Mini Electric Linear Motor Linear Actuator 12V/24V 50-1000mm Speed 90mm/s

Mini Electric Linear Motor Linear Actuator 12V/24V 50-1000mm Speed 90mm/s

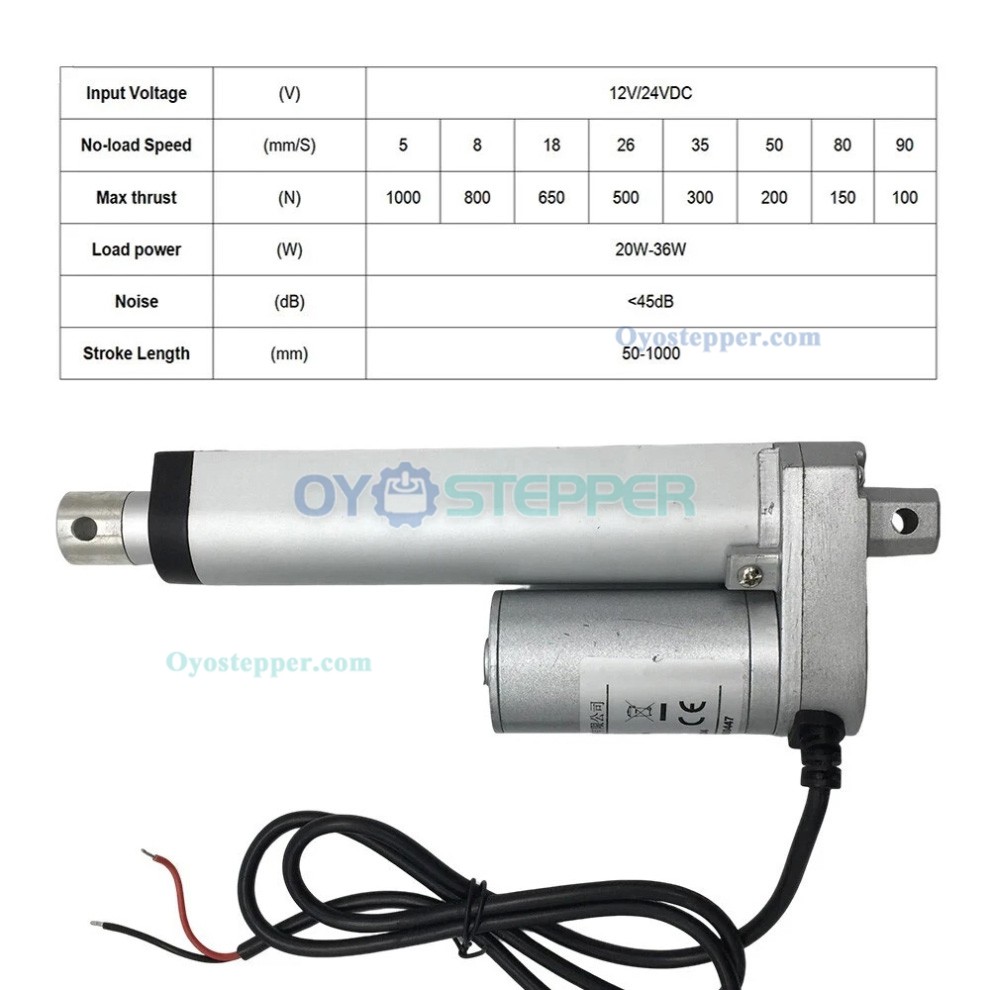

Speed, Thrust & Load Model:
5mm/s-1000N-100kg
8mm/s-800N-80kg
18mm/s-650N-65kg
26mm/s-500N-50kg
35mm/s-300N-30kg
50mm/s-200N-20kg
80mm/s-150N-15kg
90mm/s-100N-10kg

Specification:
Working Principle: Extension/retraction controlled by motor polarity; reversing polarity changes motion direction.
Voltage: DC 12V/24V (customizable: DC 36V, DC 48V).
Load Power: 20–36 W
Operating Temperature: −20 °C to +75 °C

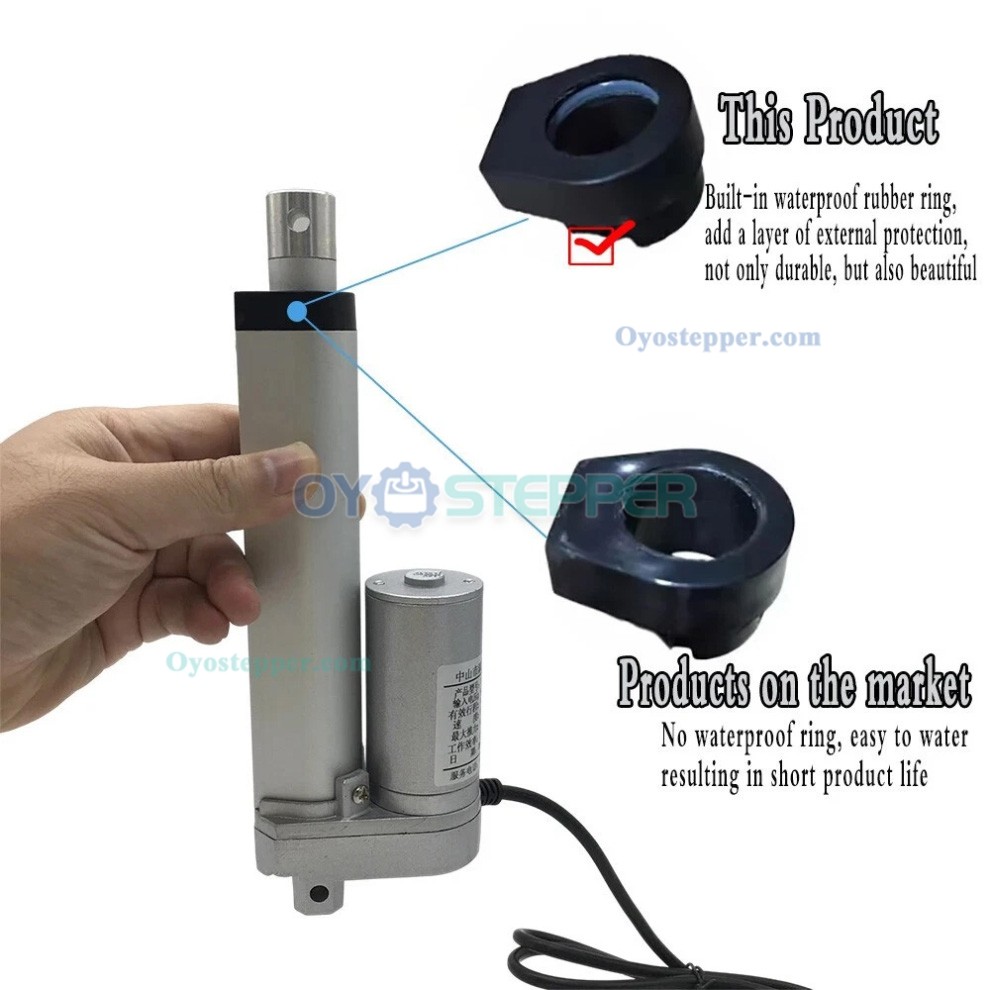

Ingress Protection: IP54
Noise: <35 dB
Warranty: 1 year.

Applications:
TV lift tables, lift frames, massage chairs, automotive mechanisms, automation equipment, electric sofas, smart-home systems.

Package:
1 × Linear Actuator Motor
