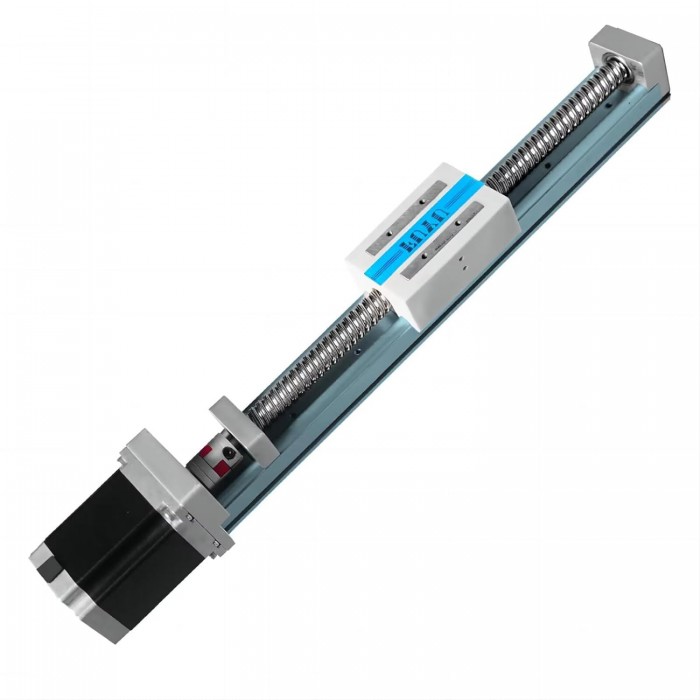

FSK40J Linear Guide Linear Module Ball Screw for CNC Linear Stage with Nema 23 Stepper Motor

FSK40J Linear Guide Linear Module Ball Screw for CNC Linear Stage with Nema 23 Stepper Motor
NO.:FSK40J
Post a review
Our Price:$107.10

Quantity:- +

Add To Cart

Linear Guide Linear Module Ball Screw for CNC Linear Stage FSK40J 50-1000mm with Nema 23 Stepper Motor



Feature:

The linear guide embedded with new materials,Use the G1610 ball screw, the effective itinerary is long, which can reach 1000mm,Repeated Position Accuracy ±0.02mm.

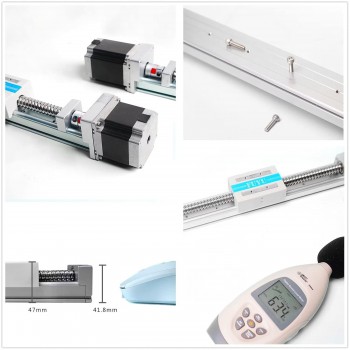

Smaller, Thinner, Stronger.The highest position of the linear guide is 47mm.Suitable for tight space applications.Horizontally loadable:20kg,Horizontal Full Load Speed:200mm/s.

Assembling linear guide upside down is fine too.Support flip load 10KG,Meet the needs of special application scenarios.The sliding seat and base are upgraded with M5 screw holes,Make installation easier,Higher locking strength.

Linear module special made nema 23 stepper motor with max speed up to 1200r/min,Low noise, empty load <65dB, and low -frequency noise.



Specifications:

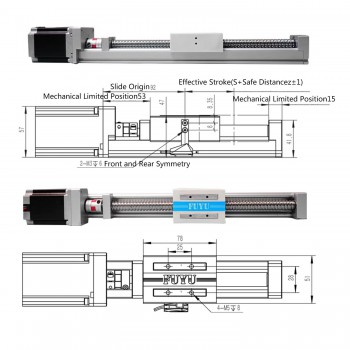

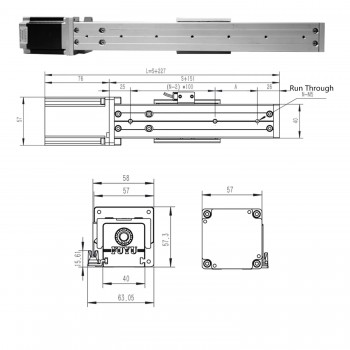

FSK40j Linear Guide Dimension & Performance

Defalut Stepper Motor Nema 23

Linear Ball Screw Model: G1610

Linear Guide Position Accuracy: ±0.02mm

Effective Stroke: 50-1000mm

Linear Guide Total Length:Stroke+227mm

Nema 23 Motor Parameter

Step angle:1.8°

Motor flange size: 57mm

Motor length: 56mm

Holding torque: 0.95 N.m

Current: 2.0A

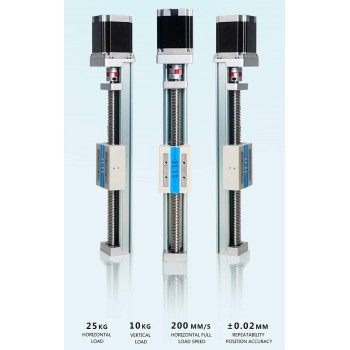

Wear-resistant and Durable Structure:

Max Horizontal Load Capacity:20kg/44.09Ib

Max Vertical Load Capacity:10kg/22.05lb

Max Side Mounted Load Capacity:5kg/11.02lb

Max Inversion Mounted Load Capacity:10kg/22.05lb

Max Horizontal Speed:200mm/s(7.87 inch/s)

Max Vertical Speed:100mm/s(3.94 inch/s)

Max Side Mounted Speed:100mm/s(3.94 inch/s)

Max Inversion Mounted Speed:200mm/s(7.87 inch/s);



FSK40J Linear Guide Linear Module Ball Screw for CNC Linear Stage with Nema 23 Stepper Motor

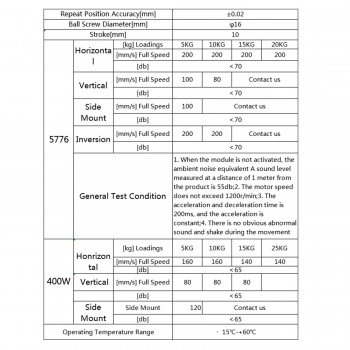

TECHNICAL PARAMETER

FSK40J Linear Guide Linear Module Ball Screw for CNC Linear Stage with Nema 23 Stepper Motor
