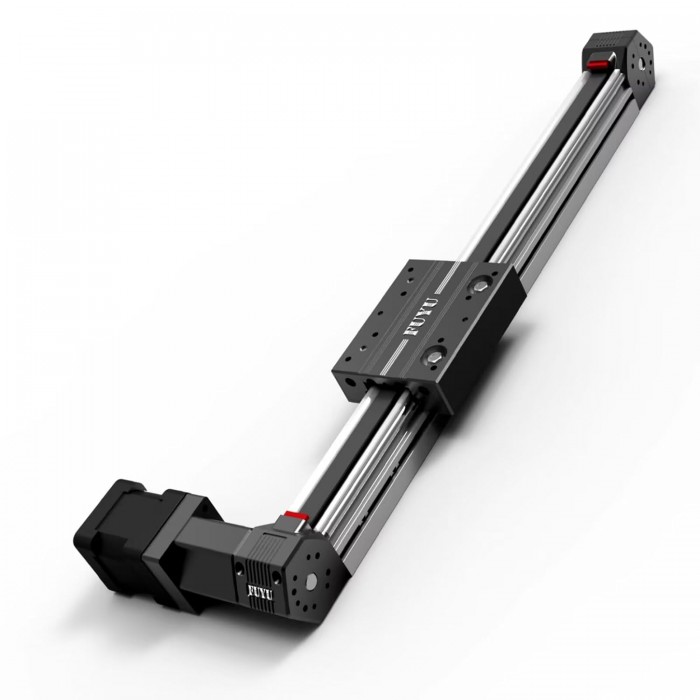

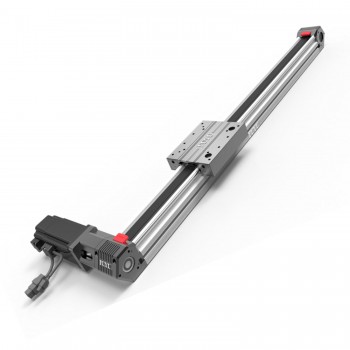

FPB30 Linear Guide Belt Drive Linear Module Linear Stage with Nema 17 Stepper Motor CNC

FPB30 Linear Guide Belt Drive Linear Module Linear Stage with Nema 17 Stepper Motor CNC
NO.:FPB30
Review: Post a review
Our Price:$225.85

Quantity:- +

Add To Cart
Add To My Favorites
  • Share:

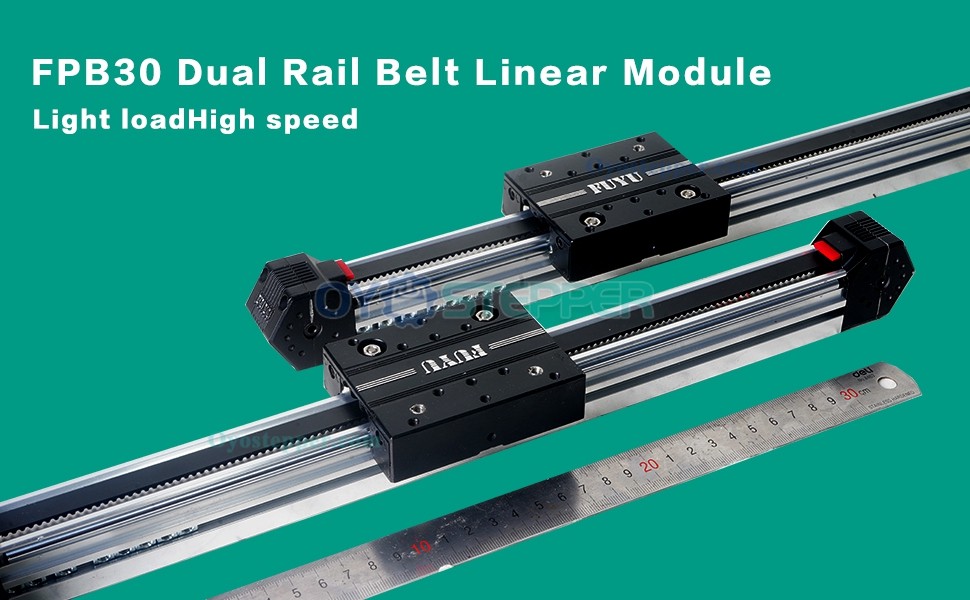

Linear Guide Linear Module Linear Stage Belt Drive FPB30 with Nema 17 Stepper Motor for CNC



Specifications:

Body width: 30 mm aluminum profile;

Operation speed: up to 1000 mm/s;

Noise level: ≤65 dB;

Load capacity:

Horizontal: 8 kg;

Vertical: 5 kg;

Side mounted: 7 kg;

Flip load: 8 kg;

Stroke: up to 3500 mm;

Standard motor: NEMA 17 stepper motor.



FPB30 Linear Guide Belt Drive Linear Module Linear Stage with Nema 17 Stepper Motor CNC

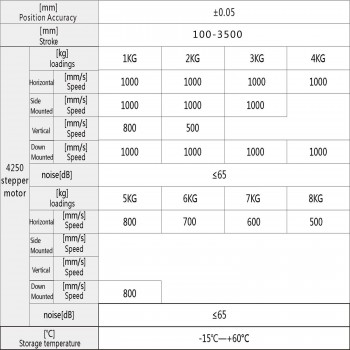

TECHNICAL PARAMETER

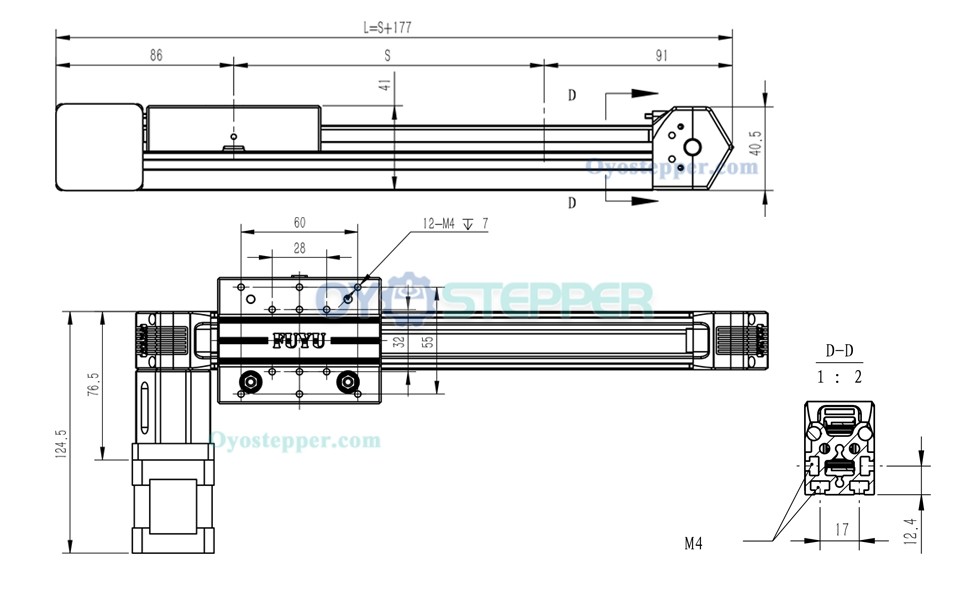

FPB30 Linear Guide Belt Drive Linear Module Linear Stage with Nema 17 Stepper Motor CNC

Prev: FPB60 Linear Guide Belt Drive Linear Stage Table with Nema 24 Stepper Motor for CNC
Next: 2Pcs FSK30J Mini Linear Rail Linear Guide Ball Screw Linear Actuator with Nema 11 Stepper Motor

Ebrahim – 24 Mar 2026

Greetings!

I want to purchase this item. Do you guys send goods to Mozambique? And how long it takes on average?

Administrator : Dear friend,
We can ship to your country. It will take 5-11 working days. If you have any other question, please feel free to contact us. Thanks
