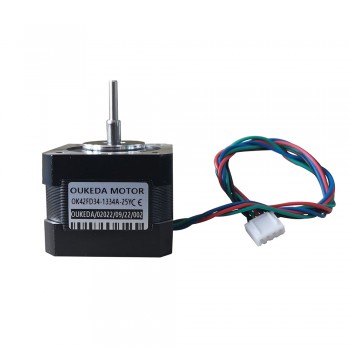

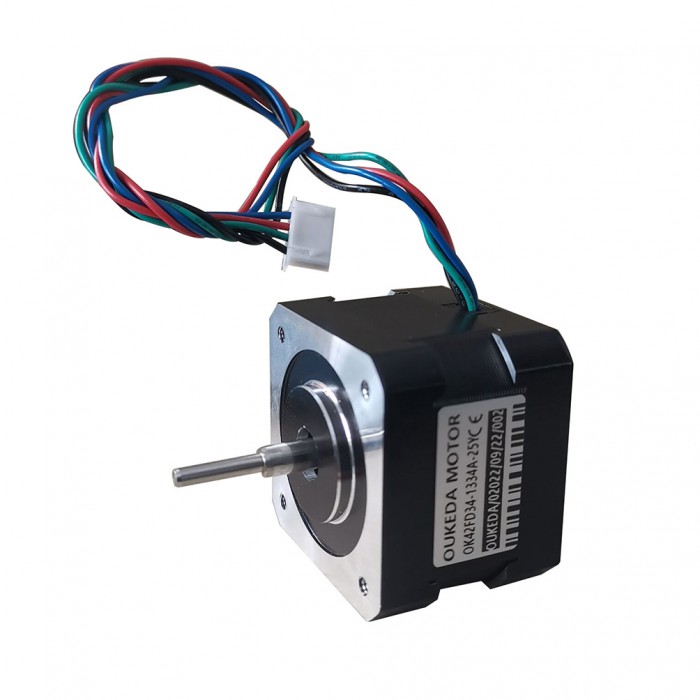

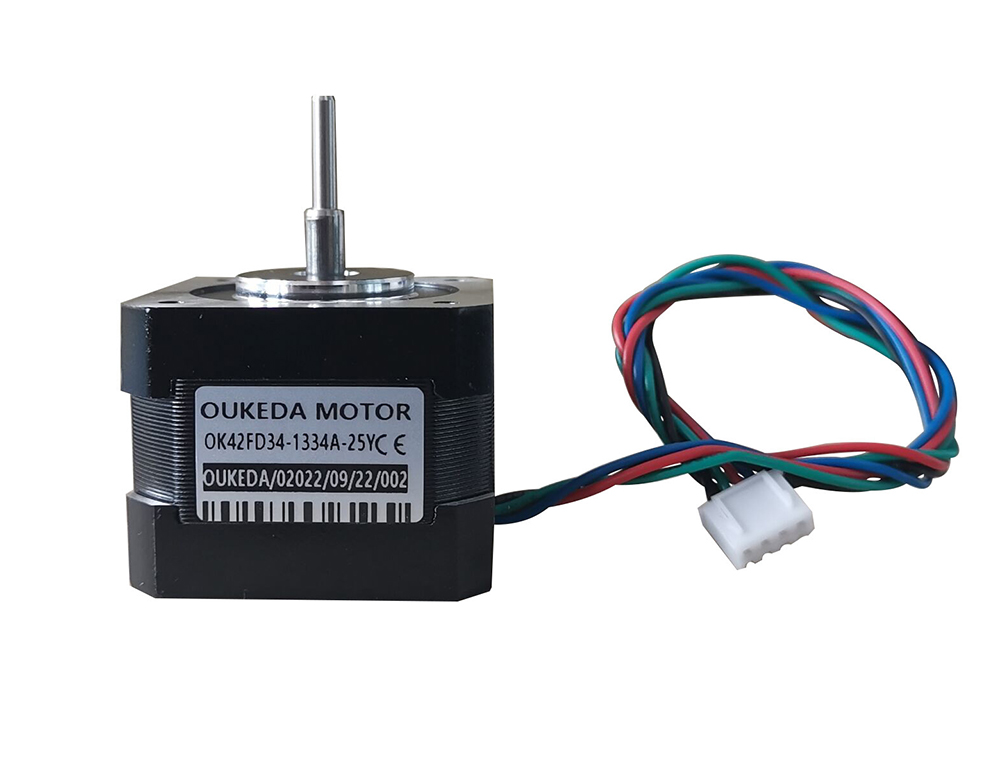

Oukeda Nema 17 Stepper Motor 32Ncm 1.8 Deg 2 Phases 42 × 42mm 4 Wires
-
Manuals and Documentation:
Oukeda Nema 17 Stepper Motor 32Ncm 1.8 Deg 2 Phases 42 × 42mm 4 Wires
Electrical Specifications:
Rated Voltage: 3.6V DC
Rated Current: 1.33A/Phase
Step Angle: 1.8° ±5%
Number of Phases: 2
Phase Resistance: 2.7 Ω ±10% (at 20°C)
Phase Inductance: 4.2 mH ±20%
Holding Torque:32Ncm (45.32 oz·in)
Insulation Resistance: ≥100 MΩ (500 V DC)
Operating Temperature: -20°C to +50°C
Operating Humidity: 15%–95% RH
Recommended Driver Supply Voltage: 12–36 V DC
Recommended Driver: OK2D4020A

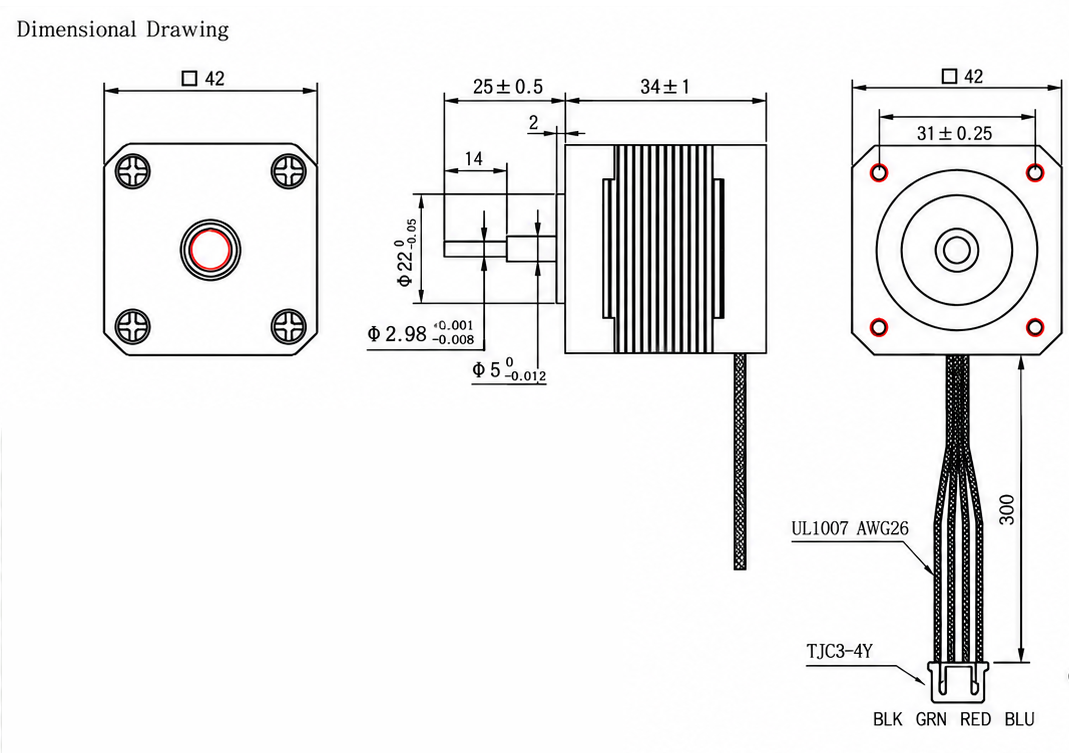

Mechanical Specifications:
Model: OK42FD34-1334A-25Y
Frame Size: 42 × 42 mm
Motor Body Length: 34 ±1 mm
Shaft Diameter: 2.98 mm (Tip) / 5 mm (Base)
Shaft Length: 25 ±0.5 mm
Shaft Tip Length: 14 mm
Shaft Type: Round Shaft
Mounting Hole Spacing: 31 ±0.25 mm
Mounting Holes: 4 (Thread Size Not Specified)
Pilot Diameter: 22 mm (0/-0.05 mm)
Pilot Height: 2 mm
Motor Weight: Approx. 0.2 kg
Number of Wires: 4
Cable Length: 300 mm
Wire Specification: UL1007 26 AWG
Connector Type: TJC3-4Y
.jpg)
| Electrical Specification | |
|---|---|
| Holding Torque (Ncm) | 32 |
| Inductance(mH) | 4.2 |
| Phase Resistance(ohm) | 2.7 |
| Rated Current (A) | 1.33 |
| Step Angle(°) | 1.8 |
| No. of Phase | 2 |
| Physical Specification | |
| Body Length(mm) | 34 |
| Frame Size(mm) | 42 × 42 |
| No. of Lead | 4 |
| Shaft Diameter(mm) | 2.98 |
| Shaft Length(mm) | 25 |
| Shaft Type | O |
| Single Shaft/Dual Shaft | Single Shaft |
