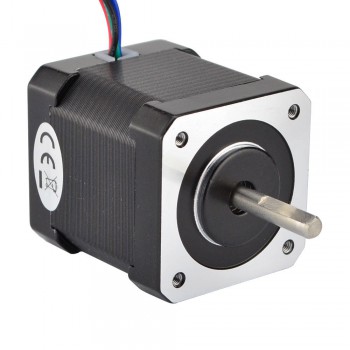

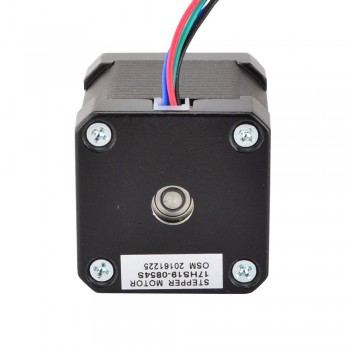

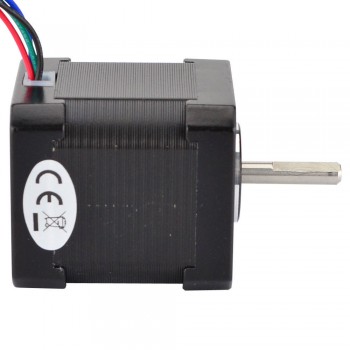

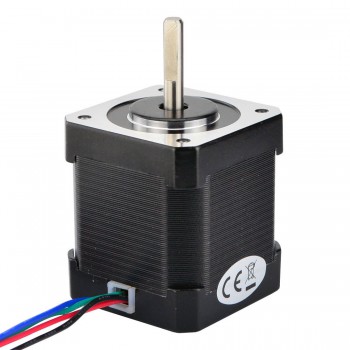

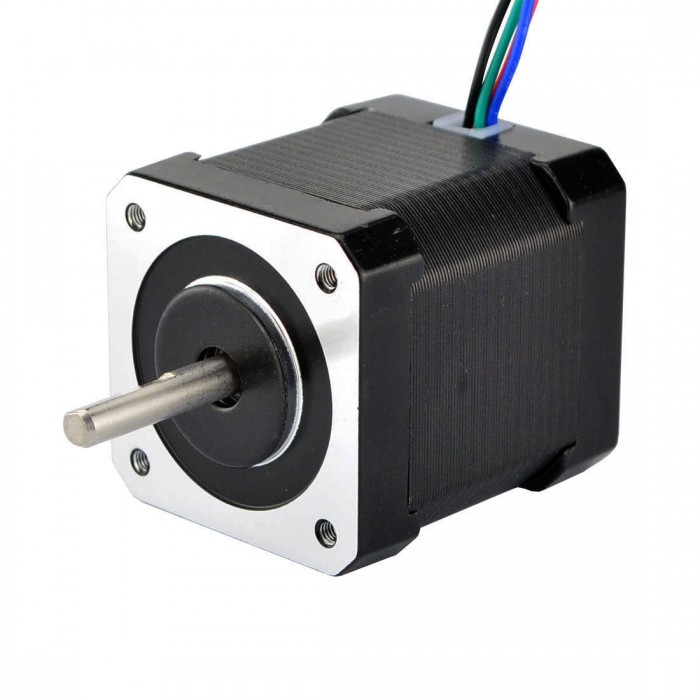

Nema 17 Stepper Motor Bipolar 1.8 Deg 44Ncm (62.3oz.in) 0.85A 5.3V 42x42x48mm 4 Wires

Nema 17 Stepper Motor Bipolar 1.8 Deg 44Ncm (62.3oz.in) 0.85A 5.3V 42x42x48mm 4 Wires
NO.:17HS19-0854S
Post a review
Special Offer in October 2024:
  • $10 Off Over $150
  • $20 Off Over $300
  • $35 Off Over $500
  • $55 Off Over $800
  • $70 Off Over $1000
  • $100 Off Over $1500
  • Enjoy Discount at Checkout!
  • Valid Till October 15th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$14.30
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $13.59 5%
30 $13.30 7%
50 $12.87 10%
100 $12.44 13%
Add To Cart

This bipolar Nema 17 stepper motor with step angle 1.8deg and size 42x42x48mm. It has 4 wires, each phase draws current 0.85A at 5.3V, with holding torque 44Ncm (62.3oz.in).

Electrical Specification

Manufacturer Part Number: 17HS19-0854S

Motor Type: Bipolar Stepper

Step Angle: 1.8 deg

Holding Torque: 44Ncm(62.3oz.in)

Rated Current/phase: 0.85A

Voltage: 5.3V

Phase Resistance: 6.2ohms

Inductance: 11mH ± 20%(1KHz)



Physical Specification

Frame Size: 42 x 42mm

Body Length: 48mm

Shaft Diameter: Φ5mm

Shaft Length: 24mm

D-cut Length: 15mm

Number of Leads: 4

Lead Length: 500mm

Weight: 350g



Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Full Datasheet: 17HS19-0854S.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 Stepper Motor Unipolar 1.8 Deg 32Ncm (45.3oz.in) 0.4A 12V 42x42x48mm 6 Wires
Next: Nema 17 Stepper Motor Bipolar 1.8 Deg 45Ncm (64oz.in) 1.68A 2.8V 42x42x48mm 4 Wires
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 44
Holding Torque (oz.in) 62.3
Inductance(mH) 11
Phase Resistance(ohm) 6.2
Rated Current (A) 0.85
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 48
Frame Size(mm) 42x42
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Shaft Diameter(mm) 5
Shaft Length(mm) 24
No. of Lead 4
Lead Length(mm) 500
Weight(g) 350
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.
