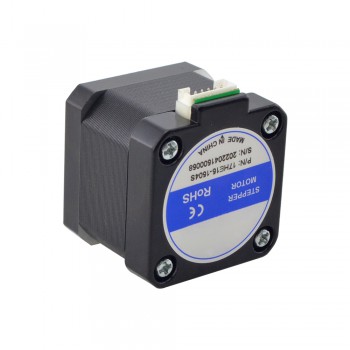

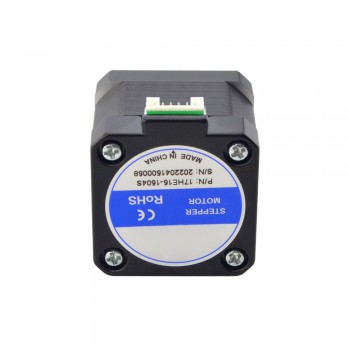

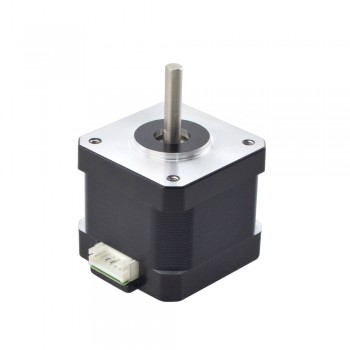

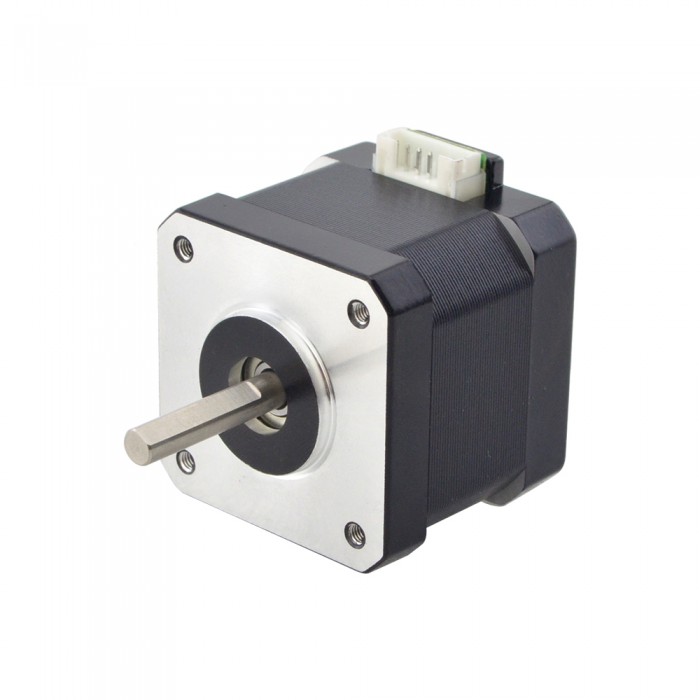

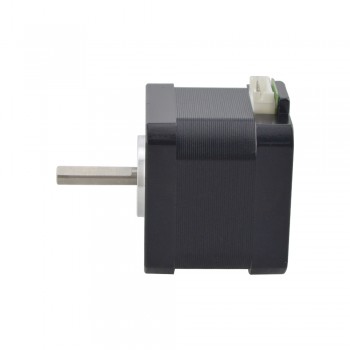

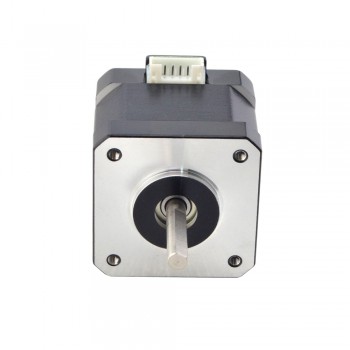

E Series Nema 17 Stepper Motor 1.8 Deg 42Ncm (59.49oz.in) 1.5A 42x42x38mm 4 Wires Bipolar Hybrid Stepper Motor

E Series Nema 17 Stepper Motor 1.8 Deg 42Ncm (59.49oz.in) 1.5A 42x42x38mm 4 Wires Bipolar Hybrid Stepper Motor
NO.:17HE15-1504S
Post a review
Special Offer in Black Friday 2026:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till December 3th, 2026
  • Note:No coupon code needed, please place order directly!
Our Price:$11.93
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $11.33 5%
10 $11.21 6%
50 $11.09 7%
100 $10.98 8%
Add To Cart
  • Share:

E Series Nema 17 Stepper Motor 1.8 Deg 42Ncm (59.49oz.in) 1.5A 42x42x38mm 4 Wires Bipolar Hybrid Stepper Motor

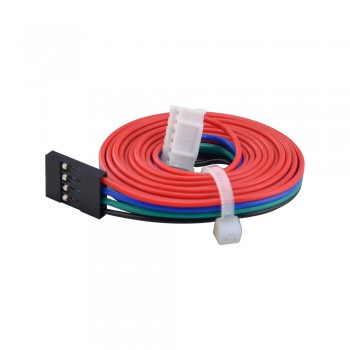

This NEMA 17 bipolar stepper (17HE15-1504S) holds 42 Ncm at 1.5 A, features a 1.8° step angle and D-cut shaft, and includes a 4-lead, 1 m cable.



Electrical Specification

Manufacturer Part Number: 17HE15-1504S

Motor Type: Bipolar Stepper

Step Angle: 1.8 Deg

Holding Torque: 42Ncm(59.49oz.in)

Rated Current/phase: 1.50A

Phase Resistance: 2.3ohms

Inductance: 4.0mH ± 20%(1KHz)



Physical Specification

Frame Size: 42 x 42mm

Body Length: 38mm

Shaft Diameter: Φ5mm

D-cut Length: 20mm

Shaft Length: 23.5mm

Number of Leads: 4

Lead Length: 1000mm

Weight: 280g



Connection

A+ A- B+ B-
Black Blue Green Red
Prev: E Series Nema 23 Stepper Motor Bipolar 4 Wires 1.8 Degree 3.0 Nm(425oz.in) 4.2A 57x57x113mm
Next: Nema 23 Stepper Motor 2 Phase 2.4Nm(339.79oz.in) 4A 57x57x82mm 4 Wires 15mm D-cut Shaft
Physical Specification
Frame Size(mm) 42x42
Body Length(mm) 38
Lead Length(mm) 1000
No. of Lead 4
Shaft Diameter(mm) 5
Shaft Length(mm) 23.5
Single Shaft/Dual Shaft Single Shaft
Weight(g) 280
Output Shaft Type D-Cut
IP Rating 40
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 42
Holding Torque (oz.in) 59.49
Inductance(mH) 4.0
Phase Resistance(ohm) 2.3
Rated Current (A) 1.5
