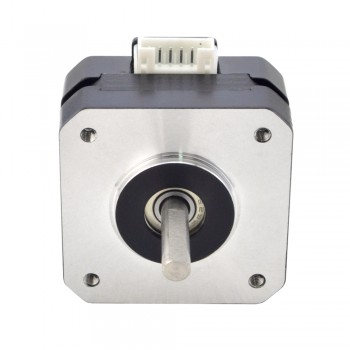

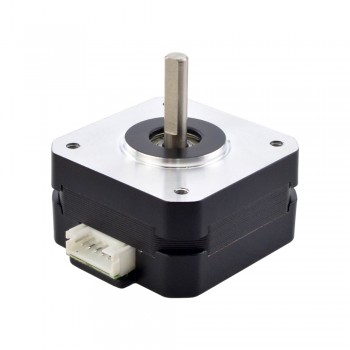

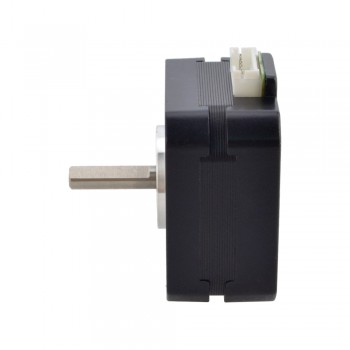

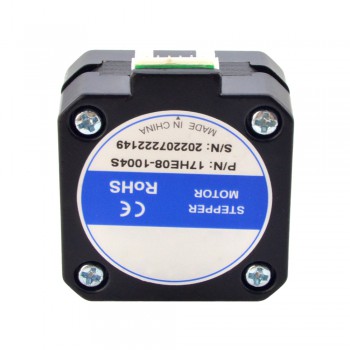

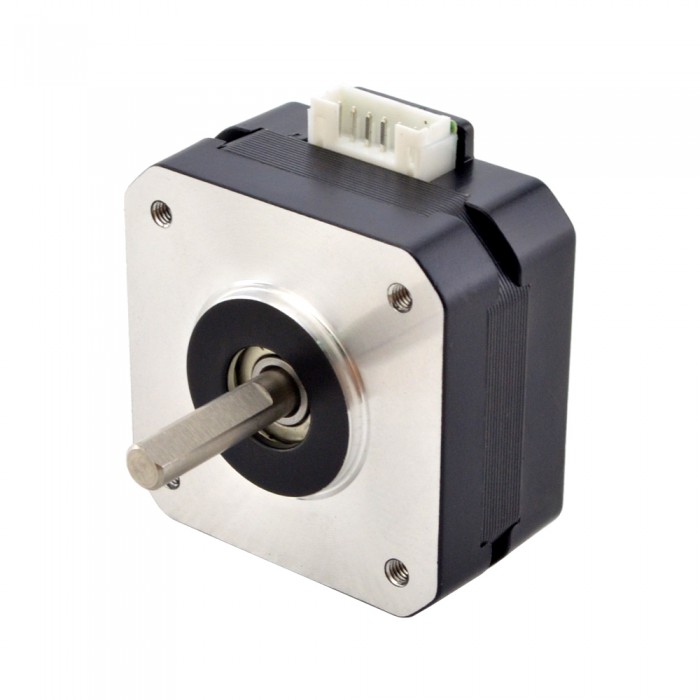

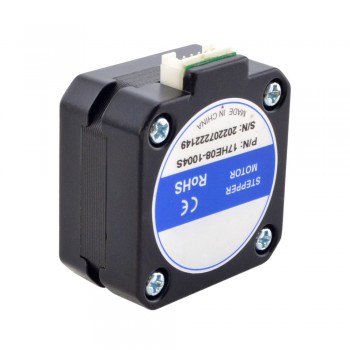

E Series Nema 17 Stepper Motor Bipolar 1.8deg 17Ncm(24.07oz.in)1A 42x42x20mm 4 Wires

E Series Nema 17 Stepper Motor Bipolar 1.8deg 17Ncm(24.07oz.in)1A 42x42x20mm 4 Wires
NO.:17HE08-1004S
Review: Post a review
Black Friday Special Offer 2022:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till November 30th, 2022
  • Note:No coupon code needed, please place order directly!
Latest price:$6.31
Buy It Now:$4.21
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $4.09 3%
10 $3.96 6%
50 $3.84 9%
100 $3.72 12%
Add To Cart

E Series Nema 17 Bipolar 1.8deg 17Ncm(24.07oz.in)1A 42x42x20mm 4 Wires



Electrical Specification

Manufacturer Part Number: 17HE08-1004S

Motor Type: Bipolar Stepper

Step Angle: 1.8deg

Holding Torque: 17Ncm(24.07oz.in)

Rated Current/phase: 1.0A

Phase Resistance: 3.6ohms

Inductance: 4.0mH ± 20%(1KHz)



Physical Specification

Frame Size: 42 x 42mm

Body Length: 23mm

Shaft Diameter: Φ5mm

Shaft Length: 20mm

D-cut Length: 17mm

Number of Leads: 4

Lead Length: 1000mm

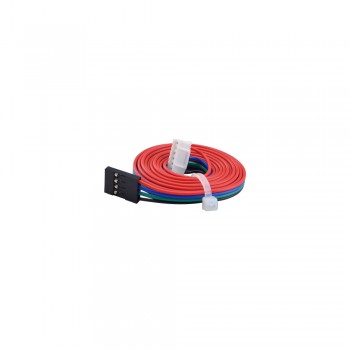

Connection



A+ A- B+ B-
Black Blue Green Red

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Stepper Motor Controller 2 Channels 1.0-5.6A 20-40VDC Adjustable Speed
Next: E Series Round Nema 14 Stepper Motor Bipolar 0.9deg 8Ncm (11.33oz.in) 1.0A 36x17mm 4 Wires
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 17
Holding Torque (oz.in) 24.07
Inductance(mH) 4.0
Rated Current (A) 1
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 23
Frame Size(mm) Nema 17 (42 x 42)
Lead Length(mm) 1000
No. of Lead 4
Shaft Diameter(mm) 5
Shaft Length(mm) 20
Single Shaft/Dual Shaft Single Shaft
Output Shaft Type D-Cut
  • Motor Shaft
  • Cable
  • Connector
  • Encoder
  • Brake
  • Gearbox
