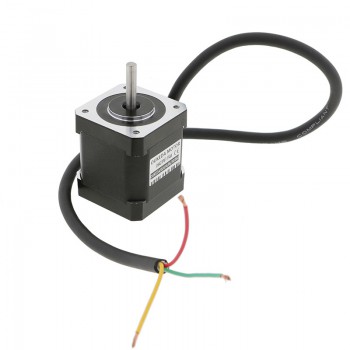

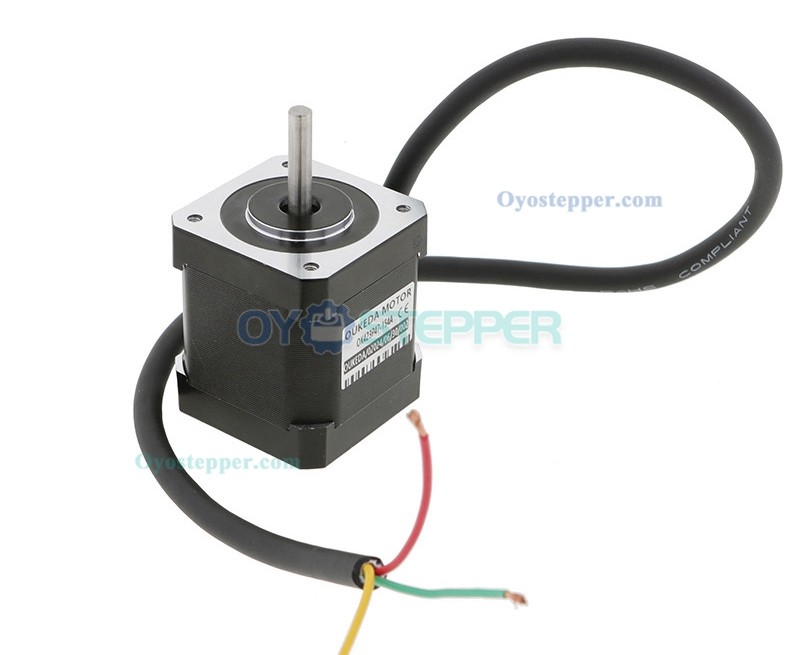

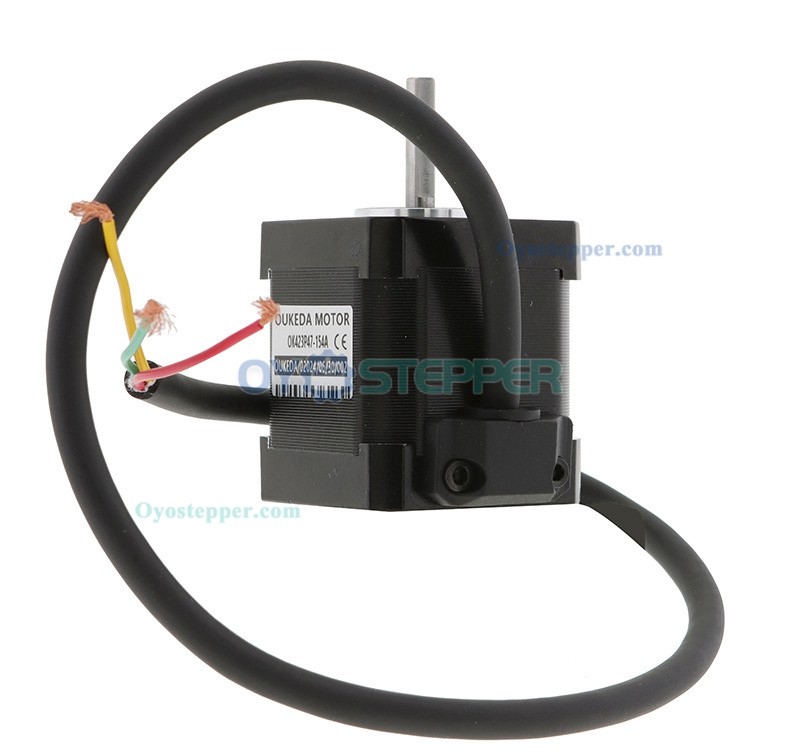

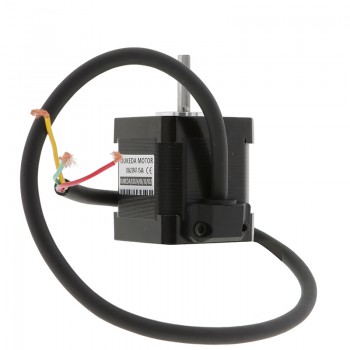

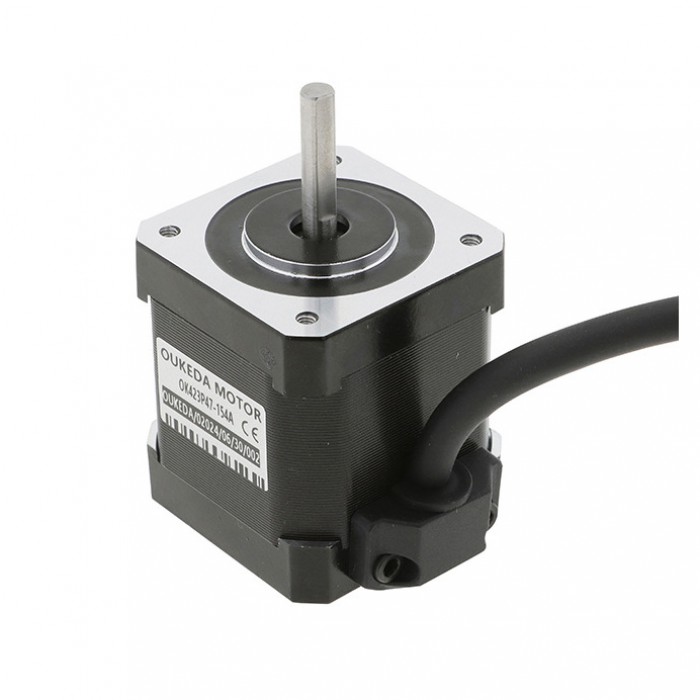

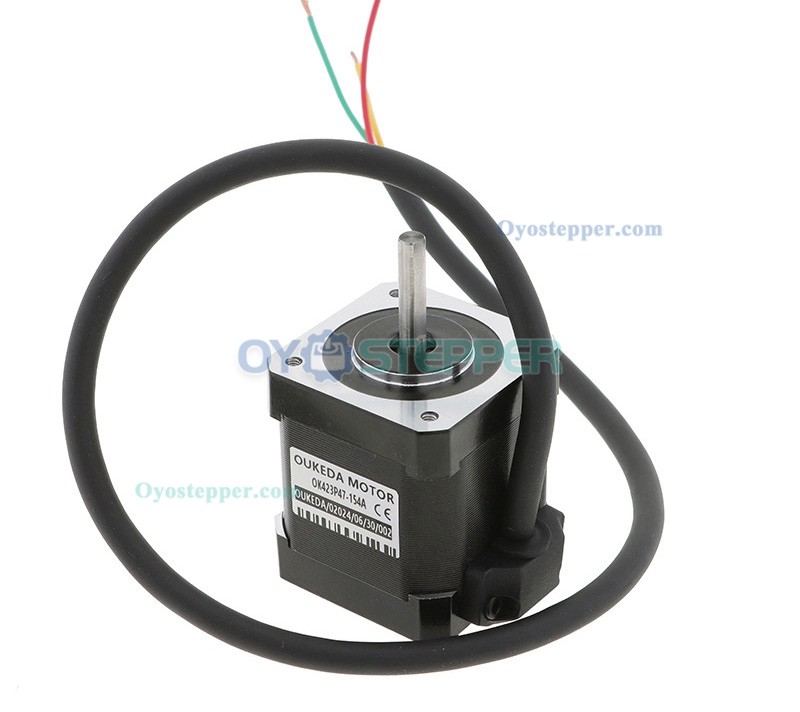

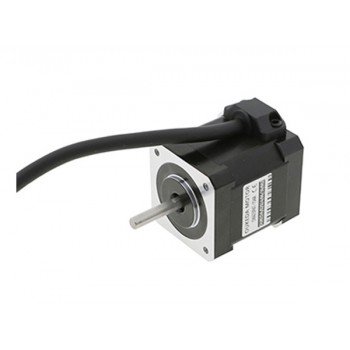

Oukeda NEMA 17 Stepper Motor 1.2 Deg 32Ncm 3 Phase 1.5A 5.4VDC D-cut 42X42mm

Oukeda NEMA 17 Stepper Motor 1.2 Deg 32Ncm 3 Phase 1.5A 5.4VDC D-cut 42X42mm
NO.:OK423P47-154A
Post a review
Our Price:$19.99
Quantity:- +

Add To Cart

Oukeda NEMA 17 Stepper Motor 1.2 Deg 32Ncm 3 Phase 1.5A 5.4VDC D-cut 42X42mm



Electrical Specification:
Manufacturer Part Number: OK423P47-154A
Number of phase:3
Motor Type: Bipolar
Output Shaft Type:D-cut
Step Angle: 1.2 deg
Holding Torque: 32Ncm
Rated Current: 1.5A
Phase Voltage: 5.4VDC
Phase Resistance: 3.6 ohms
Inductance: 7.0mH ± 20%(1KHz)

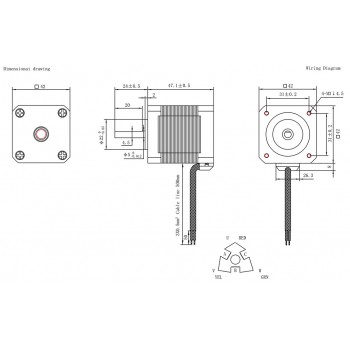

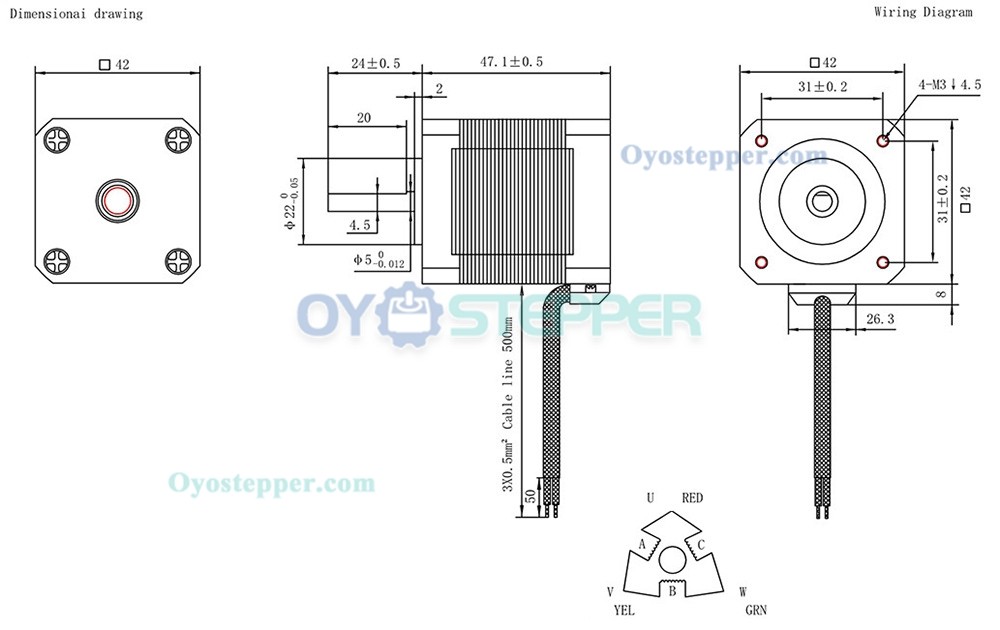

Physical Specification
Frame Size: 42 x 42mm
Body Length: 47.1mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-cut Length: 20mm
Number of Leads: 4
Lead Length: 500mm
Weight: 350g;

Oukeda NEMA 17 Stepper Motor 1.2 Deg 32Ncm 3 Phase 1.5A 5.4VDC D-cut 42X42mm



Oukeda NEMA 17 Stepper Motor 1.2 Deg 32Ncm 3 Phase 1.5A 5.4VDC D-cut 42X42mm

Oukeda NEMA 17 Stepper Motor 1.2 Deg 32Ncm 3 Phase 1.5A 5.4VDC D-cut 42X42mm



Oukeda NEMA 17 Stepper Motor 1.2 Deg 32Ncm 3 Phase 1.5A 5.4VDC D-cut 42X42mm

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Oukeda 17HS4401 NEMA 17 Stepper Motor 1.8 Deg 45Ncm 2 Phase for 3D Printer Robotics 42X42mm
Next: Oukeda TB6600 Motor Driver Controller 2 Phase 9-40VDC 4A for NEMA 17, 23, 24 Stepper Motor
Physical Specification
Frame Size(mm) 42x42
Body Length(mm) 47.1
Lead Length(mm) 500
No. of Lead 4
Shaft Diameter(mm) 5
Shaft Length(mm) 24
Shaft Type D-cut
Single Shaft/Dual Shaft Single Shaft
Weight(g) 350
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 32
Phase Resistance(ohm) 3.6
Step Angle(°) 1.2
No. of Phase 3
Rated Voltage(V) 5.4VDC
Current(A) 1.5A
Open-loop/Closed-loop Open-loop
