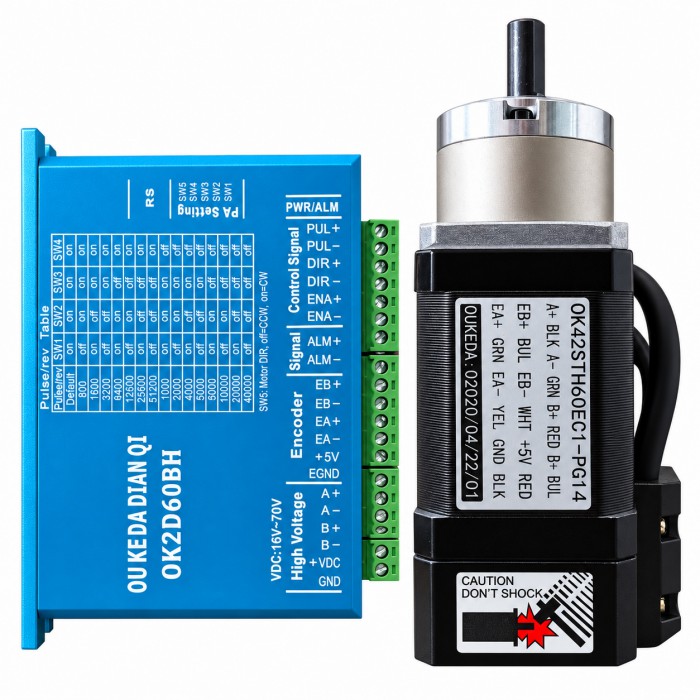

OUKEDA NEMA 17 Closed Loop Stepper Motor & Driver Kit 70Ncm 1.8° 1.8A with Encoder and Planetary Gearbox

OUKEDA NEMA 17 Closed Loop Stepper Motor & Driver Kit 70Ncm 1.8° 1.8A with Encoder and Planetary Gearbox

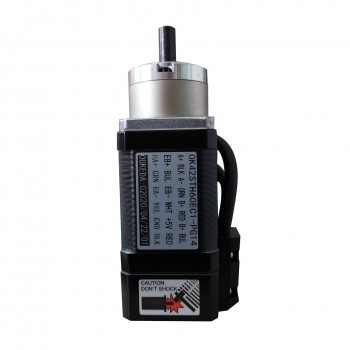

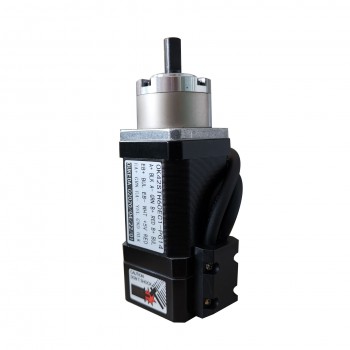

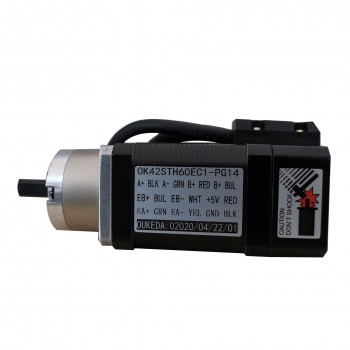

OUKEDA NEMA 17 Closed Loop Stepper Motor 70Ncm 1.8° 1.8A with Encoder and Planetary Gearbox


Electrical Specifications

Model: OK42STH60EC-1000

Phase:2-Phase

Step Angle: 1.8°±5%

Holding Torque (Motor): 70Ncm

Rated Current/Phase: 1.8A

Rated Voltage: 3.3VDC

Phase Resistance: 1.85Ω±10%

Phase Inductance: 5.2mH±20%

Insulation Resistance: 100MΩ (500VDC)

Insulation Class: Class B;


Physical Specifications

Frame Size: 42×42mm (NEMA17)

Motor Body Length: 60mm

D-cut Lenght:21mm

Motor Shaft Diameter: Φ5mm

Motor Shaft Length: 24±0.5mm

Mounting Hole Spacing: 31±0.25mm

Motor Cable Length: 1000mm

Encoder Cable Length: 1000mm

Motor Weight: Approx.0.4kg

Operating Temperature: -10°C to +50°C


Encoder Specifications:

Encoder Supply Voltage: 5VDC

Encoder Output Signals: A+, A-, B+, B-

Encoder Cable: 6-Wire;

Closed Loop Stepper Driver 0~5.6A 16~70VDC for Nema 23, Nema 24 Stepper Motor

Features:

Closed-loop control

32-bit motor control dual-core DSP

Vector current, speed, and position closed-loop control

1000-line encoder

Optocoupler isolated differential signal input

200kHz max pulse input frequency

16 micro-step resolutions: 800–51,200

Automatic static/dynamic current ratio adjustment

Overcurrent, overvoltage, overspeed, overheating, and excessive tracking error protection

Specifications:

Model: OK2D60BH

Output peak current: 0–5.6A

Input voltage: +16–70VDC (typical 36VDC)

Logic signal current: 7–16mA (typical 10mA)

Pulse input frequency: 0–200kHz

Encoder current: 50mA

Isolation resistance: 500MΩ

Weight: 280g

Operating Environment:

Cooling: Natural or forced

Ambient temperature: 0°C to 50°C

Humidity: 40%RH to 90%RH

Operating temperature: 70°C max

Vibration: 5.9m/s² max

Storage temperature: –20°C to +80°C

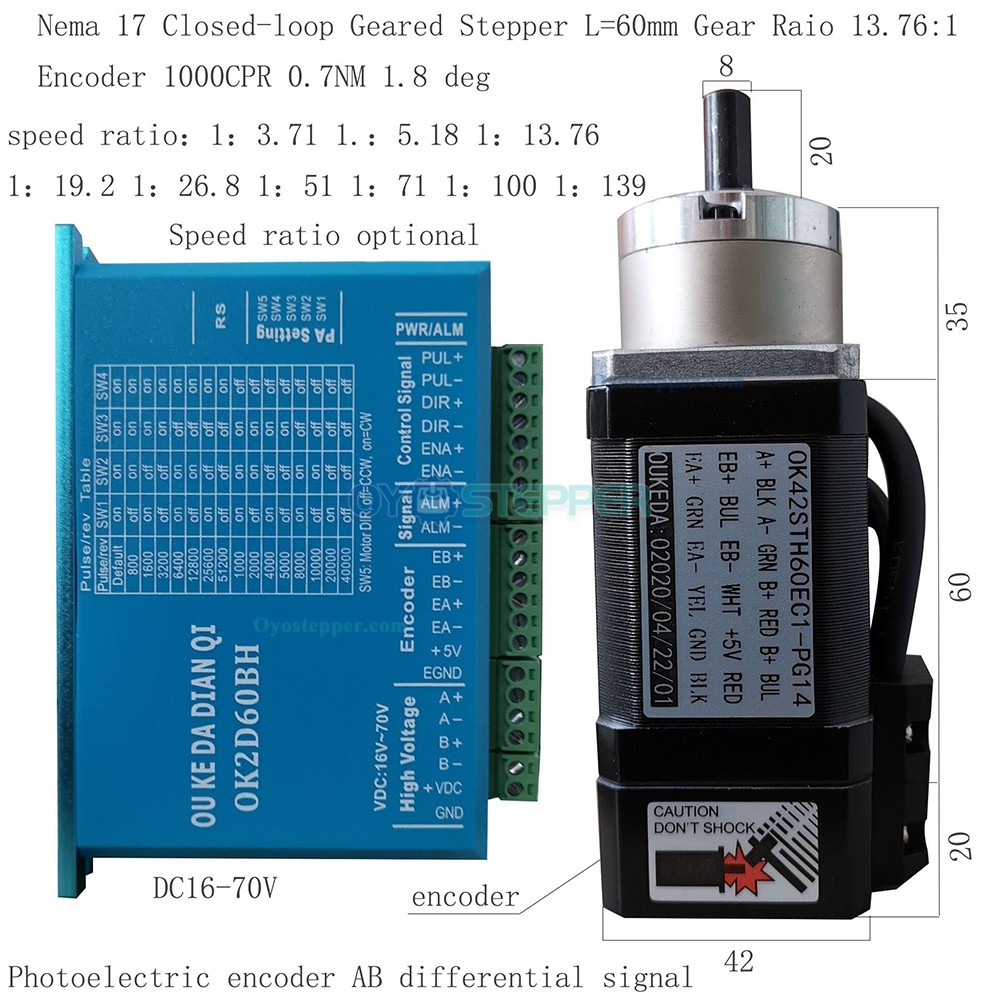

Install Size Picture:
