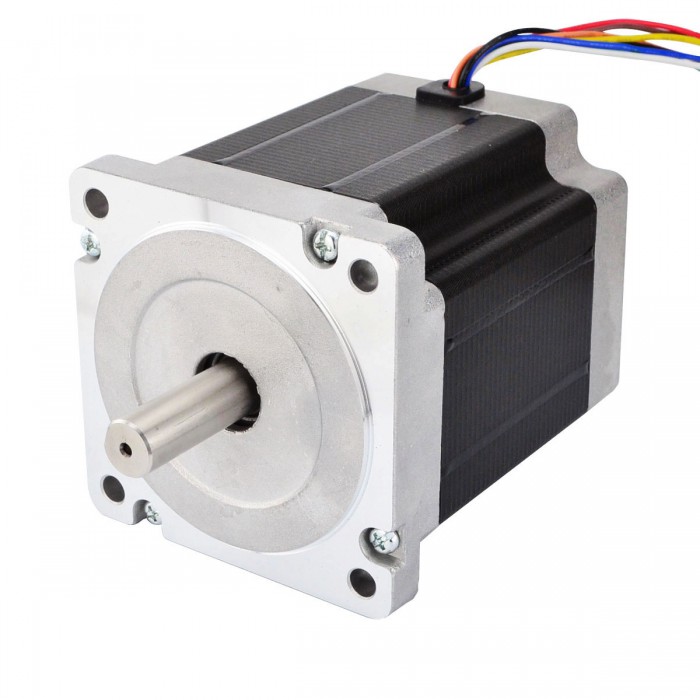

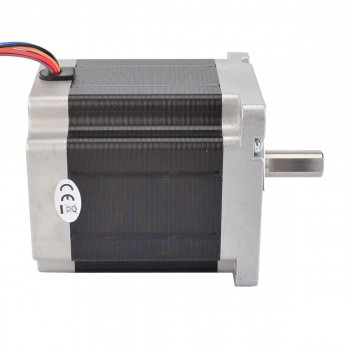

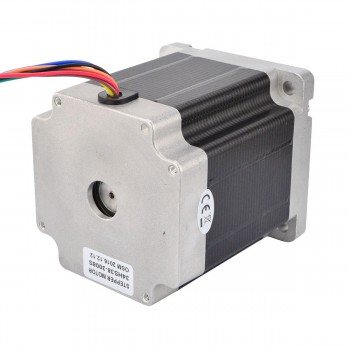

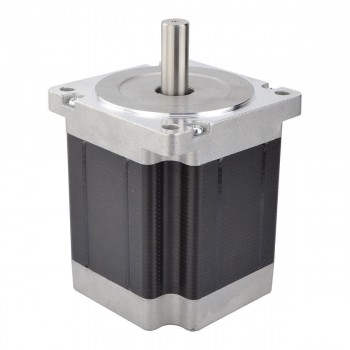

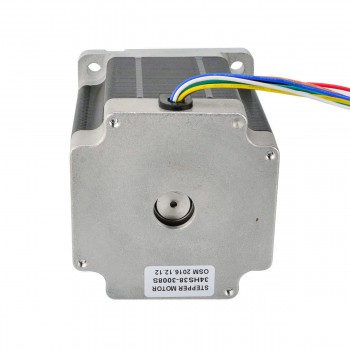

Nema 34 CNC Stepper Motor Bipolar 1.8 Deg 7.07Nm (1001oz.in) 86x86x98mm D-Cut Shaft 8 Wires
Special Offer in December 2023:
- $10 Off Over $150
- $20 Off Over $300
- $35 Off Over $500
- $55 Off Over $800
- $70 Off Over $1000
- $100 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till December 7th, 2023
- Note:No coupon code needed, please place order directly!
Our Price:$56.49
This nema 34 cnc stepper motor with size 86x86x98mm. It has 8 wires, which have three connection options: Unipolar or Bipolar(Serial) or Bipolar(Parallel), you can choose any type as you wish. It's houlding torque reach 5Nm(708oz.in) with unipolar connection and 7.07Nm(1001oz.in) with bipolar connection.
Electrical Specification
- Manufacturer Part Number: 34HS38-3008S
- Motor Type: Bipolar Stepper
- Step Angle: 1.8 deg
- Holding Torque（Unipolar）: 5Nm(708oz.in)
- Holding Torque（Bipolar）: 7.07Nm(1001oz.in)
- Rated Current/phase（Unipolar）: 3.0A
- Rated Current/phase（Bipolar Serial）: 2.12A
- Rated Current/phase（Unipolar Parallel）: 4.24A
- Phase Resistance(Unipolar): 1.6ohms
- Phase Resistance(Bipolar Serial): 3.2ohms
- Phase Resistance(Bipolar Parallel): 0.8ohms
- Inductance(Unipolar): 8.0mH ± 20%(1KHz)
- Inductance(Bipolar Serial): 32.0mH ± 20%(1KHz)
Physical Specification
- Frame Size: 86 x 86mm
- Body Length: 98mm
- Shaft Diameter: Φ12.7mm
- Shaft Length: 32mm
- D-cut Length: 25mm
- Number of Leads: 8
- Lead Length: 500mm
- Weight: 3.2kg
Connection
|
A+
|
A-
|
C+
|
C-
|
B+
|
B-
|
D+
|
D-
|
|
BLU
|
BLK
|
WHT
|
ORG
|
RED
|
GRN
|
YEL
|
BRN
|
Resources
- Full Datasheet: 34HS38-3008S.pdf
- Torque Curver: 34HS38-3008S Torque Curve.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar/Unipolar |
| Holding Torque (Ncm) | 707 |
| Holding Torque (oz.in) | 1001 |
| Inductance(mH) | 8 |
| Phase Resistance(ohm) | 0.8 |
| Rated Current (A) | 4.24 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 98 |
| Frame Size(mm) | 86x86 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Type | D-Cut |
| Shaft Diameter(mm) | 12.7 |
| Shaft Length(mm) | 32 |
| No. of Lead | 8 |
| Lead Length(mm) | 500 |
| Weight(g) | 3130 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
