Worm Gearbox Speed Reducer Ratios 17:1, 30:1, 50:1, 100:1, 290:1, 500:1

Worm Gearbox Speed Reducer Ratios 17:1, 30:1, 50:1, 100:1, 290:1, 500:1
NO.:OKD-WL30G
Post a review
Halloween Special Offer 2026:
  • All Treats No Tricks
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till November 4th, 2026
  • Note:No coupon code needed, please place order directly!
Our Price:$24.99

Quantity:- +

Add To Cart
Add To My Favorites
  • Share:

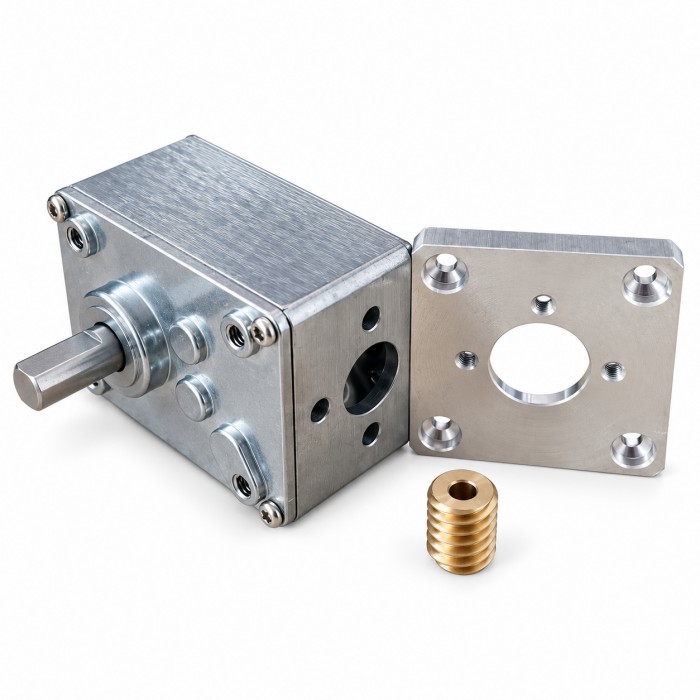

Worm Gearbox Speed Reducer Ratios 17:1, 30:1, 50:1, 100:1, 290:1, 500:1



Gearbox Specifications:
Product Type: Worm Gear Reducer

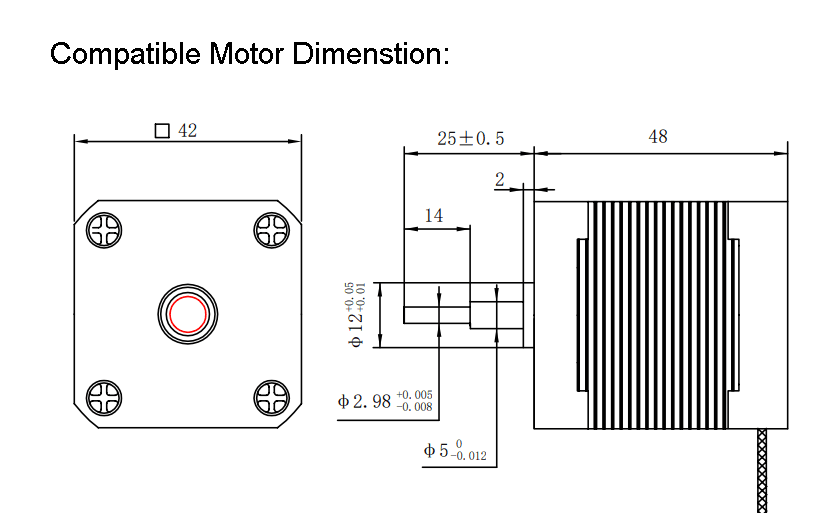

Compatible Motor: 42 mm NEMA 17 Stepper Motor
Available Gear Ratios: 17:1, 30:1, 50:1, 75:1, 85:1, 100:1, 290:1, 500:1
Input Shaft Diameter: Ø5 mm
Output Shaft Diameter: Ø8 mm

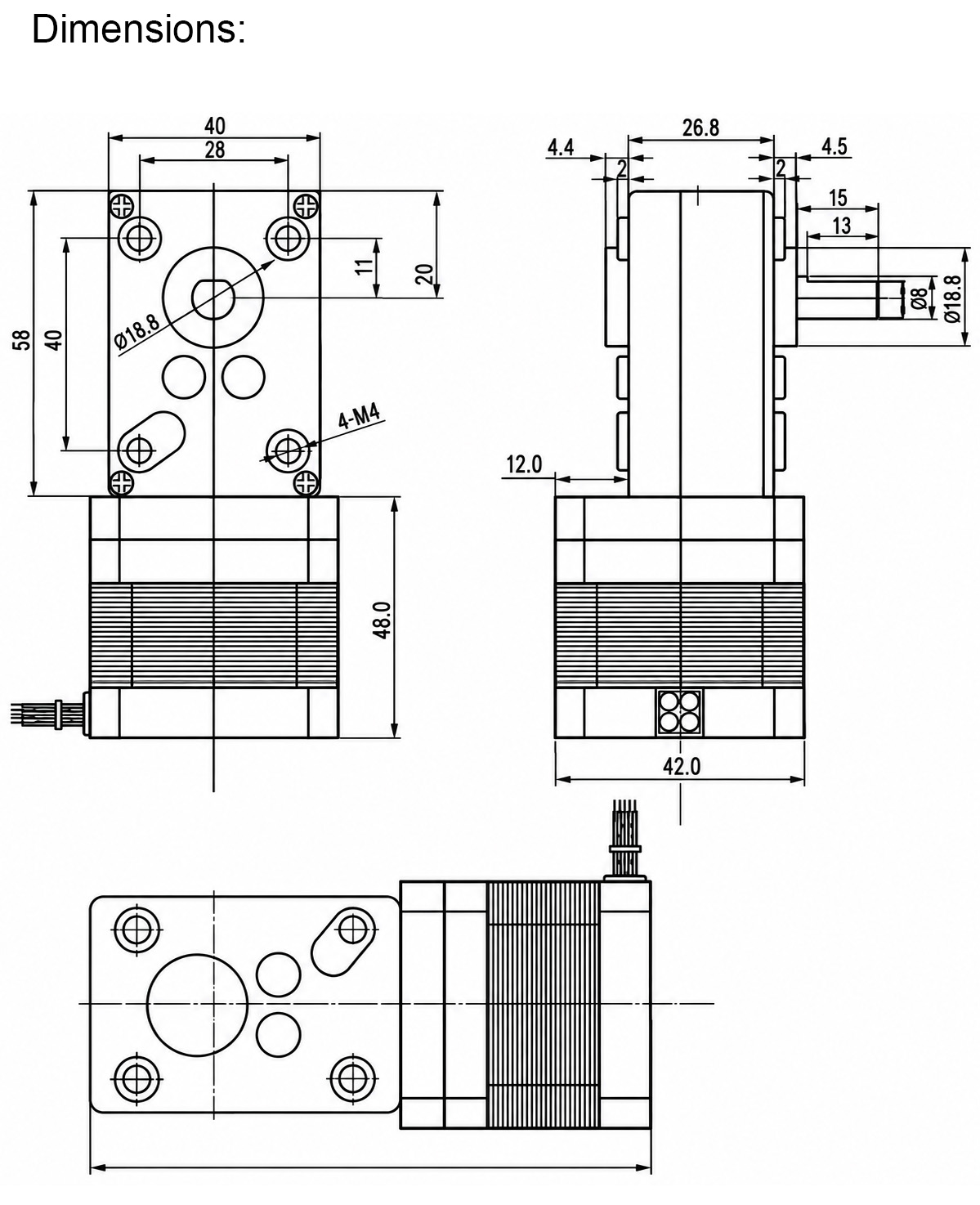

Gearbox Body Dimensions: 40 × 58 mm
Gearbox Housing Width: 42 mm
Gearbox Housing Height: 48 mm
Motor Mounting Face Dimensions: 40 × 58 mm
Motor Mounting Hole Spacing: 28 × 40 mm
Mounting Holes: 4 × M4
Mounting Hole Depth: 7 mm
Adapter Plate Dimensions: 40 × 40 mm
Worm Component Bore Diameter: Ø3 mm

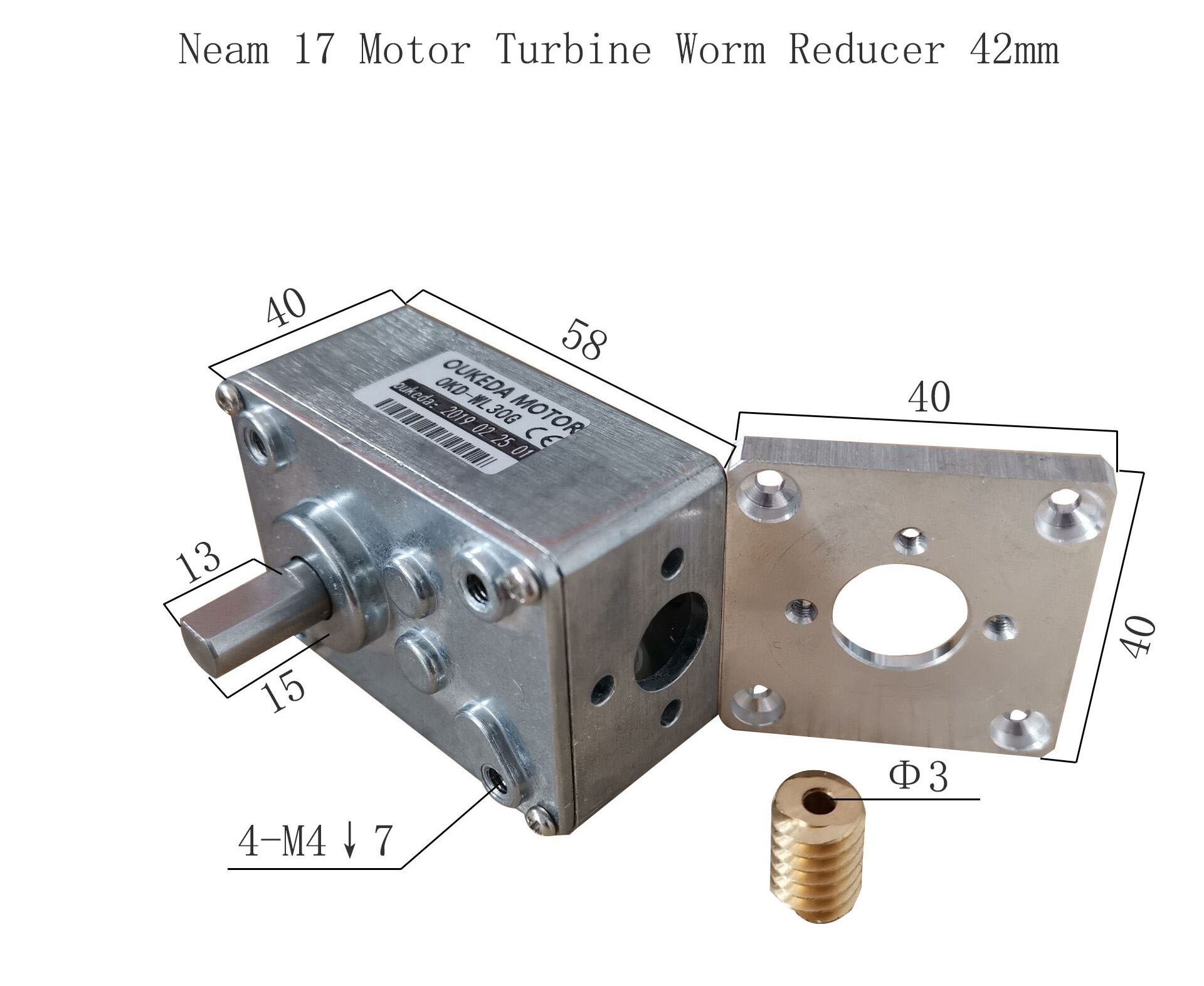

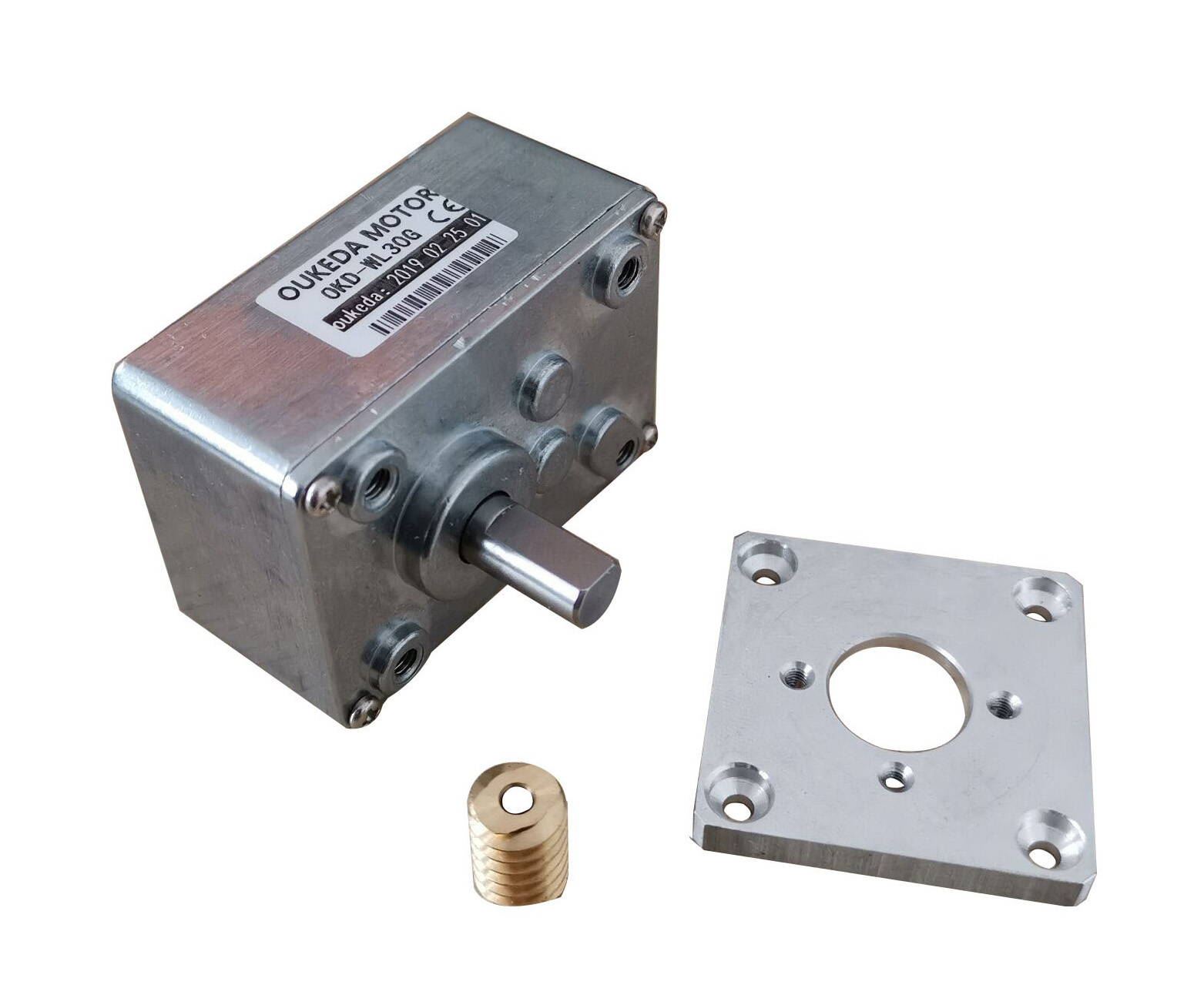

NEMA 17 Worm Gearbox Speed Reducer Ratios 17:1, 30:1, 50:1, 75:1, 85:1,100:1, 290:1, 500:1



NEMA 17 Worm Gearbox Speed Reducer Ratios 17:1, 30:1, 50:1, 75:1, 85:1,100:1, 290:1, 500:1



NEMA 17 Worm Gearbox Speed Reducer Ratios 17:1, 30:1, 50:1, 75:1, 85:1,100:1, 290:1, 500:1








Prev: OUKEDA NEMA 34 Stepper Motor & Driver Kit 12Nm 1.8° 6A 4.5V Keyway 2-Phase 86mm
Next: Oukeda NEMA 17 Stepper Motor with Brake 1.8° 26Ncm/32Ncm 2 Phase 42×42 mm
Gearbox Specification
Shaft Type D-cut
Output Shaft Length(mm) 15
Output Shaft Diameter(mm) 8
Input Shaft Diameter(mm) 5
Gear Ratio 17:1 / 30:1 / 50:1 / 100:1 / 290:1 / 500:1
