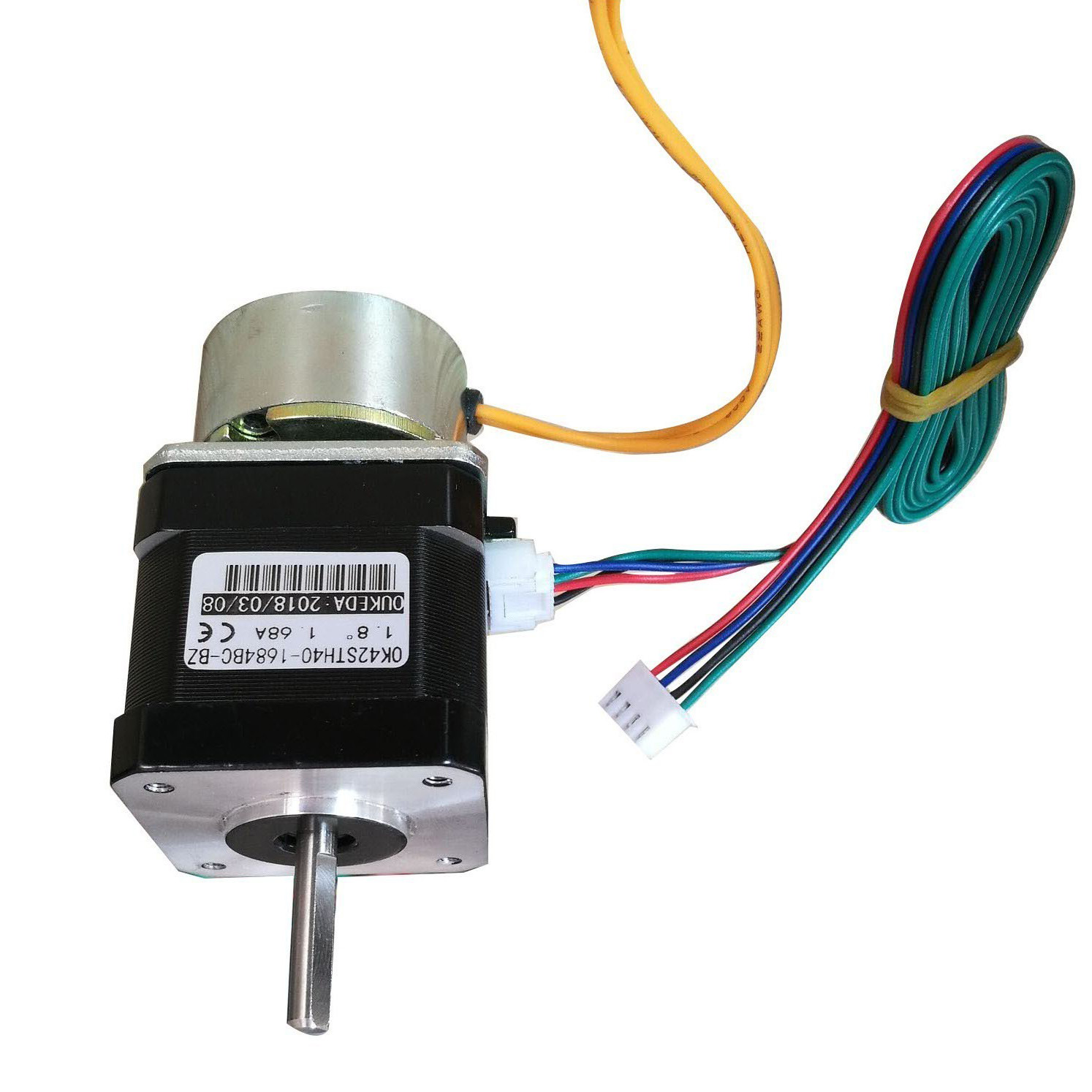

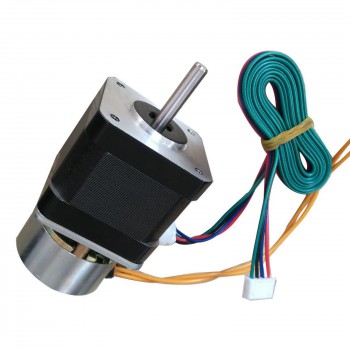

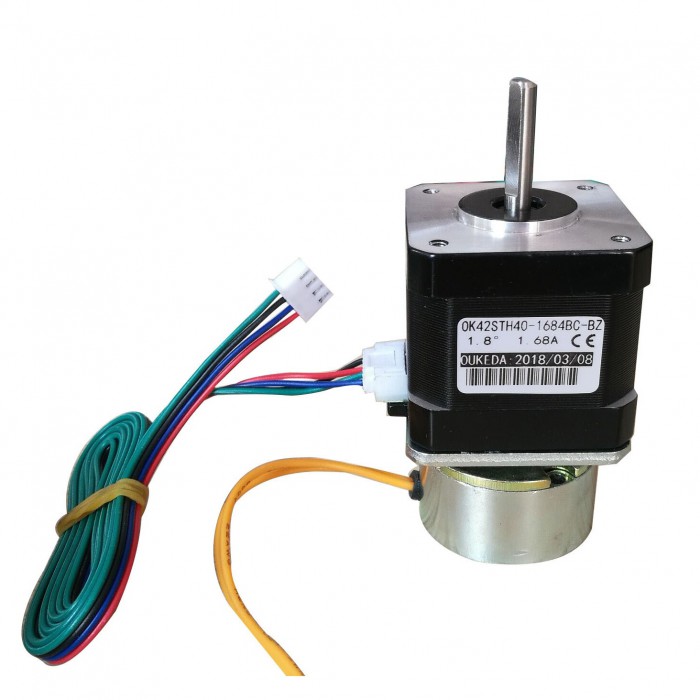

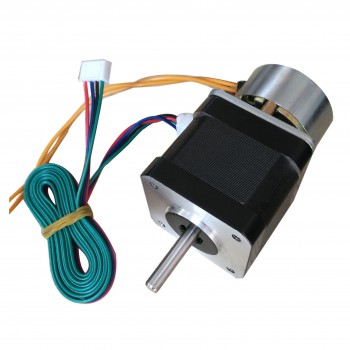

Oukeda NEMA 17 Stepper Motor with Brake 1.8° 26Ncm/32Ncm 2 Phase 42×42 mm
Halloween Special Offer 2026:
- All Treats No Tricks
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till November 4th, 2026
- Note:No coupon code needed, please place order directly!
Our Price:$25.99
Oukeda NEMA 17 Stepper Motor with Brake 1.8° 26Ncm/32Ncm 2 Phase 42×42 mm
Electrical Specifications：
Model:OK42STH40-1684BC-BZ
Frame Size: 42 mm (NEMA 17)
Step Angle: 1.8°
Number of Phases: 2
Holding Torque: 26Ncm/32Ncm
Voltage: 0-36VDC
Frame Size: 42 × 42 mm
Motor Length:34 mm/40mm
Shaft Diameter:5mm
Shaft Length:16mm
D-Cut Dimension: 4.5mm
Shaft Type: D-Cut Shaft
Mounting Hole Spacing: 31 × 31 mm
Mounting Holes: 4 × M3
Pilot Diameter: 22 mm
Motor Weight: 200g
Rear Housing Diameter: 37 mm
Rear Housing Length: 26 mm
Lead Wire Length: 250 mm

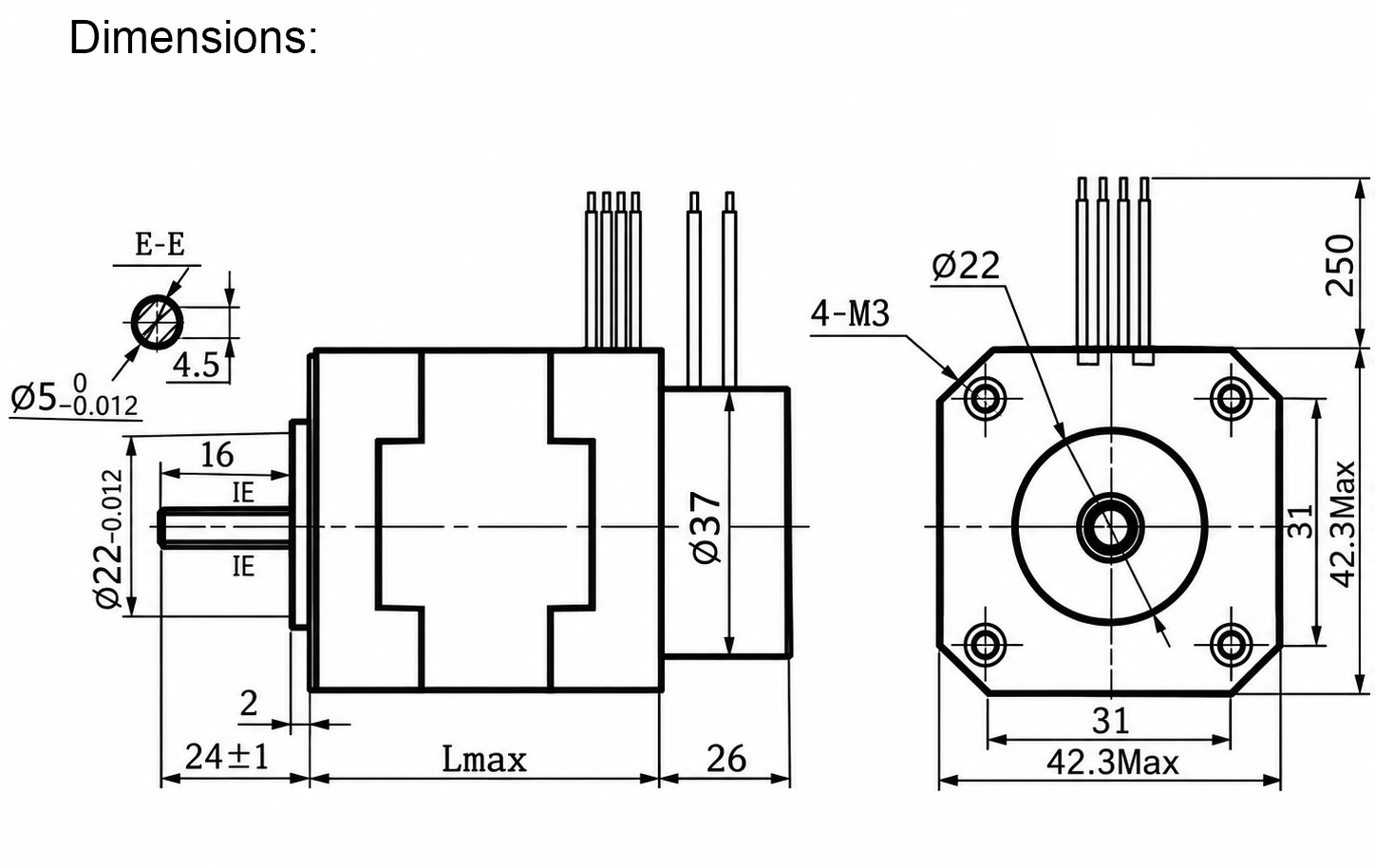

.jpg)
| Physical Specification | |
|---|---|
| D-cut Length | 16 |
| Body Length(mm) | 34 / 40 |
| Frame Size(mm) | 42 x 42 |
| No. of Lead | 6 |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 16 |
| Shaft Type | D-cut |
| Single Shaft/Dual Shaft | Single Shaft/ |
| Weight(g) | 250 |
| Electrical Specification | |
| Holding Torque (Ncm) | 26 / 32 |
| Step Angle(°) | 1.8 |
| No. of Phase | 2 |
