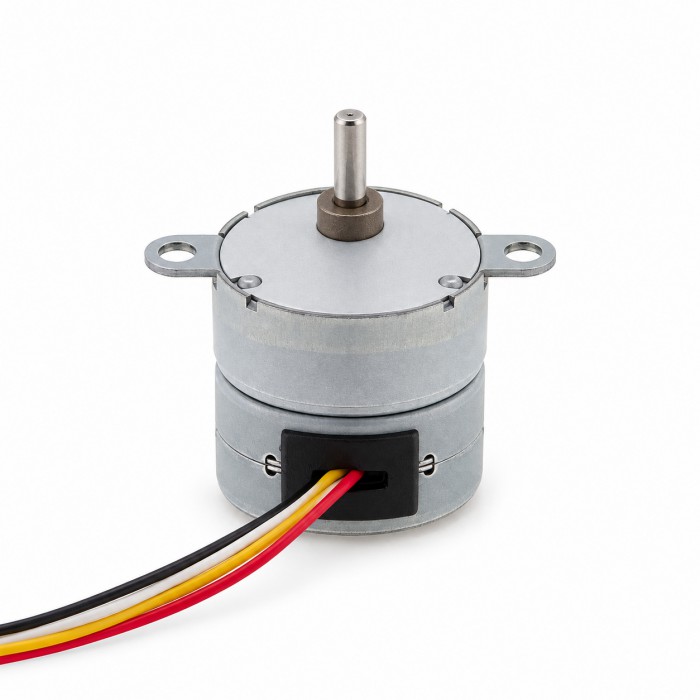

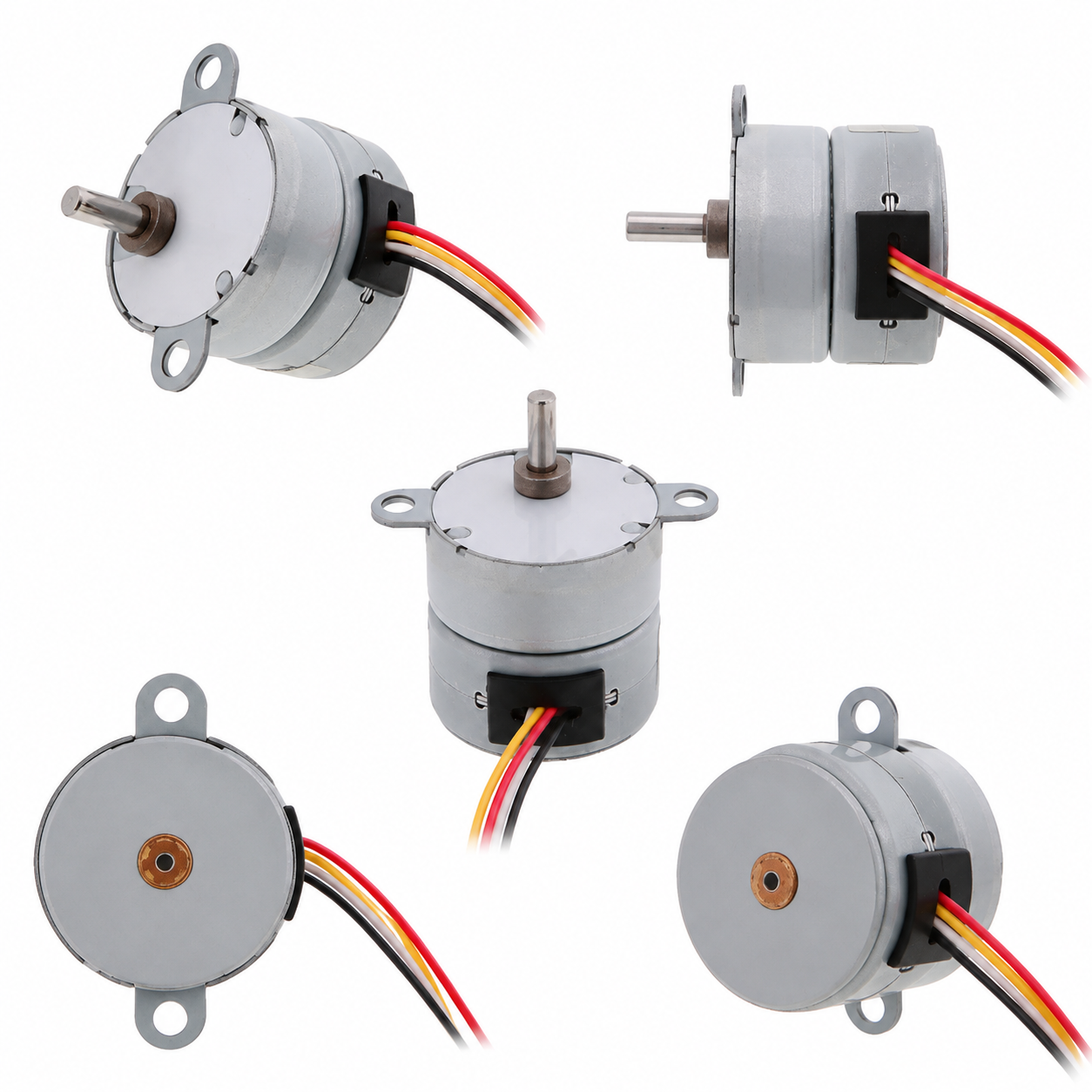

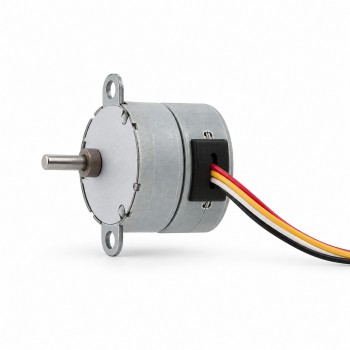

Oukeda PM25 Permanent Magnet Stepper Motor with Gearbox 25mm 10:1 Ratio 7.5° 14.7 Ncm 12V PM Stepper Motor

Oukeda PM25 Permanent Magnet Stepper Motor with Gearbox 25mm 10:1 Ratio 7.5° 14.7 Ncm 12V PM Stepper Motor

Electrical Specification
Manufacturer Part Number: OK25BY25-048-327/10
Motor Type: PM Stepper Motor
Phase: 2
Step Angle: 7.5°
Rated Current/Phase: 300 mA
Voltage: 12 VDC
Holding Torque: 1500 g·cm (14.7 Ncm)
Phase Resistance: 40 Ω ±10% (at 20°C)
Max. No-Load Speed: 700 PPS
Pull-in Torque at 400 PPS: 300 g·cm
Dielectric Strength: 600 VAC, 1 mA, 1 second
Winding Temperature: ≤65°C
Ambient Temperature: −20°C to +50°C
Ambient Humidity: 15%–95%

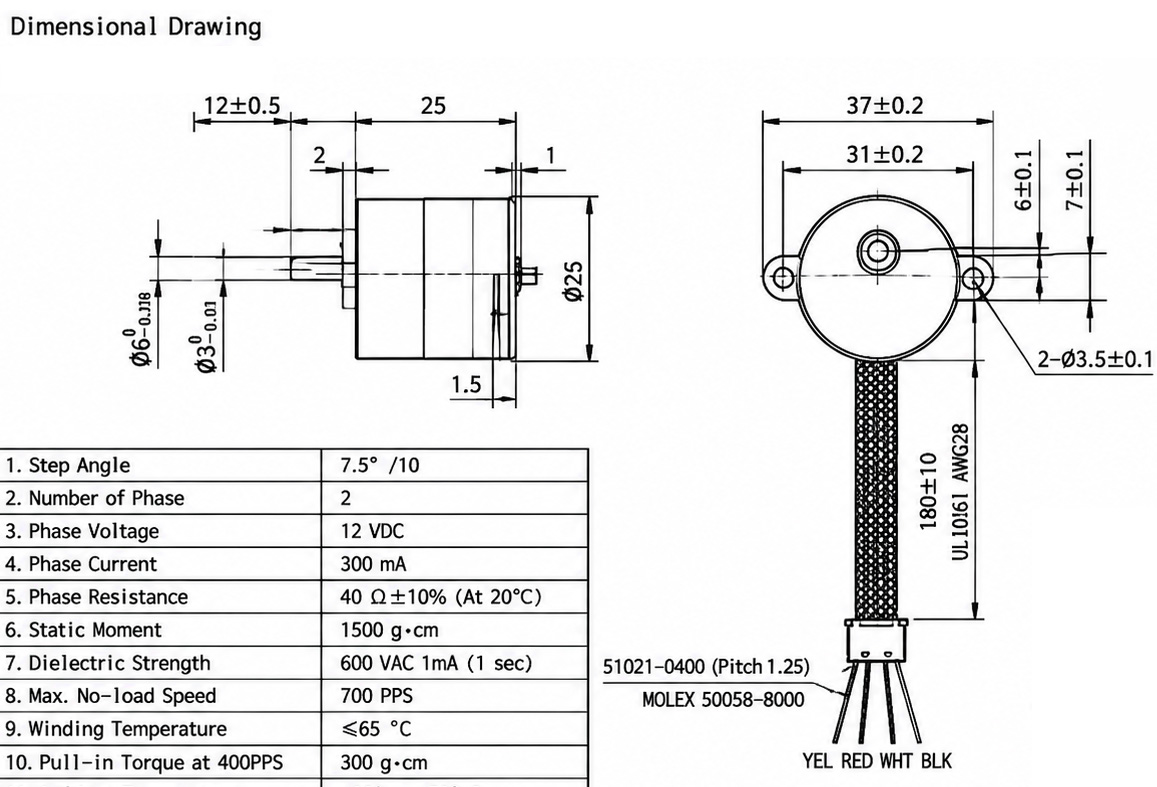

Physical Specification:
Frame Size: Ø25 mm
Body Length: 25 mm
Shaft Diameter: Ø3 mm
Shaft Length: 12 ±0.5 mm
Gear Ratio: 10:1
Mounting Hole Spacing: 31 ±0.2 mm
Mounting Holes: 2 × Ø3.5 ±0.1 mm
Overall Mounting Width: 37 ±0.2 mm
Number of Leads: 4
Lead Length: 180 ±10 mm
Lead Specification: UL1061, AWG28
Connector: Molex 51021-0400 / 50058-8000 series (1.25 mm pitch)
Weight: Approx. 50g
