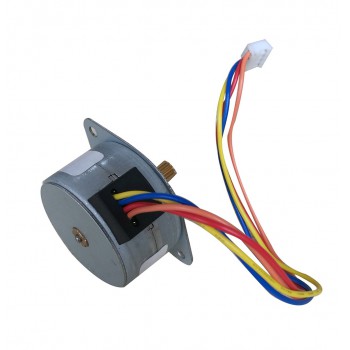

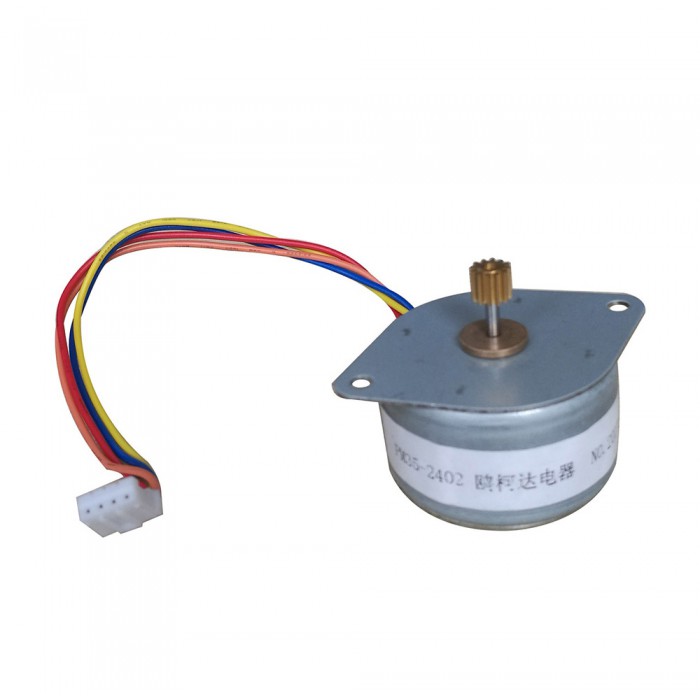

OUKEDA PM35-2402 Permanent Magnet Stepper Motor 7.5 35mm 12V 2-Phase PM Printer Motor

OUKEDA PM35-2402 Permanent Magnet Stepper Motor 7.5 35mm 12V 2-Phase PM Printer Motor

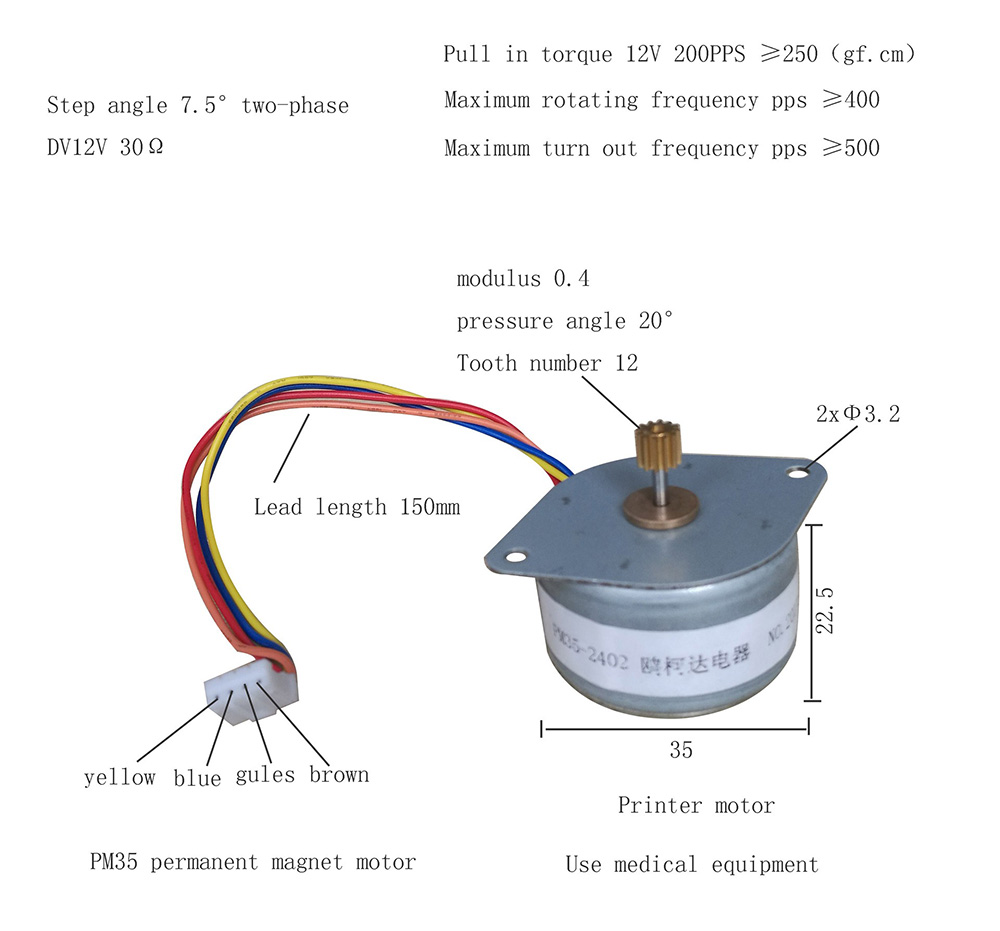

Electrical Specification:
Manufacturer Part Number: PM35-2402
Motor Type: PM Stepper Motor
Phase: 2
Step Angle: 7.5°
Voltage: 12 VDC
Pull-in Torque at 200 PPS:>24.52 Ncm
Detent Torque: 8.83Ncm
Phase Resistance: 30 Ω ±10% (at 25°C)
Maximum No-Load Output Frequency: >500 PPS
Maximum Pull-in Frequency: >400 PPS
Dielectric Strength: 500 VAC for 1 minute
Insulation Resistance: >100 MΩ;

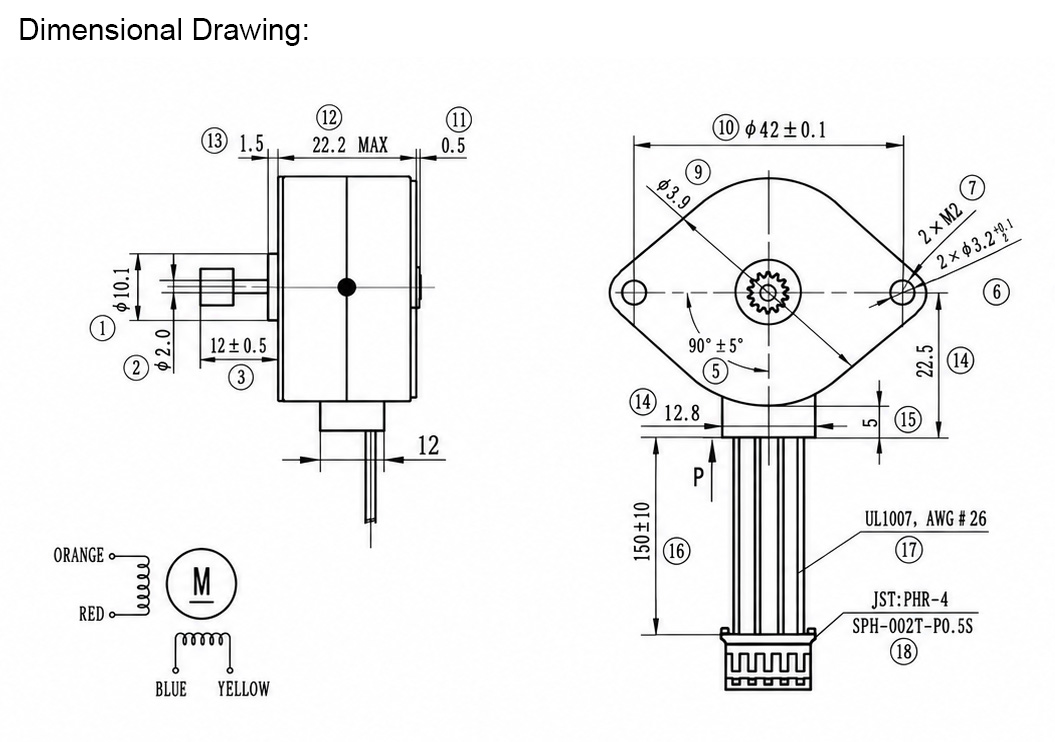

Physical Specification
Model: PM35-2402
Motor Body Diameter: Ø35 mm
Overall Mounting Width: 42 ±0.1 mm
Body Length:22.2 mm
Shaft Diameter: Ø2.0 mm
Shaft Length: 12 ±0.5 mm
Output Pinion Dimension: 10 ±0.1 mm
Gear Type: Involute Gear
Gear Module: 0.4
Gear Pressure Angle: 20°
Number of Gear Teeth: 12
Gear Pitch Circle Diameter: Ø6 mm
Gear Outside Diameter: Ø5.6 mm
Gear Accuracy: JGMA 4
Mounting Holes: 2 × M2
Number of Leads: 4
Lead Colors: Orange, Red, Blue, Yellow
Lead Length: 150 ±10 mm
Lead Specification: UL1007, AWG26
Connector: JST PHR-4
Crimp Terminal: JST SPH-002T-P0.5S
Weight: 40g
