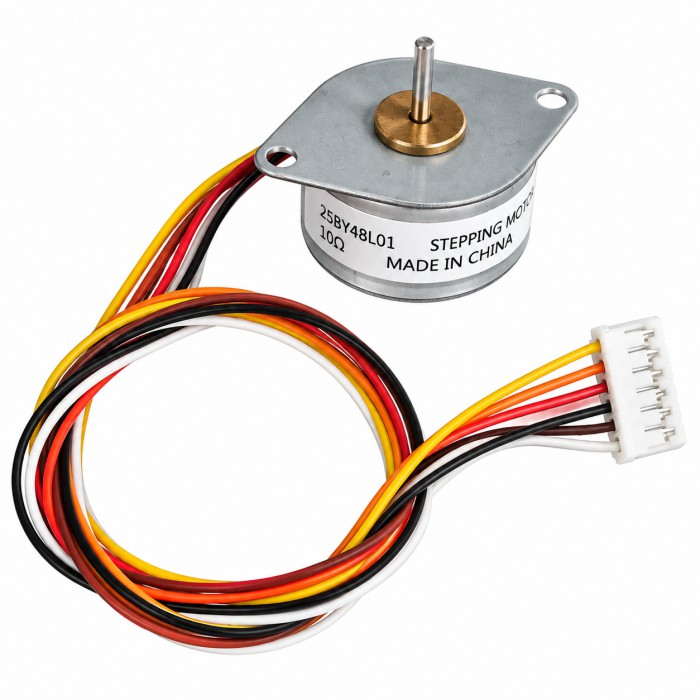

Oudeka Permanent Magnet PM Stepper Motor 25mm 7.5° 5V 0.5A 1.18 Ncm 4-Phase 6-Wire
- Manuals and Documentation:
- All Treats No Tricks
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till November 4th, 2026
- Note:No coupon code needed, please place order directly!

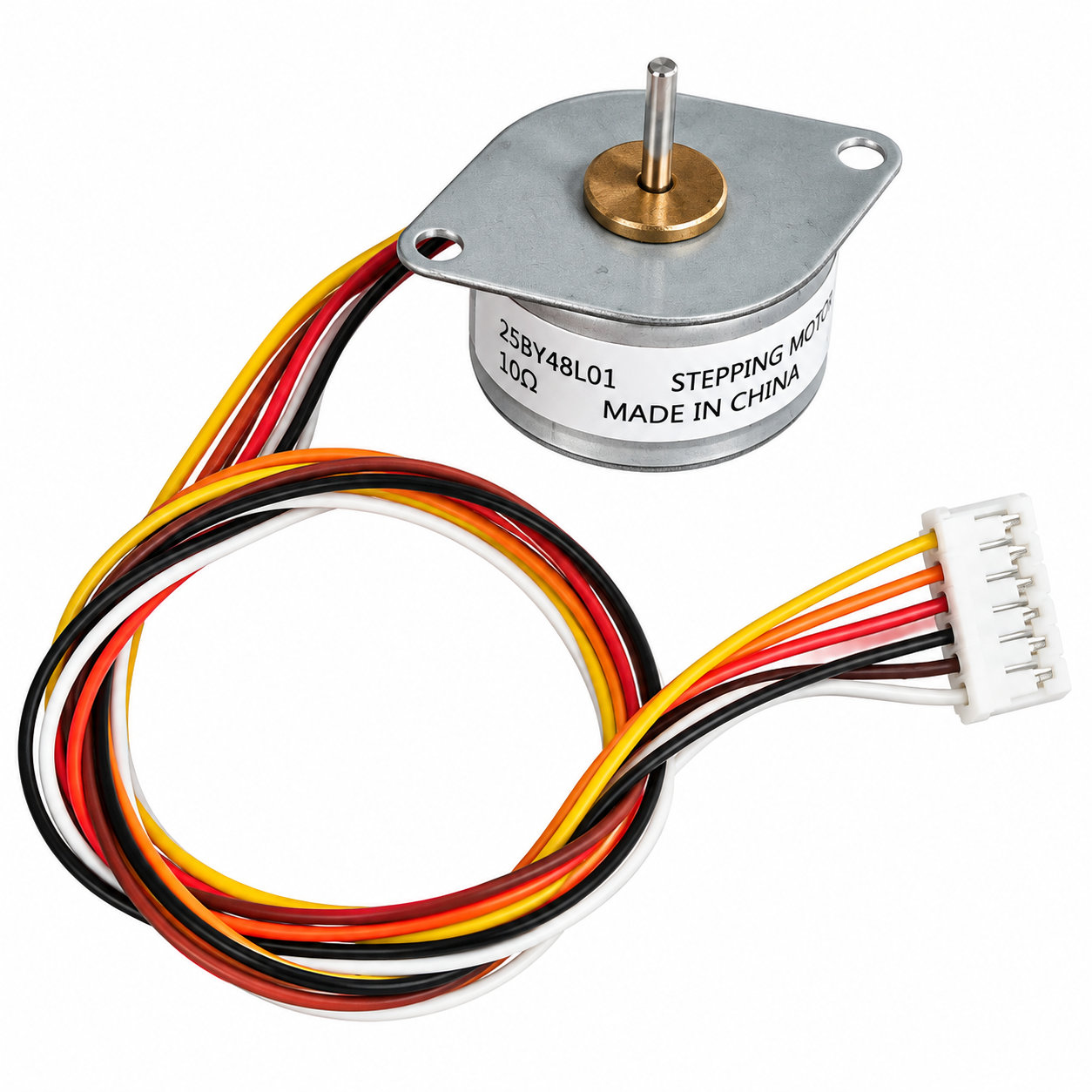

Oudeka Permanent Magnet PM Stepper Motor 25mm 7.5° 5V 0.5A 1.18 Ncm 4-Phase 6-Wire
Electrical Specifications:
Model Number: 25BY48L01
Motor Type: PM Stepper Motor
Number of Phases: 4
Rated Voltage: 5VDC
Rated Current per Phase: 0.5A
Step Angle: 7.5°
Steps per Revolution:48
Phase Resistance: 10 Ω ±10%
Phase Inductance: 2.1 mH ±20%
Holding Torque: 120 gf·cm (1.18 Ncm)
Pull-in Torque: 40 gf·cm (at 100 PPS)
Minimum Pull-in Rate:750 PPS
Detent Torque: 45 gf·cm
Rotor Inertia: <1.0 g·cm²
Stepping Accuracy: ±7%
Insulation Resistance: ≥100 MΩ

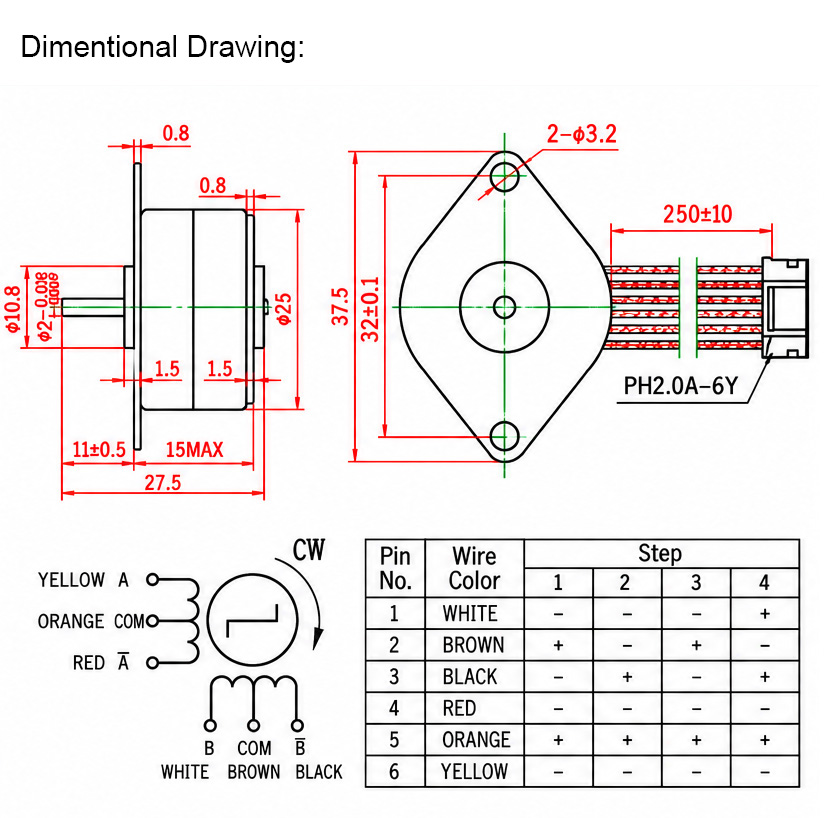

Physical Specifications:
Motor Body Diameter: Ø25 mm
Maximum Body Length: 15 mm
Overall Length: 27.5 mm
Shaft Diameter: Ø1.0 mm
Shaft Shoulder Diameter: Ø2.0 mm
Shaft Length: 11 ±0.5 mm
Mounting Plate Height: 37.5 mm
Mounting Hole Spacing: 32 ±0.1 mm
Mounting Holes: 2 × Ø3.2 mm
Lead Length: 250 ±10 mm
Connector: PH2.0A-6Y, 6-pin
Weight: Approx. 30g
