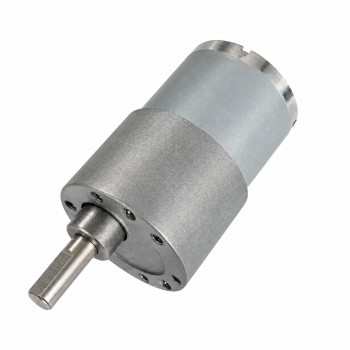

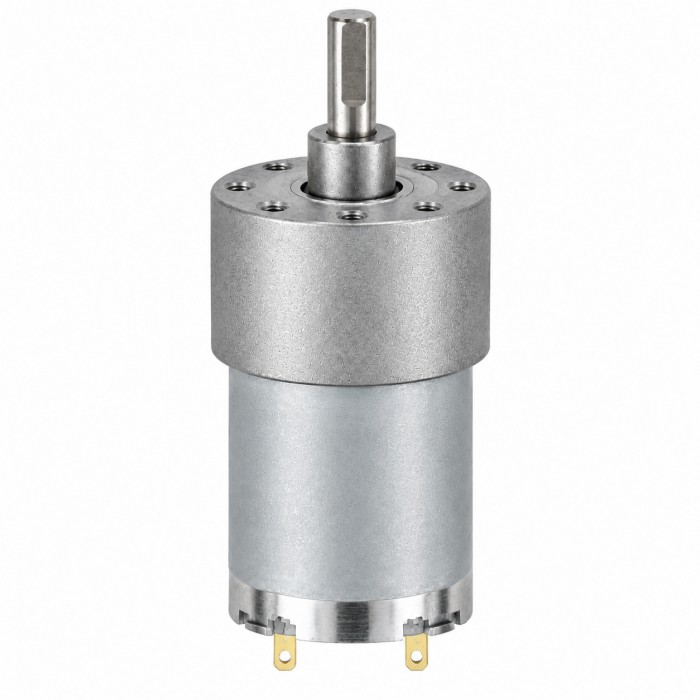

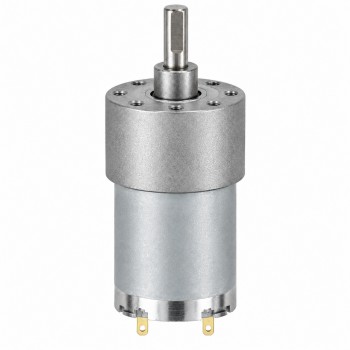

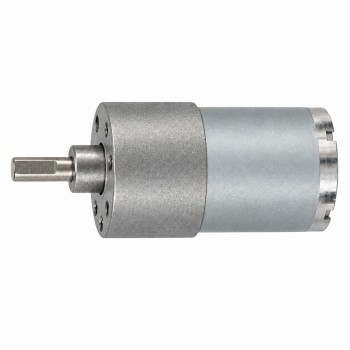

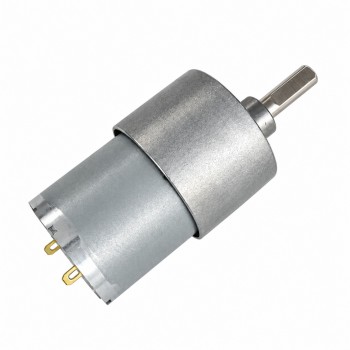

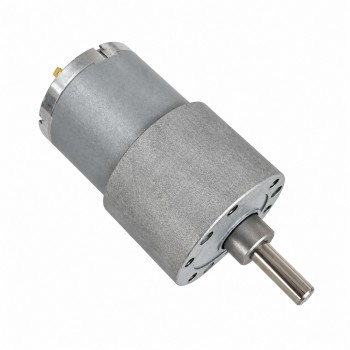

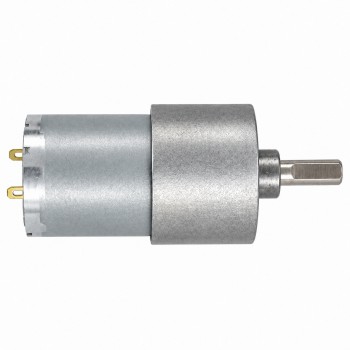

OKD37AG60 PM Stepper Motor with Gearbox Ratio 60:1 14.7 Ncm 24V 100RPM DC Geared Motor

Electrical Specifications:
Manufacturer Part Number: OKD37AG60-24V
Motor Type:DC Geared Motor
Rated Voltage: 24VDC
Power:2W
Output Speed: 100 RPM
Max. Output Torque: 1.5 kg·cm(14.7 Ncm)
Gear Ratio:60:1

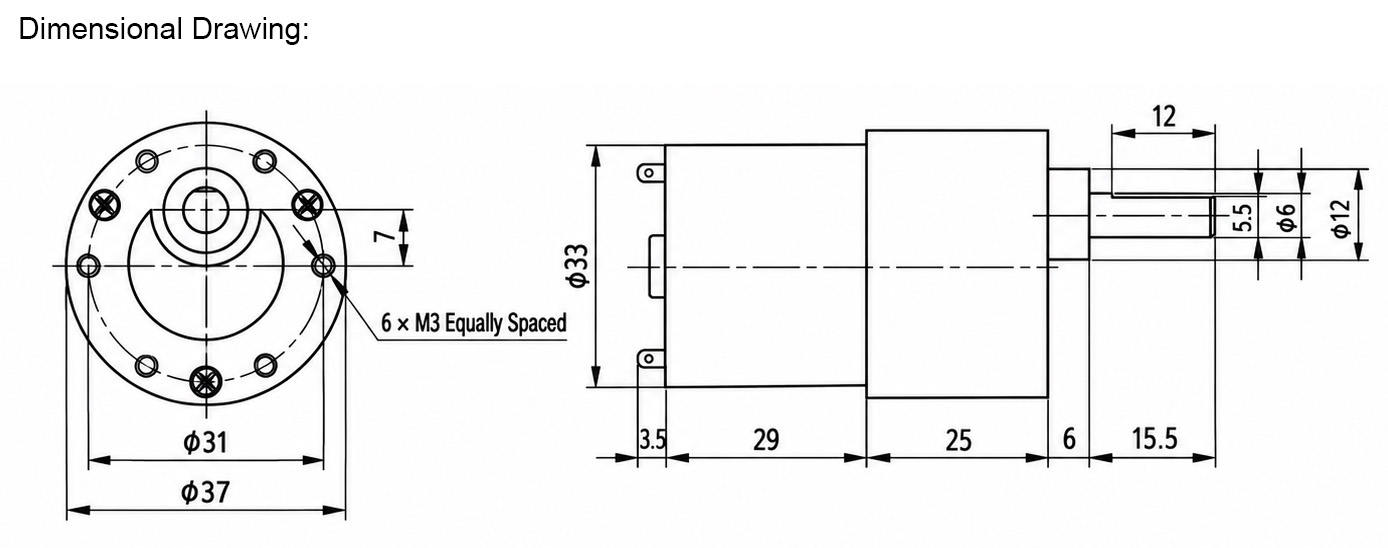

Physical Specifications:
Motor Body Diameter:Ø33 mm
Motor Body Length: 29 mm
Gearbox Length: 25 mm
Gearbox Flange Diameter: Ø37 mm
Mounting Hole Pitch Circle Diameter: Ø31 mm
Mounting Holes: 6 × M3
Output Shaft Diameter: Ø6mm
Output Shaft Length: 15.5mm
D-cut Length: 12 mm
Shaft Hub Length: 6 mm
Weight: Approx. 170g
