Nema 14 Non-captive Linear Stepper Motor 48mm Stack 0.91A 5V Lead Revolution 4.8768mm/0.192" Lead Screw 250mm

Nema 14 Non-captive Linear Stepper Motor 48mm Stack 0.91A 5V Lead Revolution 4.8768mm/0.192" Lead Screw 250mm
NO.:14LS17-0914Q-250N
Post a review
Halloween Special Offer 2024:
  • All Treats No Tricks
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till November 4th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$99.07
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $94.12 5%
10 $92.14 7%
50 $89.16 10%
100 $86.19 13%
Add To Cart

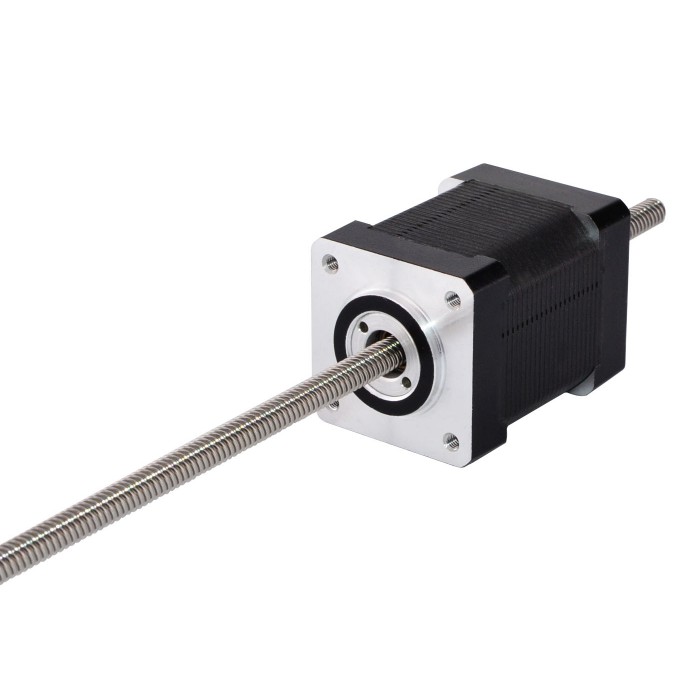

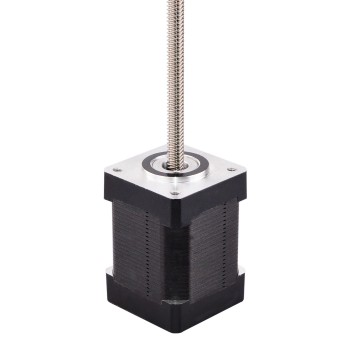

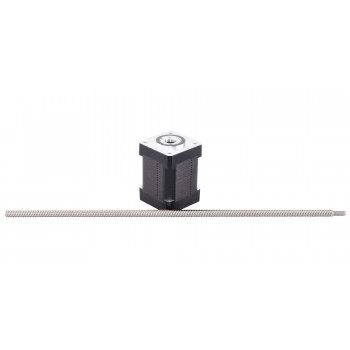

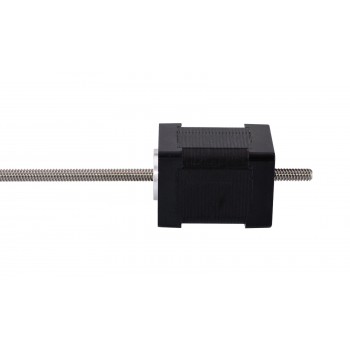

This model is almost exactly same as Haydon Kerk 35000 series size 14 double stack non-captive stepper motor linear actuator. The motor part is 48mm body 1.8 degree 0.91A Nema 14 stepper motor, and it works with a 5.54mm (0.2181") diameter 250mm (9.8425") length lead screw, the linear travel is 4.877mm (0.192") per revolution.

Electrical Specification

Manufacturer Part Number: 14LS17-0914Q-250N

Motor Type: Non-captive Linear Stepper

Step Angle: 1.8°

Minimal Thrust: 98N (300pps)

Rated Current/phase: 0.91A

Phase Resistance: 5.5ohms

Voltage: 5V

Inductance: 7.63mH±20%(1KHz)



Physical Specification

Frame Size: 35 x 35mm

Body Length: 48mm

Lead Screw Length: 250mm(9.8425")

Lead Screw Diameter: Φ5.54mm(0.2181")

Lead/Step: 0.024384mm(0.00096" )

Lead Travel/Revolution: 4.877mm(0.192")

Number of Leads: 4

Lead Length: 300mm

Weight : 240g



Connection

A+
A-
B+
B-
Red
Red/White
Green/White
Green



Resources

Full Datasheet: 14LS17-0914Q-250N.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 14 Non-captive Linear Motor Actuator Bipolar 48mm Stack 0.91A 5V Lead Revolution 2.4384mm/0.096" Lead Screw 250mm
Next: Nema 14 External Stepper Motor Linear Actuator 48mm Stack 0.91A 5V Lead Revolution 0.794mm/0.031"Lead Screw 250mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 7.63
Minimal Thrust(N) 98
Motor Type Non-Captive
Phase Resistance(ohm) 5.5
Rated Current (A) 0.91
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 48
Lead Screw Diameter(mm) 5.54
Lead Screw Length(mm) 250
Lead Revolution(mm) 4.8768
Linear Travel / Step(mm) 0.024384
No. of Lead 4
Lead Length(mm) 300
Frame Size(mm) Nema 14 (35 x 35)
