Nema 23 External Linear Stepper Motor Bipolar 1.8 Deg 2.5A 5V Lead Revolution 2.54mm/0.1" Lead Screw 250mm
- Manuals and Documentation: Full Datasheet:
Our Price:$152.38

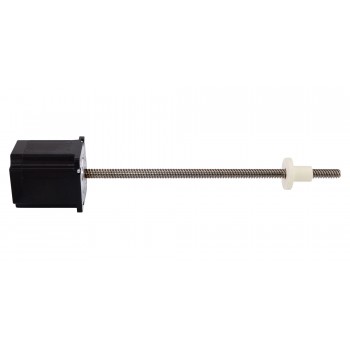

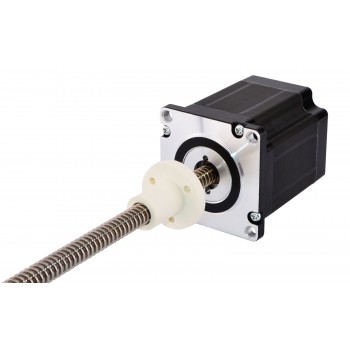

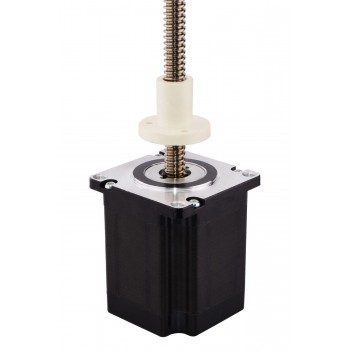

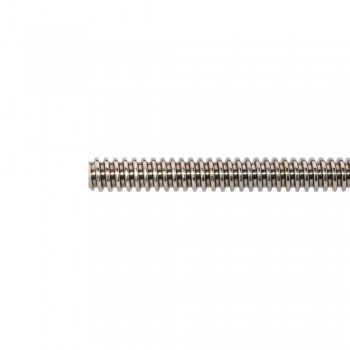

The motor is a NEMA 23 stepper motor (66 mm body, 1.8° step angle, 2.5 A) integrated with a 9.53 mm (0.3752") diameter × 250 mm (9.8425") lead screw and POM screw nut, delivering 2.54 mm (0.1") linear travel per revolution.
Electrical Specification
Manufacturer Part Number: 23LS26-25043-250E
Motor Type: External Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 540N (300pps)
Rated Current/phase: 2.5A
Phase Resistance: 2ohms
Voltage: 5V
Inductance: 7.6mH±20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 66mm
Lead Screw Length: 250mm(9.8425")
Lead Screw Diameter: Φ9.53mm(0.3752")
Lead/Step: 0.0127mm(0.0005")
Lead Travel/Revolution: 2.54mm(0.1")
Number of Leads: 4
Lead Length: 300mm
Weight: 958g
Connection
| A+ | A- | B+ | B- |
| Red | Red/White | Green/White | Green |
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 8.2 |
| Minimal Thrust(N) | 540 |
| Motor Type | External |
| Phase Resistance(ohm) | 2.1 |
| Rated Current (A) | 2.5 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 66 |
| Lead Screw Diameter(mm) | 9.53 |
| Lead Screw Length(mm) | 250 |
| Lead Revolution(mm) | 2.54 |
| Linear Travel / Step(mm) | 0.0127 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Frame Size(mm) | Nema 23 (57 x 57) |
