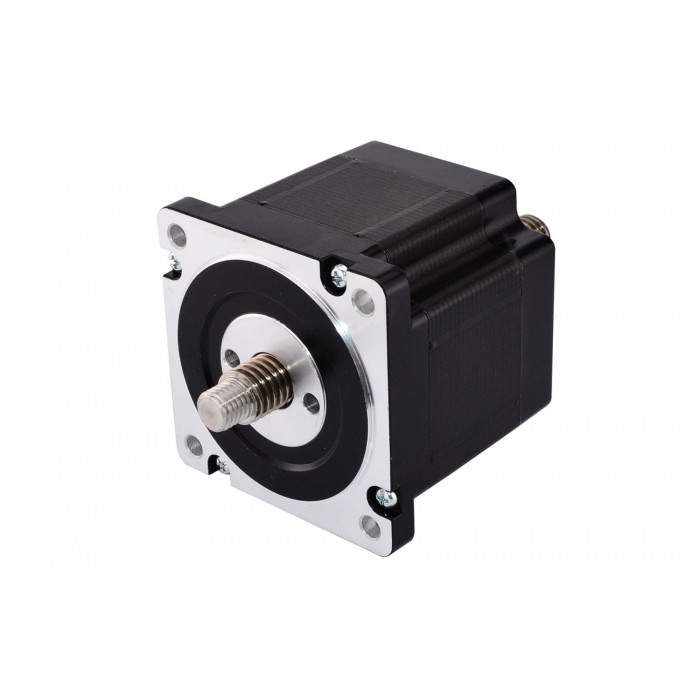

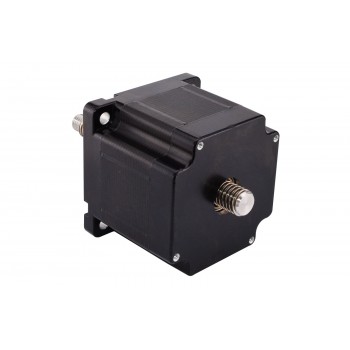

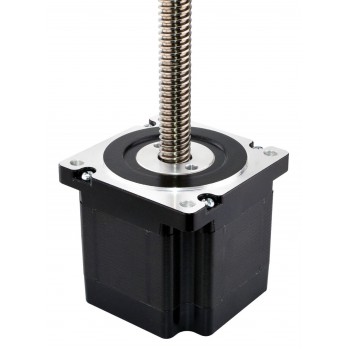

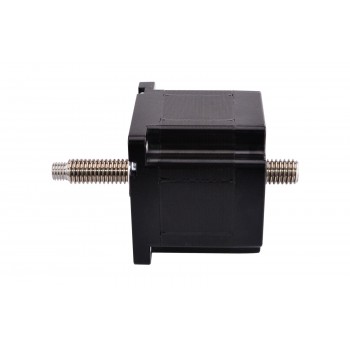

Nema 34 Stepper Motor Non-captive 79mm Stack 3.12A Lead 2.54mm/0.1" Length 150mm

NO.:SKU:34LS31-31243-150N
Review: Post a review
Latest price:$248.30
Buy It Now:$191.00
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - 99 100 - Max
$185.03 $179.07 $173.10 $167.13
Add To Cart

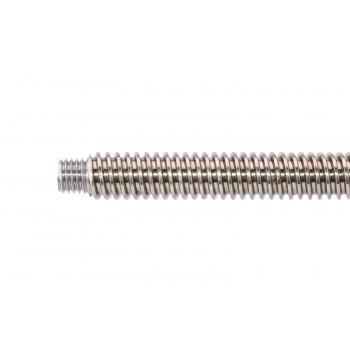

This model is almost exactly same as Haydon Kerk 86000 series size 34 non-captive stepper motor linear actuator. The motor part is 79mm body 1.8 degree 3.12A Nema 34 stepper motor, and it works with a 15.88mm (0.625") diameter 250mm (9.8425") length lead screw, the linear travel is 2.54mm (0.1") per revolution.

Electrical Specification

  • Manufacturer Part Number: 34LS31-31243-150N
  • Motor Type: Non-captive Linear Stepper
  • Step Angle: 1.8°
  • Minimal Thrust: 1000N (300pps)
  • Rated Current/phase: 3.12A
  • Phase Resistance: 1.6ohms
  • Voltage: 5V
  • Inductance: 8.8mH±20%(1KHz)

Physical Specification

  • Frame Size: 86x 86mm
  • Body Length: 79mm
  • Lead Screw Length: 150mm(5.9055")
  • Lead Screw Diameter: Φ15.88mm(0.625")
  • Lead/Step: 0.0127mm(0.0005" )
  • Lead Travel/Revolution: 2.54mm(0.1")
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight : 2300g

Connection

A+
A-
B+
B-
Red
Red/White
Green/White
Green

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Nema 23 External 66mm Stack 2.5A Lead 10.16mm/0.4" Length 250mm
Next: Nema 34 Stepper Motor Non-captive 79mm Stack 3.12A Lead 6.35mm/0.25" Length 150mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 8.8
Minimal Thrust(N) 1000
Motor Type Non-Captive
Phase Resistance(ohm) 1.6
Rated Current (A) 3.12
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 78.56
Frame Size(mm) 86x86
Lead Screw Diameter(mm) 15.88
Lead Screw Length(mm) 150
Lead Revolution(mm) 2.54
Linear Travel / Step(mm) 0.0127
No. of Lead 4
Lead Length(mm) 300
