Nema 11 Geared Stepper Motor Bipolar L=31mm 6Ncm 0.067 Deg 0.67A 3.8V with 27:1 Gearbox Dual Shaft
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till December 3th, 2024
- Note:No coupon code needed, please place order directly!

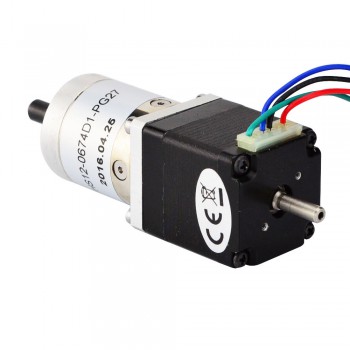

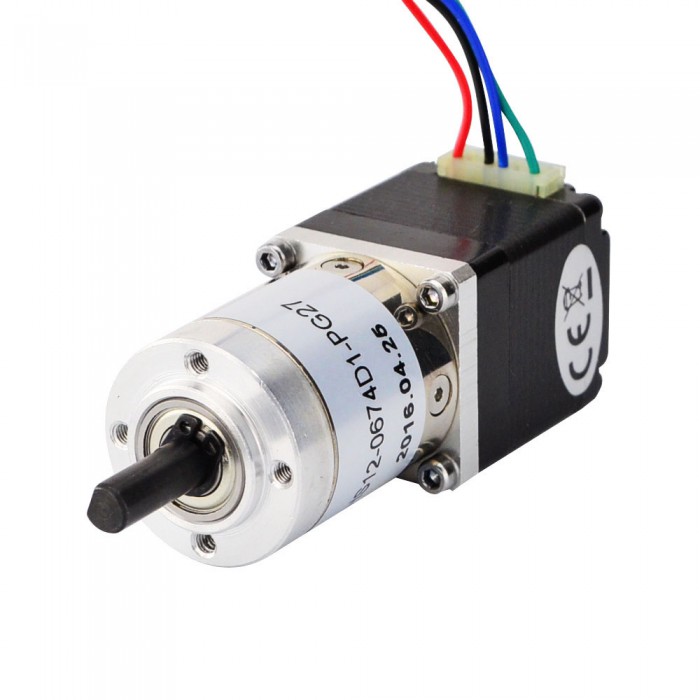

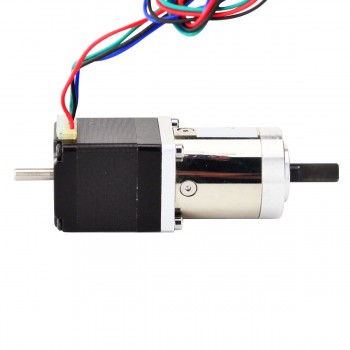

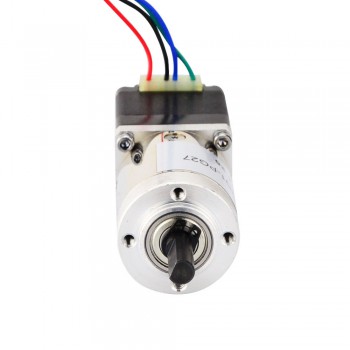

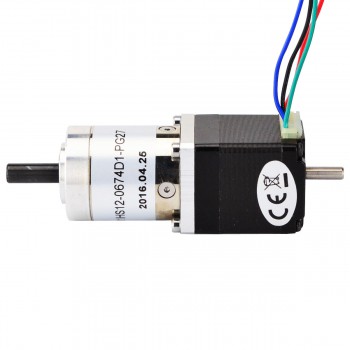

This Nema 11 stepper motor with 31mm body and 0.67A rated current, integrated a planetary gearbox of 26.85:1 gear ratio. A 3.9mm diameter rear shaft with screw holes on rear endcap are available.
Electrical Specification
Manufacturer Part Number: 11HS12-0674D1-PG27
Motor Type: Bipolar Stepper
Step Angle: 0.067 deg
Holding Torque without Gearbox: 6Ncm(8.50oz.in)
Rated Current/phase: 0.67A
Phase Resistance: 5.6ohms
Voltage: 3.8V
Inductance: 4.2mH ± 20%(1KHz)
Gearbox Specifications
Gearbox Type: Planetary
Gear Ratio: 26.85: 1
Gear Efficiency: 81%
Backlash at No-load: <=1 deg
Max.Permissible Torque: 3Nm(425oz.in)
Moment Permissible Torque: 5Nm(708oz.in)
Shaft Maximum Axial Load: 5N
Shaft Maximum Radial Load: 25N
Physical Specifications
Frame Size: 30 x 30mm
Motor Length: 31.5mm
Gearbox Length: 35mm
Front Shaft Diameter: Φ6mm
Front Shaft Length: 18mm
Front D-cut Length: 12mm
Rear Shaft Diameter: 3.9mm
Rear Shaft Length: 12mm
Number of Leads: 4
Lead Length: 300mm
Weight: 120g
Connection
A+
|
A-
|
B+
|
B-
|
Black
|
Green
|
Red
|
Blue
|
Resources
Full Datasheet: 11HS12-0674D1-PG27.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
Gearbox Specification | |
---|---|
Backlash at No-load(Max.°) | 1 |
Efficiency | 81% |
Gear Ratio | 26.85:1 |
Gearbox Length(mm) | 35 |
Gearbox Type | Planetary |
Max. Permissible Torque(Ncm) | 300 |
Max. Permissible Torque(oz.in) | 424.8 |
Moment Permissible Torque(Ncm) | 500 / 708.1 |
Shaft Maximum Axial Load(N) | 5 |
Shaft Maximum Radial Load(N) | 25 |
Motor Specification | |
Inductance(mH) | 4 |
Lead Length(mm) | 300 |
Motor Nema Size | Nema 11 |
No. of Lead | 4 |
Phase Resistance(ohm) | 5.6 |
Rated Current (A) | 0.67 |
Shaft Diameter(mm) | 6 |
Shaft Length(mm) | 18 |
Bipolar/Unipolar | Bipolar |
Holding Torque w/o Gearbox(Ncm) | 7 |
Holding Torque w/o Gearbox(oz.in) | 9.9 |
Motor Length(mm) | 31.5 |
Single Shaft/Dual Shaft | Dual Shaft |
Shaft Type | D-Cut |
Physical Specification | |
Weight(g) | 200 |
