Nema 11 Gearbox Stepper Motor Bipolar L=51mm 12Ncm 0.067 Deg 0.67A 6.2V with 27:1 Planetary Gearbox

Nema 11 Gearbox Stepper Motor Bipolar L=51mm 12Ncm 0.067 Deg 0.67A 6.2V with 27:1 Planetary Gearbox
NO.:11HS20-0674S-PG27
Review: Post a review
Special Offer in Black Friday 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till December 3th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$39.44
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $37.47 5%
10 $36.68 7%
50 $35.50 10%
100 $34.31 13%
Add To Cart

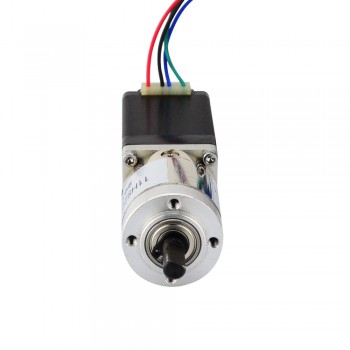

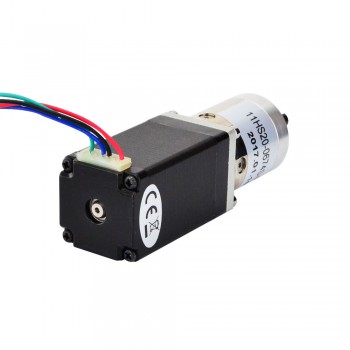

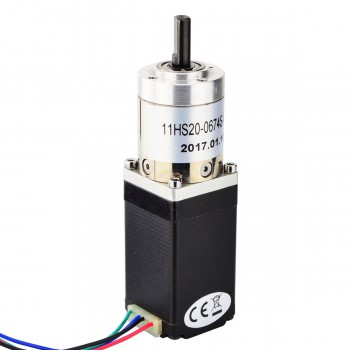

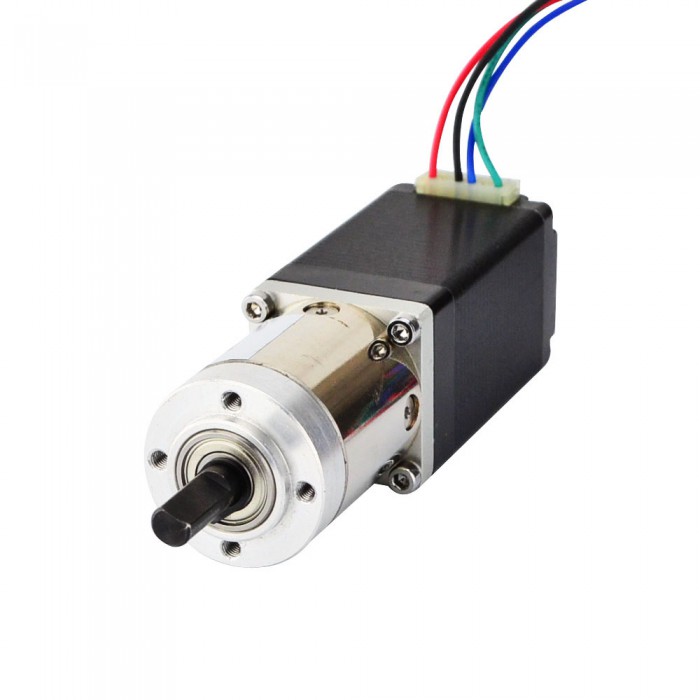

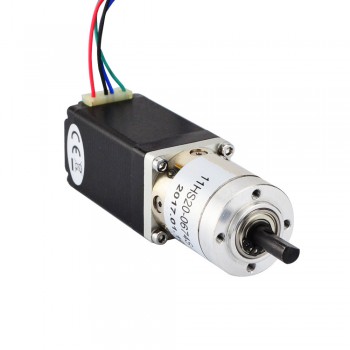

This Nema 11 stepper motor with 51mm body and 0.67A rated current, integrated a planetary gearbox of 26.85:1 gear ratio.



Electrical Specification

Manufacturer Part Number: 11HS20-0674S-PG27

Motor Type: Bipolar Stepper

Step Angle: 0.067 deg

Holding Torque without Gearbox: 12Ncm(16.99oz.in)

Rated Current/phase: 0.67A

Phase Resistance: 9.2ohms

Voltage: 6.2V

Inductance: 5.7mH ± 20%(1KHz)



Gearbox Specifications

Gearbox Type: Planetary

Gear Ratio: 26.85: 1

Gear Efficiency: 81%

Backlash at No-load: <=1 deg

Max.Permissible Torque: 3Nm(425oz.in)

Moment Permissible Torque: 5Nm(708oz.in)

Shaft Maximum Axial Load: 5N

Shaft Maximum Radial Load: 25N





Physical Specifications

Frame Size: 30 x 30mm

Motor Length: 50.5mm

Gearbox Length: 35mm

Shaft Diameter: Φ6mm

Shaft Length: 18mm

D-cut Length: 12mm

Number of Leads: 4

Lead Length: 500mm

Weight: 310g



Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Full Datasheet: 11HS20-0674S-PG27.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 11 Gearbox Stepper Motor Bipolar L=51mm 12Ncm 0.35 Deg 0.67A 6.2V with 5:1 Planetary Gearbox
Next: Nema 11 Geared Stepper Motor Bipolar L=51mm 12Ncm 0.035 Deg 0.67A 6.2V with 51:1 Planetary Gearbox
Gearbox Specification
Backlash at No-load(Max.°) 1
Efficiency 81%
Gear Ratio 26.85:1
Gearbox Length(mm) 35
Gearbox Type Planetary
Max. Permissible Torque(Ncm) 300
Max. Permissible Torque(oz.in) 424.8
Moment Permissible Torque(Ncm) 500 / 708.1
Shaft Maximum Axial Load(N) 5
Shaft Maximum Radial Load(N) 25
Motor Specification
Inductance(mH) 6.5
Lead Length(mm) 500
Motor Nema Size Nema 11
No. of Lead 4
Phase Resistance(ohm) 12
Rated Current (A) 0.67
Shaft Diameter(mm) 6
Shaft Length(mm) 18
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 14
Holding Torque w/o Gearbox(oz.in) 19.8
Motor Length(mm) 51
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Physical Specification
Weight(g) 400
