Nema 11 Gear Stepper Motor Bipolar L=31mm 6Ncm 0.018°0.67A 3.8V with 100:1 Gearbox Dual D-Cut Shaft

Nema 11 Gear Stepper Motor Bipolar L=31mm 6Ncm 0.018°0.67A 3.8V with 100:1 Gearbox Dual D-Cut Shaft
NO.:11HS12-0674D1-PG100
Post a review
Special Offer in July 2024:
  • $10 Off Over $150
  • $20 Off Over $300
  • $35 Off Over $500
  • $55 Off Over $800
  • $70 Off Over $1000
  • $100 Off Over $1500
  • Enjoy Discount at Checkout!
  • Valid Till July 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$39.44
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $37.47 5%
10 $36.68 7%
50 $35.50 10%
100 $34.31 13%
Add To Cart

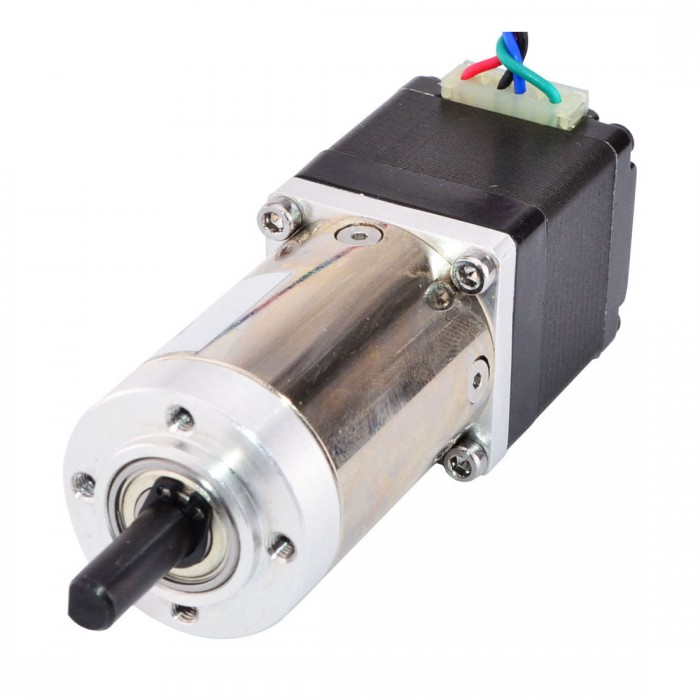

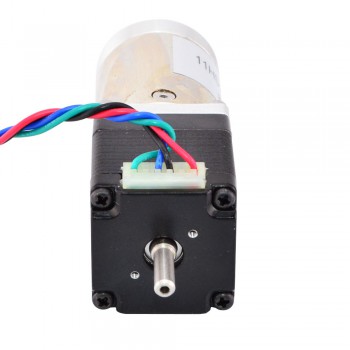

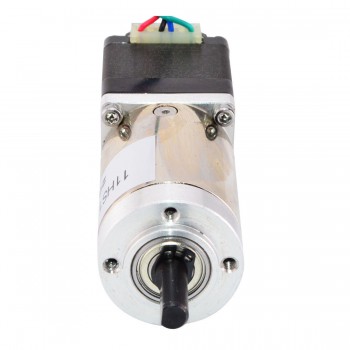

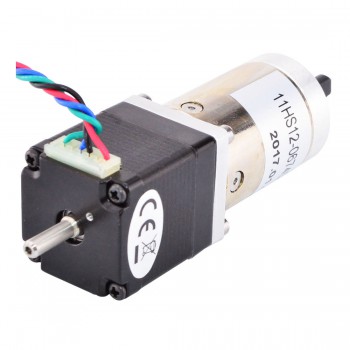

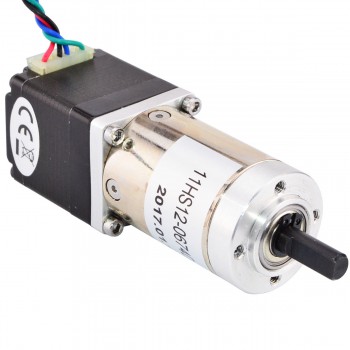

This Nema 11 stepper motor with 31mm body and 0.67A rated current, integrated a planetary gearbox of 99.05:1 gear ratio.  A 3.9mm diameter rear shaft with screw holes on rear endcap are available.



Electrical Specification

  • Manufacturer Part Number: 11HS12-0674D1-PG100
  • Motor Type: Bipolar Stepper
  • Step Angle: 0.018°
  • Holding Torque without Gearbox: 6Ncm(8.50oz.in)
  • Rated Current/phase: 0.67A
  • Phase Resistance: 5.6ohms
  • Voltage: 3.8V
  • Inductance: 4.2mH±20%(1KHz)

Gearbox Specifications

  • Gearbox Type: Planetary
  • Gear Ratio: 99.05: 1
  • Gear Efficiency: 73%
  • Backlash at No-load: <=1°
  • Max.Permissible Torque: 4Nm(566oz.in)
  • Moment Permissible Torque: 6Nm(850oz.in)
  • Shaft Maximum Axial Load: 5N
  • Shaft Maximum Radial Load: 25N

Physical Specifications

  • Frame Size: 30 x 30mm
  • Motor Length: 31.5mm
  • Gearbox Length: 42.7mm
  • Front Shaft Diameter: Φ6mm
  • Front Shaft Length: 18mm
  • Front D-cut Length: 12mm
  • Rear Shaft Diameter: 3.9mm
  • Rear Shaft Length: 12mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight: 200g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 11 Gearbox Stepper Motor Bipolar L=31mm 6Ncm 0.067 Deg 0.67A 3.8V with 27:1 Planetary Gearbox
Next: Nema 11 Geared Stepper Motor Bipolar L=51mm 12Ncm 0.094 Deg 0.67A 6.2V with19:1 Planetary Gearbox
Gearbox Specification
Backlash at No-load(Max.°) 1
Efficiency 73%
Gear Ratio 99.51:1
Gearbox Length(mm) 42.7
Gearbox Type Planetary
Max. Permissible Torque(Ncm) 400
Max. Permissible Torque(oz.in) 566.4
Moment Permissible Torque(Ncm) 849.7
Shaft Maximum Axial Load(N) 5
Shaft Maximum Radial Load(N) 25
Motor Specification
Inductance(mH) 4
Lead Length(mm) 300
Motor Nema Size Nema 11
No. of Lead 4
Phase Resistance(ohm) 5.6
Rated Current (A) 0.67
Shaft Diameter(mm) 6
Shaft Length(mm) 18
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 7
Holding Torque w/o Gearbox(oz.in) 9.9
Motor Length(mm) 31.5
Single Shaft/Dual Shaft Dual Shaft
Shaft Type D-Cut
Physical Specification
Weight(g) 200
