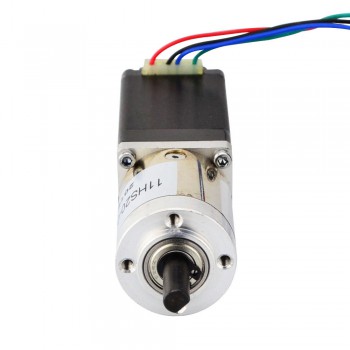

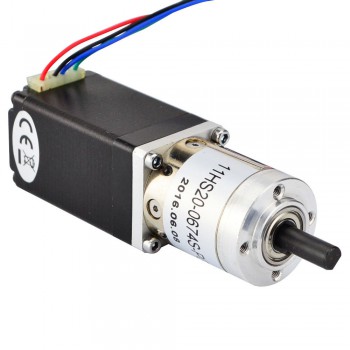

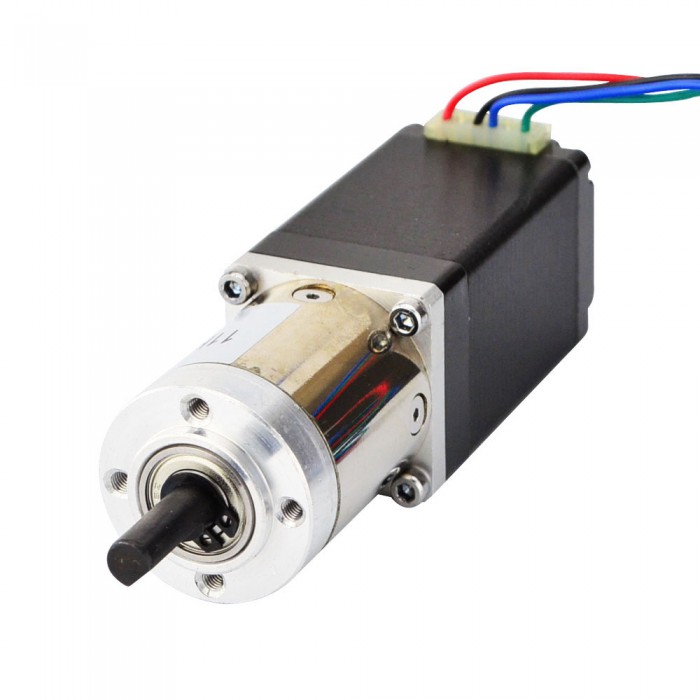

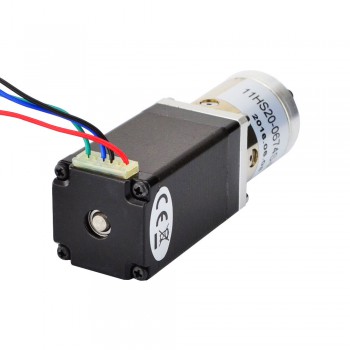

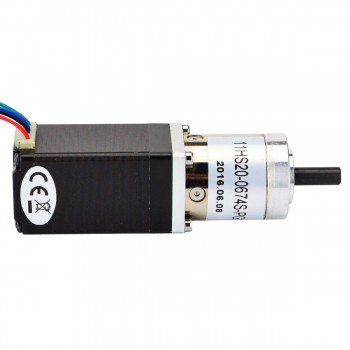

Nema 11 Stepper Motor Bipolar L=51mm w/ Gear Ratio 19:1 Planetary Gearbox

NO.:SKU:11HS20-0674S-PG19
Review: Post a review
Latest price:$41.28
Buy It Now:$31.75
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - 99 100 - Max
$31.06 $30.37 $29.67 $28.99
Add To Cart

This Nema 11 stepper motor with 51mm body and 0.67A rated current, integrated a planetary gearbox of 19.19:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.

Electrical Specification

  • Manufacturer Part Number: 11HS20-0674S-PG19
  • Motor Type: Bipolar Stepper
  • Step Angle: 0.094
  • Holding Torque without Gearbox: 12Ncm(16.99oz.in)
  • Rated Current/phase: 0.67A
  • Phase Resistance: 9.2ohms
  • Voltage: 6.2V
  • Inductance: 5.7mH ± 20%(1KHz)

Gearbox Specifications

  • Gearbox Type: Planetary
  • Gear Ratio: 19.19: 1
  • Gear Efficiency: 81%
  • Backlash at No-load: <=1 deg
  • Max.Permissible Torque: 3Nm(425oz.in)
  • Moment Permissible Torque: 5Nm(708oz.in)
  • Shaft Maximum Axial Load: 5N
  • Shaft Maximum Radial Load: 25N

Physical Specifications

  • Frame Size: 30 x 30mm
  • Motor Length: 50.5mm
  • Gearbox Length: 35mm
  • Shaft Diameter: Φ6mm
  • Shaft Length: 18mm
  • D-cut Length: 12mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 400g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Nema 11 Stepper L=31mm w/ Rear Shaft & Screw Hole Gear Ratio 100:1 Gearbox
Next: Nema 11 Stepper Motor Bipolar L=45mm w/ Gear Ratio 5:1 Planetary Gearbox
Gearbox Specification
Backlash at No-load(Max.°) 1
Efficiency 81%
Gear Ratio 19.2:1
Gearbox Length(mm) 35
Gearbox Type Planetary
Max. Permissible Torque(Ncm) 300
Max. Permissible Torque(oz.in) 424.8
Moment Permissible Torque(Ncm) 708.1
Shaft Maximum Axial Load(N) 5
Shaft Maximum Radial Load(N) 25
Motor Specification
Inductance(mH) 6.5
Lead Length(mm) 500
Motor Nema Size Nema 11
No. of Lead 4
Phase Resistance(ohm) 12
Rated Current (A) 0.67
Shaft Diameter(mm) 6
Shaft Length(mm) 18
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 14
Holding Torque w/o Gearbox(oz.in) 19.8
Motor Length(mm) 51
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Physical Specification
Weight(g) 400
