Nema 11 Geared Stepper Motor Bipolar L=51mm 12Ncm 0.035 Deg 0.67A 6.2V with 51:1 Planetary Gearbox
Special Offer in December 2023:
- $10 Off Over $150
- $20 Off Over $300
- $35 Off Over $500
- $55 Off Over $800
- $70 Off Over $1000
- $100 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till December 7th, 2023
- Note:No coupon code needed, please place order directly!
Our Price:$40.57

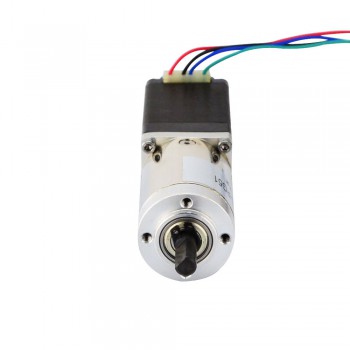

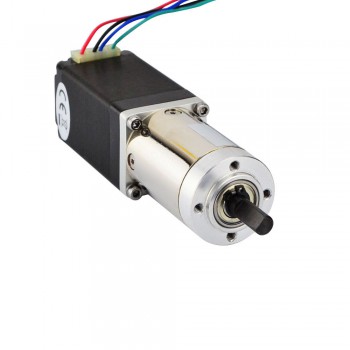

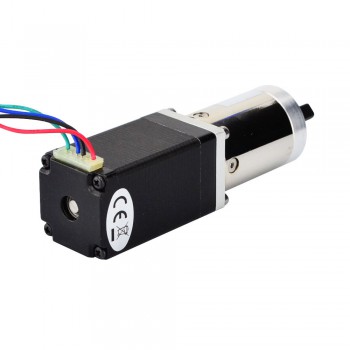

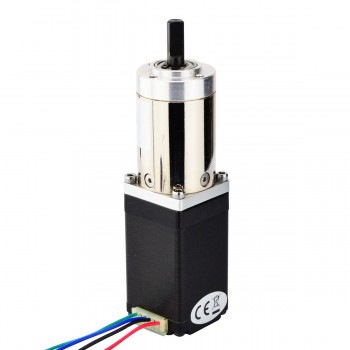

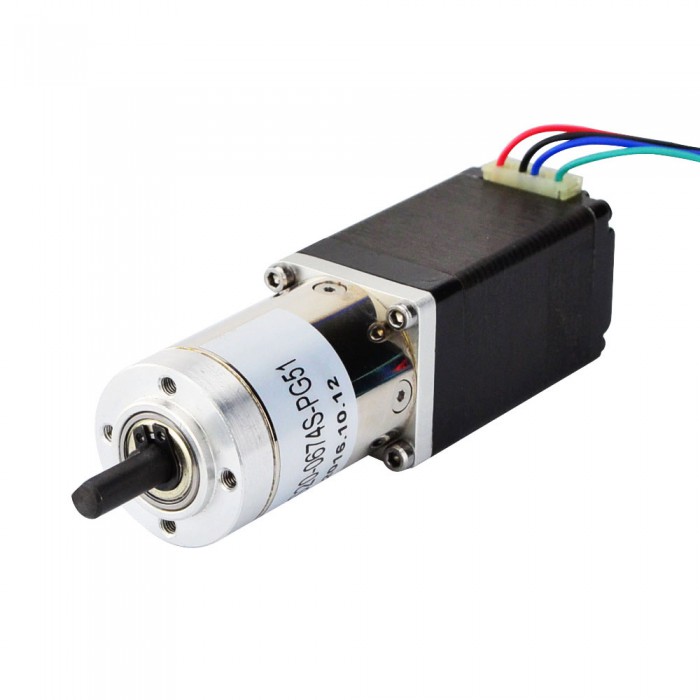

This Nema 11 stepper motor with 51mm body and 0.67A rated current, integrated a planetary gearbox of 50.9:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.
Electrical Specification
- Manufacturer Part Number: 11HS20-0674S-PG51
- Motor Type: Bipolar Stepper
- Step Angle: 0.035 deg
- Holding Torque without Gearbox: 12Ncm(16.99oz.in)
- Rated Current/phase: 0.67A
- Phase Resistance: 9.2ohms
- Voltage: 6.2V
- Inductance: 5.7mH ± 20%(1KHz)
Gearbox Specifications
- Gearbox Type: Planetary
- Gear Ratio: 50.9: 1
- Gear Efficiency: 73%
- Backlash at No-load: <=1 deg
- Max.Permissible Torque: 4Nm(566oz.in)
- Moment Permissible Torque: 6Nm(850oz.in)
- Shaft Maximum Axial Load: 5N
- Shaft Maximum Radial Load: 25N
Physical Specifications
- Frame Size: 30 x 30mm
- Motor Length: 50.5mm
- Gearbox Length: 42.7mm
- Shaft Diameter: Φ6mm
- Shaft Length: 18mm
- D-cut Length: 12mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 330g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
- Full Datasheet: 11HS20-0674S-PG51.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Gearbox Specification | |
|---|---|
| Backlash at No-load(Max.°) | 1 |
| Efficiency | 73% |
| Gear Ratio | 51.89:1 |
| Gearbox Length(mm) | 42.7 |
| Gearbox Type | Planetary |
| Max. Permissible Torque(Ncm) | 400 |
| Max. Permissible Torque(oz.in) | 566.4 |
| Moment Permissible Torque(Ncm) | 849.7 |
| Shaft Maximum Axial Load(N) | 5 |
| Shaft Maximum Radial Load(N) | 25 |
| Motor Specification | |
| Inductance(mH) | 6.5 |
| Lead Length(mm) | 500 |
| Motor Nema Size | Nema 11 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 12 |
| Rated Current (A) | 0.67 |
| Shaft Diameter(mm) | 6 |
| Shaft Length(mm) | 18 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque w/o Gearbox(Ncm) | 14 |
| Holding Torque w/o Gearbox(oz.in) | 19.8 |
| Motor Length(mm) | 51 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Type | D-Cut |
| Physical Specification | |
| Weight(g) | 450 |
