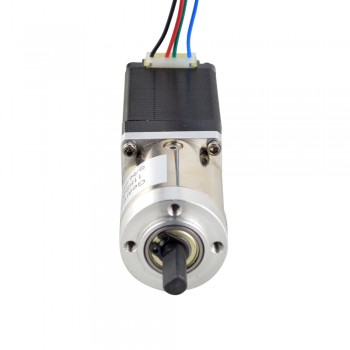

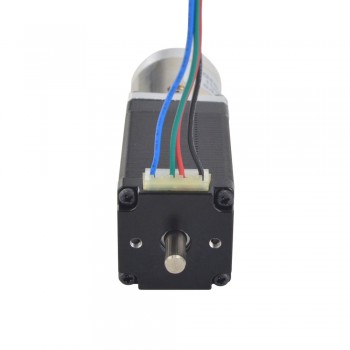

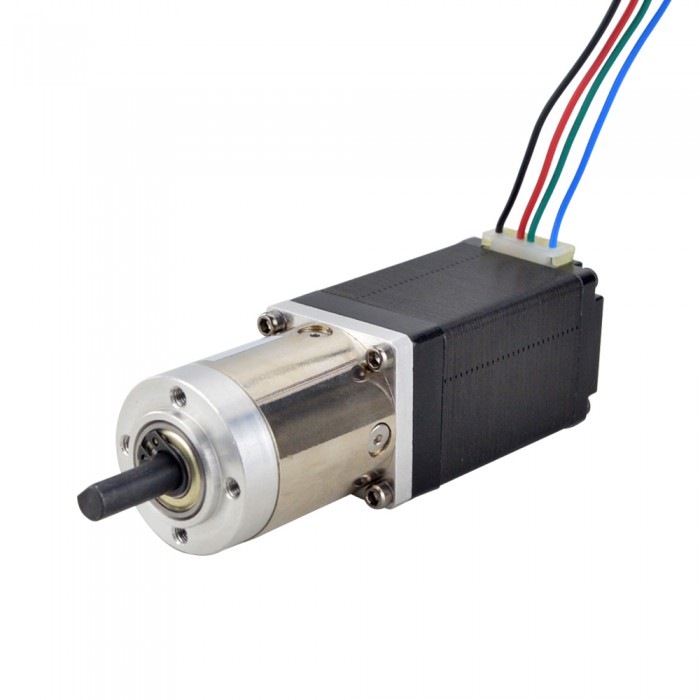

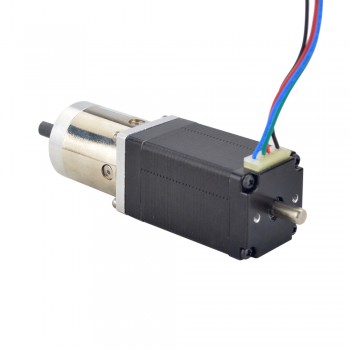

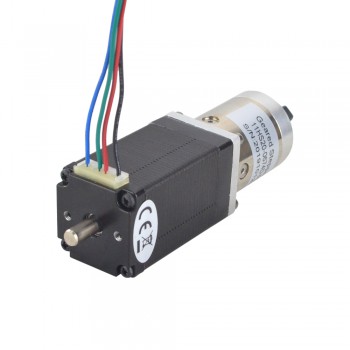

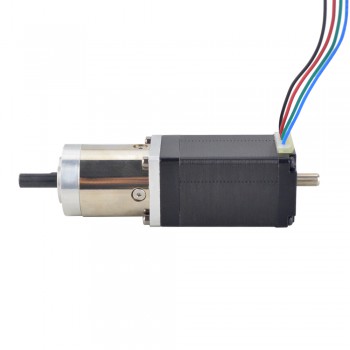

Nema 11 Geared Dual Shaft Stepper Motor Bipolar L=51mm w/ Gear Ratio 14:1 Planetary Gearbox 9.5mm Rear Shaft Length

NO.:11HS20-0674D-PG14-AR3
Review: Post a review
Black Friday Special Offer 2020:
  • 6% Off on Total Order Amount
  • Enjoy Discount at Checkout
  • No Need Coupon Code!
  • Valid Till 3rd December, 2020
Latest price:$51.91
Buy It Now:$39.94
Quantity:- +

Buy More, Save more!
5 - 9 10 - 49 50 - 99 100 - Max
$38.99 $38.04 $37.09 $36.13
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 11HS20-0674D-PG14-AR3
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque without Gearbox: 0.14 Ncm(19.88 oz.in)
  • Rated Current/phase: 0.67 A
  • Phase Resistance: 12 ohms
  • Inductance: 6.5 mH ± 20%(1KHz)

Gearbox Specifications

  • Gearbox Type: Planetary
  • Gear Ratio: 13.73: 1
  • Efficiency: 81%
  • Backlash at No-load: <=1 deg
  • Max.Permissible Torque: 3 Nm(424.92 oz.in)
  • Moment Permissible Torque: 5 Nm(708.2 oz.in)
  • Shaft Maximum Axial Load: 5 N
  • Shaft Maximum Radial Load: 25 N

Physical Specifications

  • Gearbox Type: Planetary
  • Frame Size: 28 x 28 mm
  • Motor Length: 51 mm
  • Gearbox Length: 35.8 mm
  • Front Shaft Diameter: Φ6 mm
  • Front Shaft Length: 18 mm
  • D-cut Length: 12 mm
  • Rear Shaft Length: 9.5 mm
  • Rear Shaft Diameter: Φ5 mm
  • Number of Leads: 4
  • Lead Length: 500 mm
  • Weight: 0.3kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 11 Geared Motor 0.71 A Bipolar L=51mm w/ Gear Ratio 99.05:1 Planetary Gearbox
Next: Nema 11 Geared Stepper Motor L=31mm w/ Rear Shaft & Screw Hole Gear Ratio 5:1 Gearbox
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 6.5
Phase Resistance(ohm) 12
Rated Current (A) 0.67
Motor Specification
Holding Torque w/o Gearbox(Ncm) 14
Holding Torque w/o Gearbox(oz.in) 19.88
Motor Nema Size Nema 11
Physical Specification
Lead Length(mm) 500
No. of Lead 4
Shaft Diameter(mm) 6
Shaft Length(mm) 18
Shaft Type D-Cut
Single Shaft/Dual Shaft Dual Shaft
Weight(g) 300
