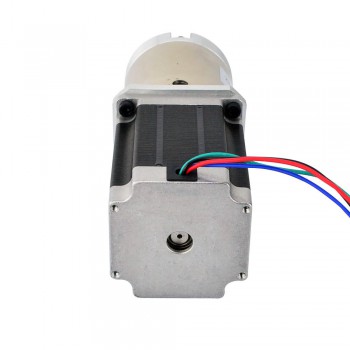

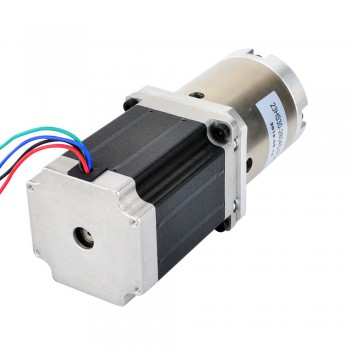

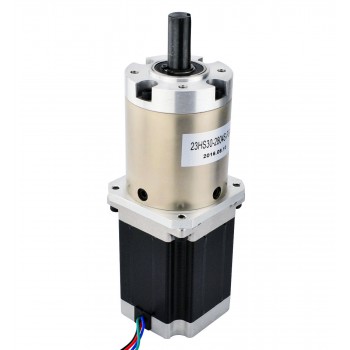

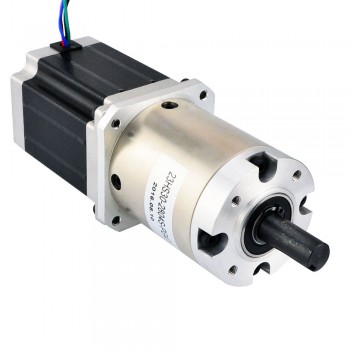

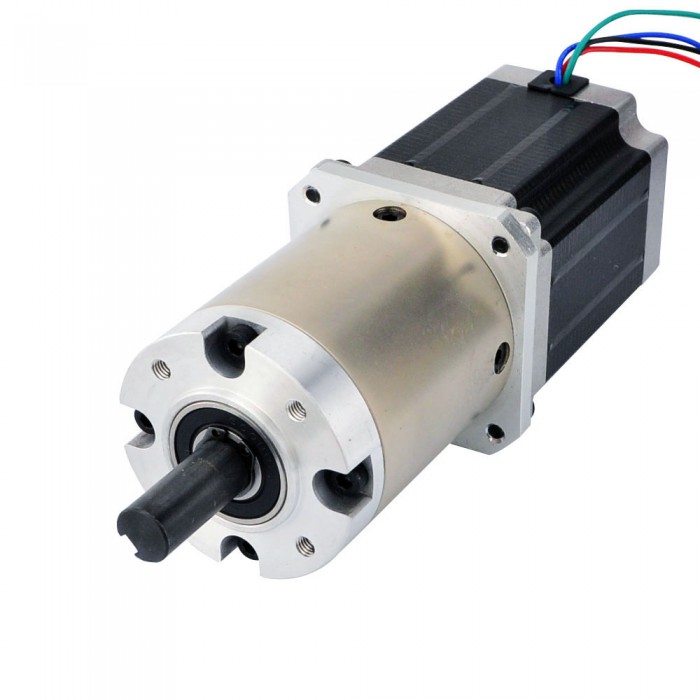

Nema 23 Stepper Motor Bipolar L=76mm 1.89Nm 0.039 deg 2.8A 3.2V with 47:1 Planetary Gearbox

Nema 23 Stepper Motor Bipolar L=76mm 1.89Nm 0.039 deg 2.8A 3.2V with 47:1 Planetary Gearbox
NO.:23HS30-2804S-PG47
Post a review
Our Price:$73.53
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $69.85 5%
10 $68.38 7%
50 $66.18 10%
100 $63.97 13%
Add To Cart

This Nema 23 stepper motor with 76mm body and 2.8A rated current, integrated a planetary gearbox of 46.656:1 gear ratio.  It's suitable for applications that with limited space but need low speed and high torque.



Electrical Specification

  • Manufacturer Part Number: 23HS30-2804S-PG47
  • Motor Type: Bipolar Stepper
  • Step Angle: 0.039 deg
  • Holding Torque without Gearbox: 1.89Nm(267.65oz.in)
  • Rated Current/phase: 2.8A
  • Phase Resistance: 1.13ohms
  • Voltage: 3.2V
  • Inductance: 5.4mH ± 20%(1KHz)

Gearbox Specifications

  • Gearbox Type: Planetary
  • Gear Ratio: 46.656: 1
  • Efficiency: 73%
  • Backlash at No-load: <=1.5 deg
  • Max.Permissible Torque: 40Nm(5664oz.in)
  • Moment Permissible Torque: 60Nm(8497oz.in)
  • Shaft Maximum Axial Load: 100N
  • Shaft Maximum Radial Load: 200N

Physical Specifications

  • Frame Size: 60 x 60mm
  • Motor Length: 76mm
  • Gearbox Length: 72mm
  • Shaft Diameter: Φ12mm
  • Shaft Length: 30mm
  • Key-way length: 20mm
  • Key-way width: 4mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 2.3kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 23 Stepper Motor Bipolar L=76mm 1.89Nm 0.42 deg 2.8A 3.2V with 15:1 Planetary Gearbox
Next: Nema 17 Stepper Motor L=39mm 39Ncm 0.6 deg 1.68A 2.7V with 3:1 Planetary Gearbox
Gearbox Specification
Backlash at No-load(Max.°) 1.5
Efficiency 73%
Gear Ratio 46.656:1
Gearbox Length(mm) 72
Gearbox Type Planetary
Max. Permissible Torque(Ncm) 4000
Max. Permissible Torque(oz.in) 5664.5
Moment Permissible Torque(Ncm) 8496.7
Shaft Maximum Axial Load(N) 100
Shaft Maximum Radial Load(N) 200
Motor Specification
Inductance(mH) 5.4
Lead Length(mm) 500
Motor Nema Size Nema 23
No. of Lead 4
Phase Resistance(ohm) 1.13
Rated Current (A) 2.8
Shaft Diameter(mm) 12
Shaft Length(mm) 30
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 189
Holding Torque w/o Gearbox(oz.in) 267.6
Motor Length(mm) 76
Single Shaft/Dual Shaft Single Shaft
Shaft Type Key-Way
Physical Specification
Weight(g) 2000
