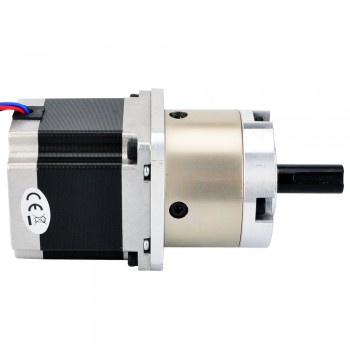

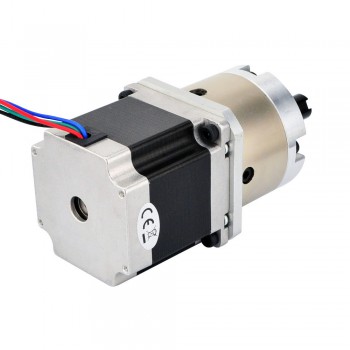

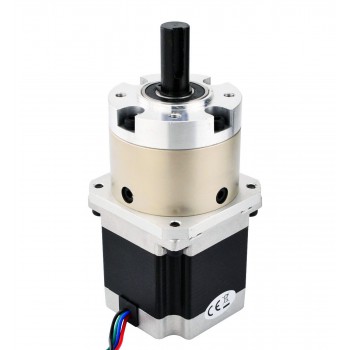

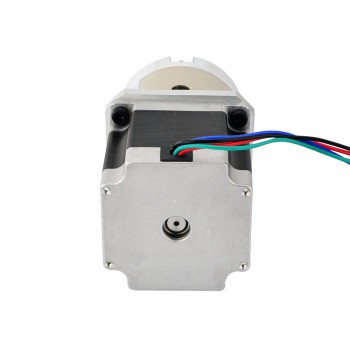

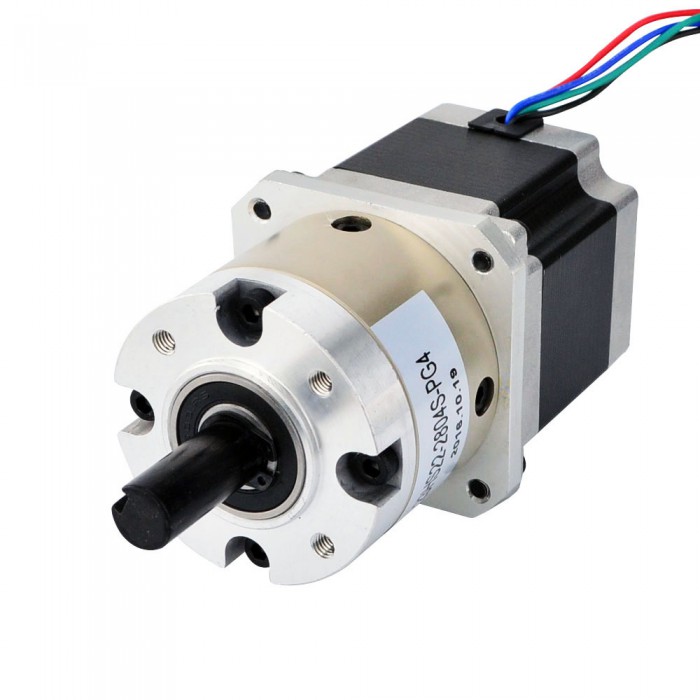

Nema 23 Stepper Motor Bipolar L=56mm 1.25Nm 0.42 deg 2.8A 2.6V with 4:1 Planetary Gearbox
Special Offer in April 2024:
- $10 Off Over $150
- $20 Off Over $300
- $35 Off Over $500
- $55 Off Over $800
- $70 Off Over $1000
- $100 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till April 30th, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$64.02
This Nema 23 stepper motor with 56mm body and 2.8A rated current, integrated a planetary gearbox of 4.25:1 gear ratio. It's suitable for applications that with limited space but need low speed and high torque.
Electrical Specification
- Manufacturer Part Number: 23HS22-2804S-PG4
- Motor Type: Bipolar Stepper
- Step Angle: 0.42 deg
- Holding Torque without Gearbox: 1.25Nm(177.01oz.in)
- Rated Current/phase: 2.8A
- Phase Resistance: 0.9ohms
- Voltage: 2.6V
- Inductance: 2.5mH ± 20%(1KHz)
Gearbox Specifications
- Gearbox Type: Planetary
- Gear Ratio: 4.25
- Efficiency: 90%
- Backlash at No-load: <=1.5 deg
- Max.Permissible Torque: 20Nm(2832oz.in)
- Moment Permissible Torque: 30Nm(4248oz.in)
- Shaft Maximum Axial Load: 100N
- Shaft Maximum Radial Load: 200N
Physical Specifications
- Frame Size: 60 x 60mm
- Motor Length: 56mm
- Gearbox Length: 43.5mm
- Shaft Diameter: Φ12mm
- Shaft Length: 30mm
- Key-way length: 20mm
- Key-way width: 4mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 1.3kg
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
- Full Datasheet: 23HS22-2804S-PG4.pdf
- Torque Curve: 23HS22-2804S-PG4_Torque_Curve.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Gearbox Specification | |
|---|---|
| Backlash at No-load(Max.°) | 1.5 |
| Efficiency | 90% |
| Gear Ratio | 4.25:1 |
| Gearbox Length(mm) | 48 |
| Gearbox Type | Planetary |
| Max. Permissible Torque(Ncm) | 2000 |
| Max. Permissible Torque(oz.in) | 2832.2 |
| Moment Permissible Torque(Ncm) | 4248.4 |
| Shaft Maximum Axial Load(N) | 100 |
| Shaft Maximum Radial Load(N) | 200 |
| Motor Specification | |
| Inductance(mH) | 2.5 |
| Lead Length(mm) | 500 |
| Motor Nema Size | Nema 23 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 0.9 |
| Rated Current (A) | 2.8 |
| Shaft Diameter(mm) | 12 |
| Shaft Length(mm) | 30 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque w/o Gearbox(Ncm) | 125 |
| Holding Torque w/o Gearbox(oz.in) | 177 |
| Motor Length(mm) | 56 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Type | Key-Way |
| Physical Specification | |
| Weight(g) | 1200 |
