Nema 23 Stepper Motor Bipolar L=76mm 1.89Nm 0.36 deg 2.8A 3.2V with 5:1 Spur Gearbox

Nema 23 Stepper Motor Bipolar L=76mm 1.89Nm 0.36 deg 2.8A 3.2V with 5:1 Spur Gearbox
NO.:23HS30-2804S-SG5
Review: Post a review
Special Offer in March 2024:
  • 5% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till March 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$47.21
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $44.85 5%
10 $43.91 7%
50 $42.49 10%
100 $41.07 13%
Add To Cart

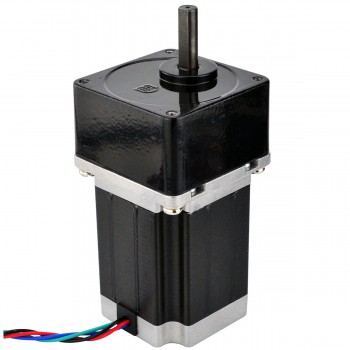

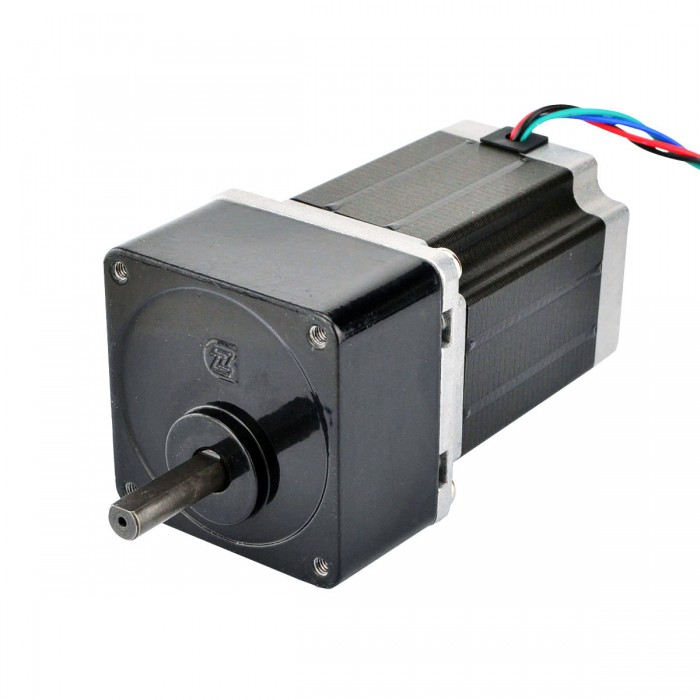

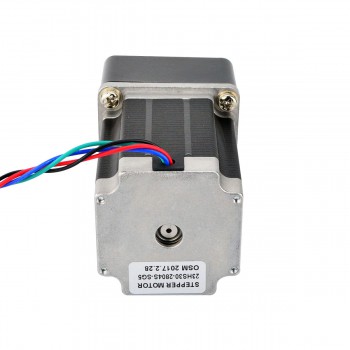

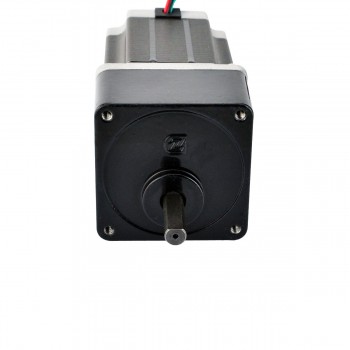

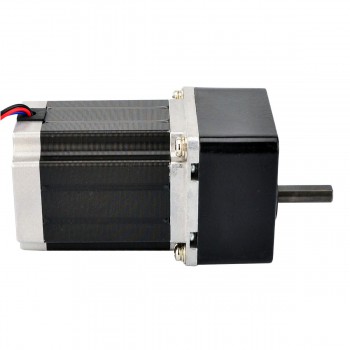

This Nema 23 stepper motor with 76mm body and 2.8A rated current, integrated a 60mm square spur gearbox of 5:1 gear ratio.  It's suitable for applications that with limited space but need low speed and high torque.



Electrical Specification

  • Manufacturer Part Number: 23HS30-2804S-SG5
  • Motor Type: Bipolar Stepper
  • Step Angle: 0.36 deg
  • Holding Torque without Gearbox: 1.89Nm(267.65oz.in)
  • Rated Current/phase: 2.8A
  • Phase Resistance: 1.13ohms
  • Voltage: 3.2V
  • Inductance: 5.4mH ± 20%(1KHz)

Gearbox Specifications

  • Gearbox Type: Spur
  • Gear Ratio: 5
  • Efficiency: 80%
  • Backlash at No-load: <=3 deg
  • Max.Permissible Torque: 5Nm

Physical Specifications

  • Frame Size: 60 x 60mm
  • Motor Length: 78mm
  • Gearbox Length: 32mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 28mm
  • D-cut Length: 25mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 1.5kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 23 Stepper Motor L=56mm 103Ncm 0.018 deg 2.8A 2.5V with 100:1 Planetary Gearbox
Next: Nema 23 Stepper Motor Bipolar L=76mm 1.89Nm 0.18 deg 2.8A 3.2V with 10:1 Spur Gearbox
Gearbox Specification
Backlash at No-load(Max.°) 3
Efficiency 80%
Gear Ratio 5:1
Gearbox Length(mm) 32
Gearbox Type Spur
Max. Permissible Torque(Ncm) 500
Max. Permissible Torque(oz.in) 708.1
Motor Specification
Inductance(mH) 5.4
Lead Length(mm) 500
Motor Nema Size Nema 23
No. of Lead 4
Phase Resistance(ohm) 1.13
Rated Current (A) 2.8
Shaft Diameter(mm) 8
Shaft Length(mm) 28
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 189
Holding Torque w/o Gearbox(oz.in) 267.6
Motor Length(mm) 78
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Physical Specification
Weight(g) 1500
