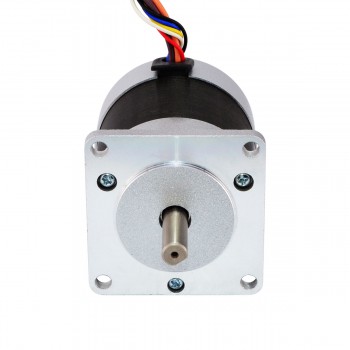

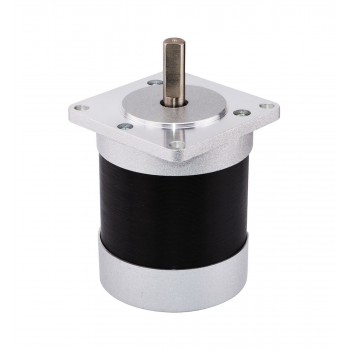

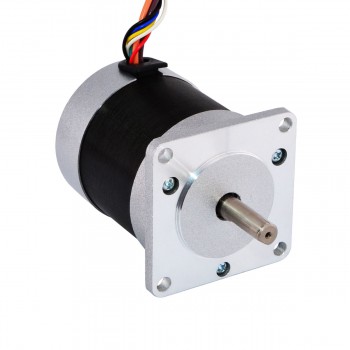

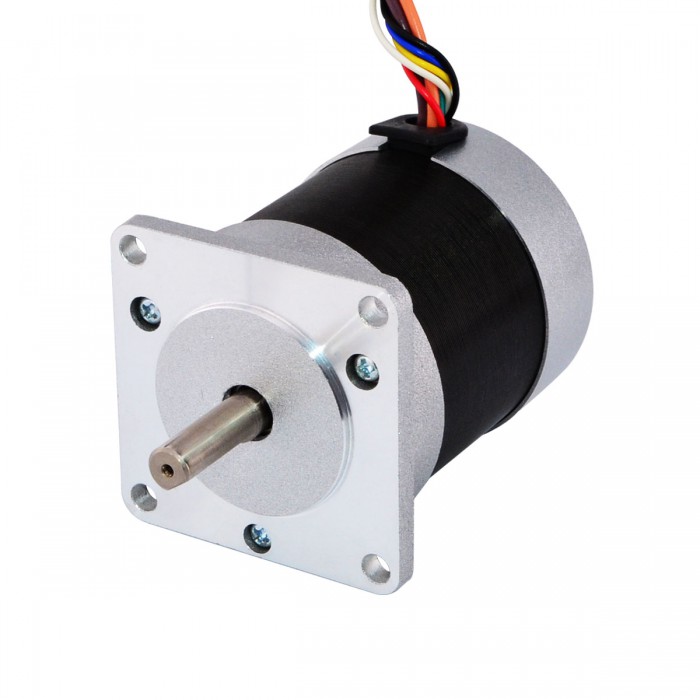

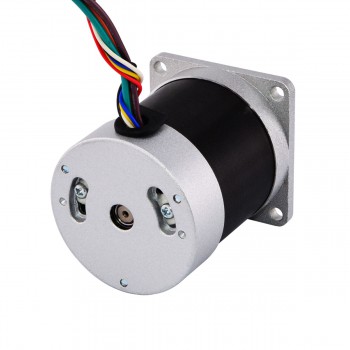

24V BLDC Motor 3500RPM 0.37Nm 134W 9.0A Ф57x69mm 57BLR Brushless DC Motor
The 57BLR70-24-01 BLDC motor delivers 0.37 Nm at 3500 rpm on 24 V, with a 57 mm frame, D-cut shaft, and ball bearings.
Electrical Specification
Manufacturer Part Number: 57BLR70-24-01
Phase: 3
Poles: 4
Rated Voltage: 24V
Rated Speed: 3500±10%RPM
Rated Torque: 0.37Nm(52.40oz.in)
Rated Current: 9±10%A
Rated Power: 134W
Insulation Class: Class B
Insulation Resistance: 100MΩ Min @500VDC
Dielectric Strength Test: 500VAC for 1 Minute
Physical Specification
Frame Size: Φ57mm
Body Length: 69.1mm
Shaft Diameter: Φ8mm
Shaft Length: 25mm
Shaft Type: D-cut
D-cut Length: 20mm
Number of Leads: 8
Lead Length: 300mm
Bearing Type: NMB Ball Bearing, C3
Weight: 0.75kg
Connection
|
U |
V |
W |
+5V |
GND |
A |
B |
C |
|
ORG |
GRN |
BRW |
RED |
BLK |
YEL |
WHT |
BLU |
| BLDC Motor Specification | |
|---|---|
| Bearing Type | NMB Ball Bearing, C3 |
| Insulation Class | Class B |
| No. of Lead | 8 |
| No. of Phases | 3 |
| No. of Poles | 4 |
| Rated Current(A) | 9 |
| Rated Power(W) | 134 |
| Rated Speed(rpm) | 3500±10% |
| Rated Torque(Nm) | 0.37 |
| Rated Torque(oz.in) | 52.4 |
| Rated Voltage(V) | 24 |
| Sensor Type | Hall Sensor |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 25 |
| Flange Size(mm) | Ф57 |
| Body Length(mm) | 69.1 |
| Physical Specification | |
| Weight(g) | 750 |
