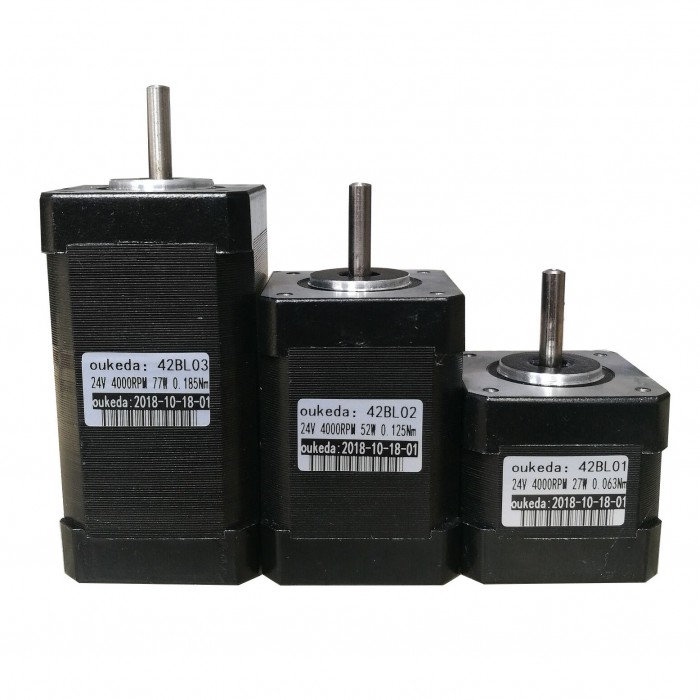

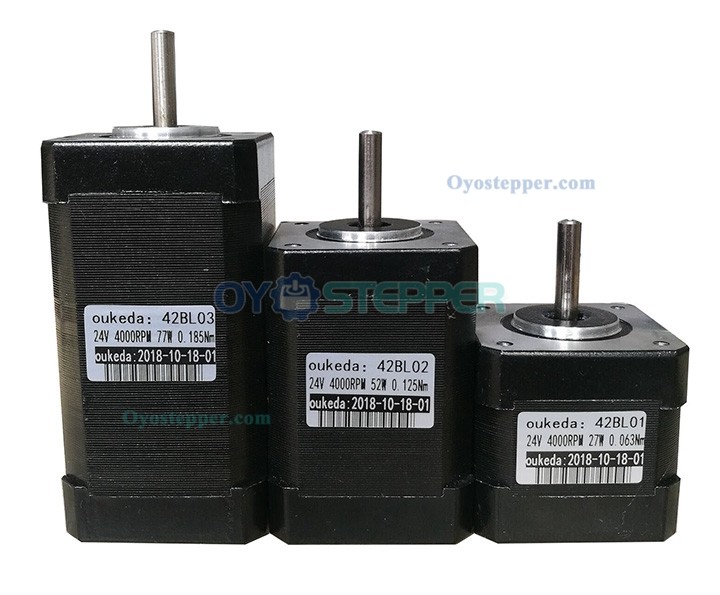

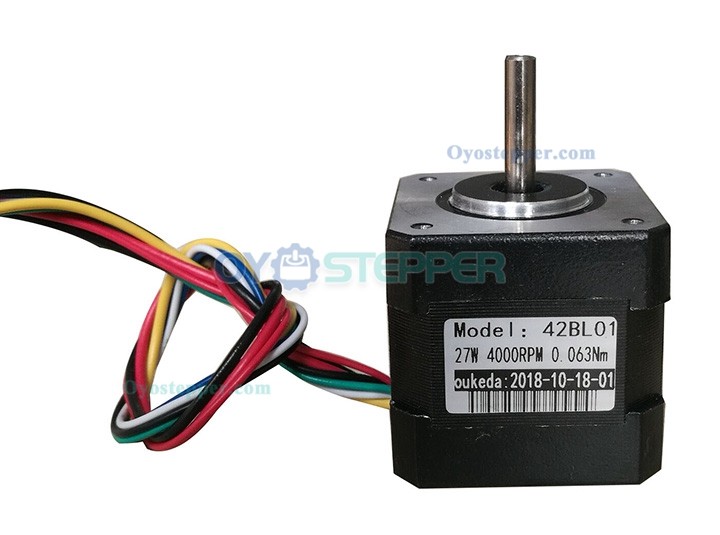

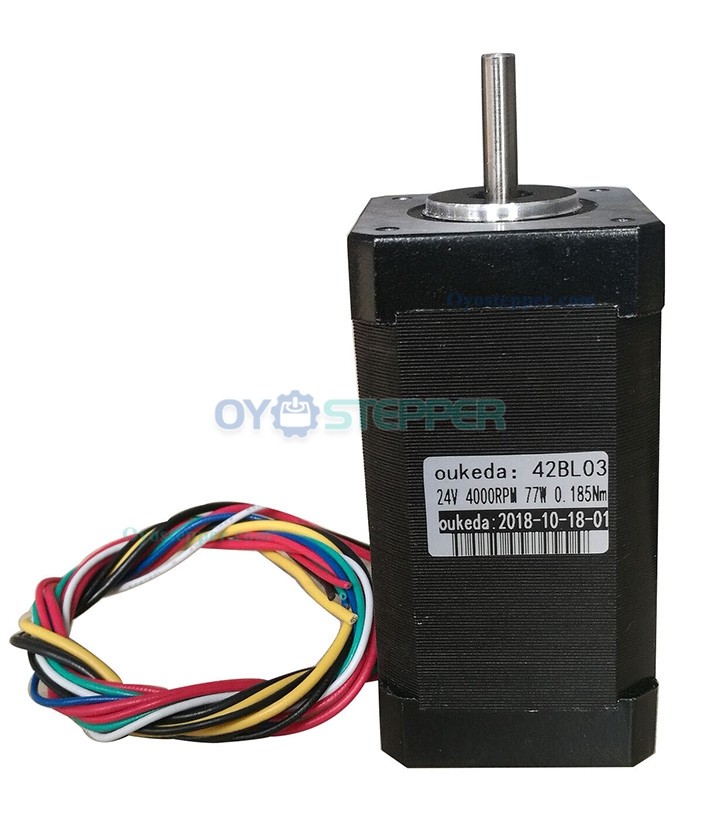

Oukeda Brushless DC Motor 3 Phase 24VDC 6.3Ncm/12.5Ncm/18.8Ncm 4000RPM BLDC Motor
Oukeda Brushless DC Motor 3 Phase 24VDC 6.3Ncm/12.5Ncm/18.8Ncm 4000RPM BLDC Motor
Electrical Specification:
| Model | 42BL01 | 42BL02 | 42BL03 |
| Number of poles： | 8 | ||
| Number of Phase: | 3 | ||
| Rated voltage (VDC) | 24 | ||
| Rated speed (RPM) | 4000 | ||
| Holding torque (Ncm) | 6.3 | 12.5 | 18.8 |
| Output power (Watts) | 26 | 52 | 78 |
| Peak torque (Ncm) | 18 | 38 | 60 |
| Peak current (Amps) | 4.6 | 9.4 | 14.1 |
| Phase resistance (Ohms) | 1.8 | 0.9 | 0.6 |
| Phase Resistance (mH) | 0.54 | 0.27 | 0.18 |
| Torque constant (N-m/Amps) | 0.042 | 0.043 | 0.044 |
| Back EMF (V/kRPM) | 4.4 | 4.5 | 4.65 |
| Moment of Inertia g·cm2 | 24 | 48 | 72 |
| Body length (L) mm | 47 | 63 | 79 |
| Weight (g) | 330 | 0.48 | 0.63 |
.jpg "Oukeda Brushless DC Motor 3 Phase 24VDC 6.3Ncm/12.5Ncm/18.8Ncm 4000RPM BLDC Motor")
.jpg "Oukeda Brushless DC Motor 3 Phase 24VDC 6.3Ncm/12.5Ncm/18.8Ncm 4000RPM BLDC Motor")
.jpg "Oukeda Brushless DC Motor 3 Phase 24VDC 6.3Ncm/12.5Ncm/18.8Ncm 4000RPM BLDC Motor")
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Holding Torque (Ncm) | 6.3 / 12.5 / 18.8 |
| No. of Phase | 3 |
| Rated Voltage(V) | 24 |
| Rated Speed(rpm) | 4000 |
