Oukeda 24V Brushless DC Motor 4000RPM47Ncm(46.73oz.in) 200W 12A 3 Phase Ф57mm BLDC Motor
Oukeda 24V Brushless DC Motor 4000RPM47Ncm(46.73oz.in) 200W 12A 3 Phase Ф57mm BLDC Motor
Electrical Specification:
Manufacturer Part Number:OK57BLS115-240-200
Phase: 3
Poles: 4
Rated Voltage: 24V
Rated Speed: 4000±10%RPM
Rated Torque: 47Ncm(46.73oz.in)
Rated Current Max:12A
No-loading Current Max:1A
Rated Power: 200W;

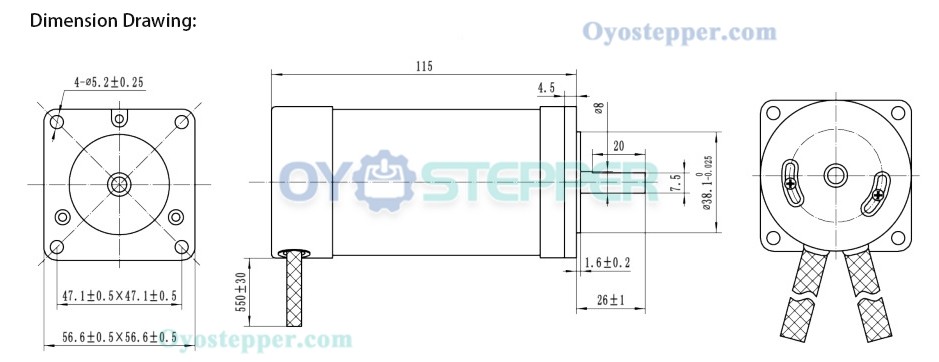

Physical Specification:
Frame Size: Φ57mm
Body Length: 115mm
Shaft Diameter: Φ8mm
Shaft Length: 26mm
D-cut Length: 20mm
Number of Leads: 8
Lead Length: 550mm
Weight: 1.2kg;
.jpg "Oukeda 24V Brushless DC Motor 4000RPM47Ncm(46.73oz.in) 200W 12A 3 Phase Ф57mm BLDC Motor")
.jpg "Oukeda 24V Brushless DC Motor 4000RPM47Ncm(46.73oz.in) 200W 12A 3 Phase Ф57mm BLDC Motor")
.jpg "Oukeda 24V Brushless DC Motor 4000RPM47Ncm(46.73oz.in) 200W 12A 3 Phase Ф57mm BLDC Motor")
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Physical Specification | |
|---|---|
| D-cut Length | 20 |
| Body Length(mm) | 115 |
| Frame Size(mm) | 57 |
| Lead Length(mm) | 550 |
| No. of Lead | 8 |
| Shaft Diameter(mm) | 20 |
| Shaft Length(mm) | 26 |
| Shaft Type | D-cut |
| Single Shaft/Dual Shaft | Single Shaft |
| Weight(g) | 1200 |
| Electrical Specification | |
| Rated Current (A) | 12 |
| No. of Phase | 3 |
| Rated Power(W) | 200 |
| Rated Torque(Nm) | 0.47 |
| Rated Voltage(V) | 24 |
| Rated Speed(rpm) | 4000 |
