OUKEDA Brushless DC Motor with Driver Kit 57mm 0.44Nm 36V 184W 4000RPM 3 Phase
Electrical Specification:
Manufacturer Part Number:OK57BLS109-340A-1R
Phase: 3
Poles: 4
Rated Voltage: 36VDC
Rated Speed: 4000±10%RPM
No Load Speed: 4700±10%RPM
Rated Torque: 0.44Nm (62.31oz.in)
Rated Current:7.3A (Max.)
Rated Power: 184W
Insulation Class: B
Insulation Resistance: ≥100MΩ (500VDC)
Operating Temperature: -20°C to +50°C
Operating Humidity: 15% to 95%RH

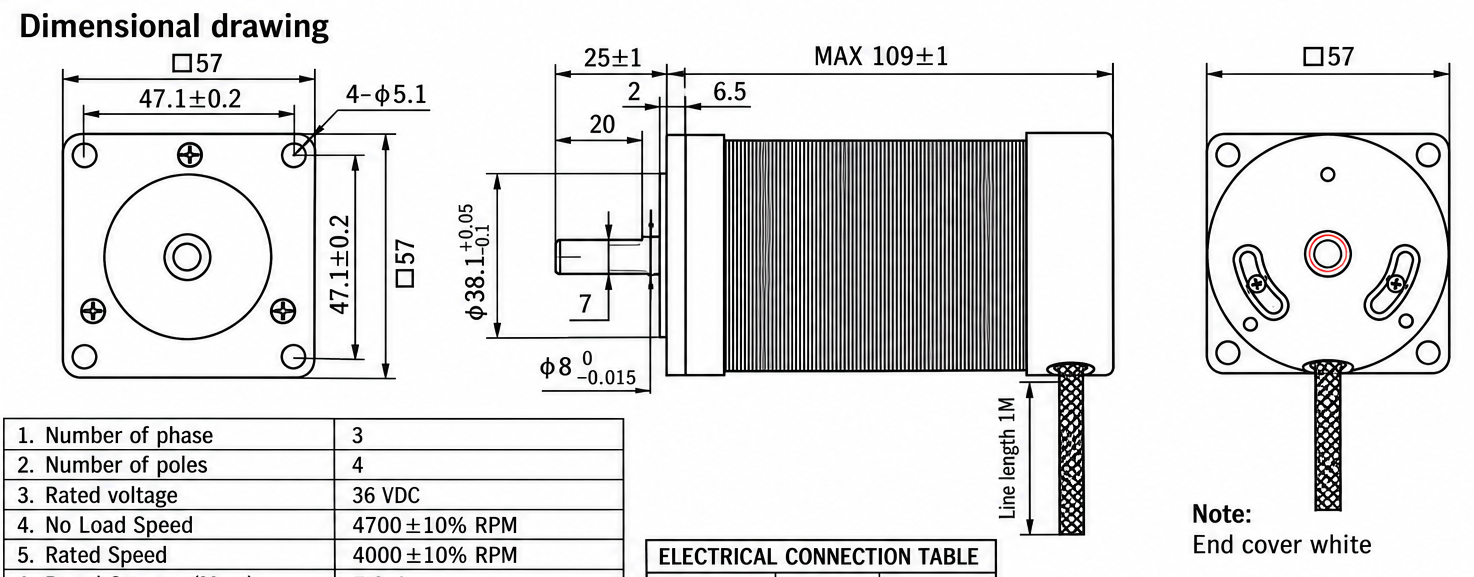

Physical Specification:
Frame Size: 57×57mm
Body Length: 109±1mm
Shaft Diameter: 8mm (0/-0.015mm)
Shaft Length: 25±1mm
Shaft Type: D-Cut Shaft
D-cut Length: 20mm
D-cut Flat Dimension: 7mm
Number of Leads: 8
Lead Length: 1000mm
Weight: Approx. 1.1kg
.jpg)

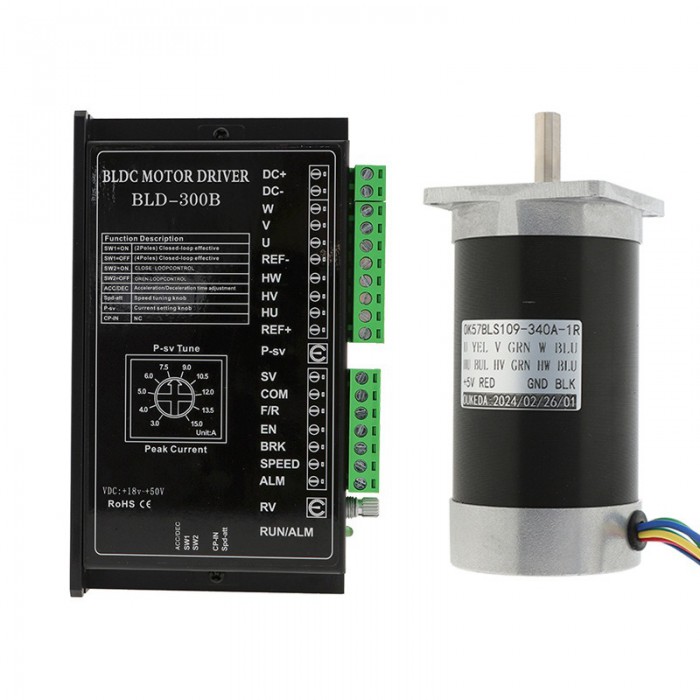

BLD-300B BLDC Motor Driver Brushless DC Motor Controller DC18-50V 15A
Features:
Compatible with brushless motors up to 300W output power;
External analog signal speed control
External potentiometer speed control
Protection functions: overcurrent, overvoltage, undervoltage, Hall effect fault.
Applications:
Engraving machines, CNC machine tools, packaging machinery, transmission equipment.
