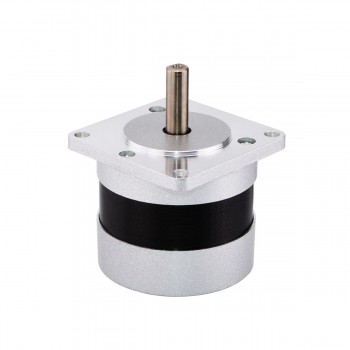

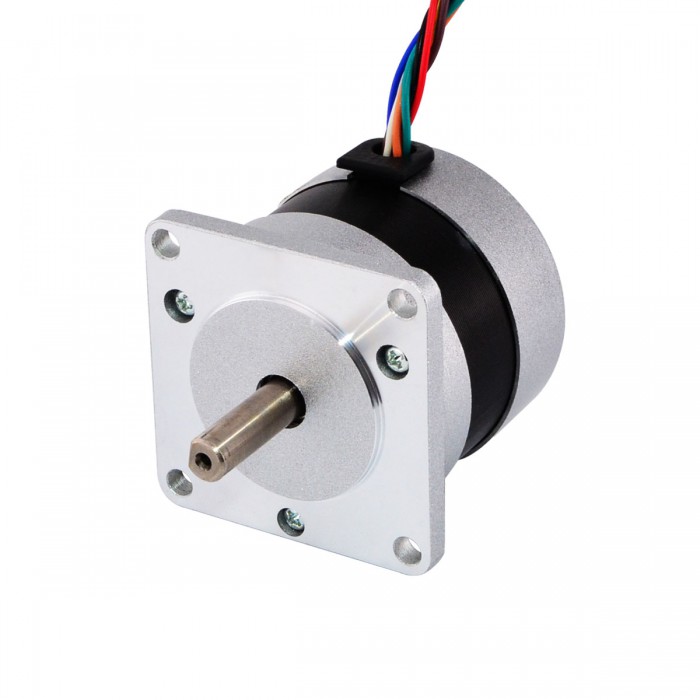

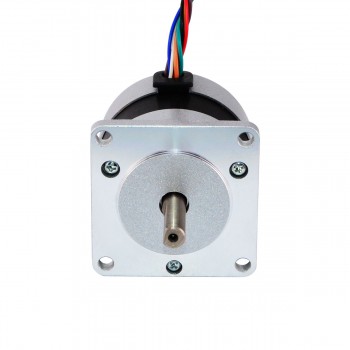

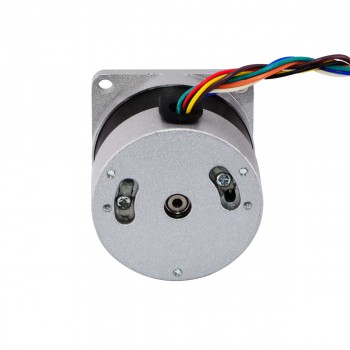

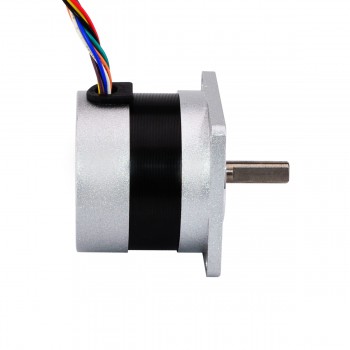

36V 4000RPM 0.11Nm 46W 2.0A Ф57x49mm 57BLR Brushless DC Motor

NO.:SKU:57BLR50-36-01
Review: Post a review
Latest price:$39.53
Buy It Now:$30.41
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - 99 100 - Max
$29.15 $27.87 $26.61 $25.34
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 57BLR50-36-01
  • Phase: 3
  • Poles: 4
  • Rated Voltage: 36V
  • Rated Speed: 4000±10%RPM
  • Rated Torque: 0.11Nm(15.58oz.in)
  • Rated Current: 2±10%A
  • Rated Power: 46W
  • Insulation Class: Class B
  • Insulation Resistance: 100MΩ Min @500VDC
  • Dielectric Strength Test: 500VAC for 1 Minute

Physical Specification

  • Frame Size: Φ57mm
  • Body Length: 49.1mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 25mm
  • Shaft Type: D-cut
  • D-cut Length: 20mm
  • Number of Leads: 8
  • Lead Length: 300mm
  • Bearing Type: NMB Ball Bearing, C3
  • Weight: 0.5kg

Connection

U
V
W
+5V
GND
A
B
C
ORG
GRN
BRW
RED
BLK
YEL
WHT
BLU

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: 36V 4400RPM 0.055Nm 25W 1.0A Ф57x43mm 57BLR Electrical Brushless DC Motor
Next: 36V 4300RPM 0.22Nm 99W 4.2A Ф57x69mm 57BLR Brushless DC Motor
BLDC Motor Specification
Bearing Type NMB Ball Bearing, C3
Insulation Class Class B
No. of Lead 8
No. of Phases 3
No. of Poles 4
Rated Current(A) 2
Rated Power(W) 46
Rated Speed(rpm) 4000±10%
Rated Torque(Nm) 0.11
Rated Torque(oz.in) 15.58
Rated Voltage(V) 36
Sensor Type Hall Sensor
Shaft Diameter(mm) 8
Shaft Length(mm) 25
Flange Size(mm) Ф57
Body Length(mm) 49.1
Physical Specification
Weight(g) 500
