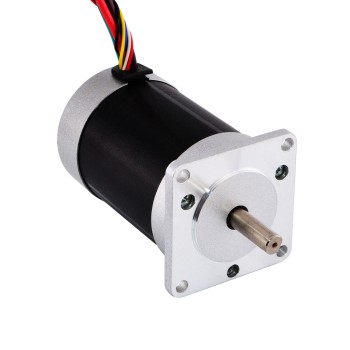

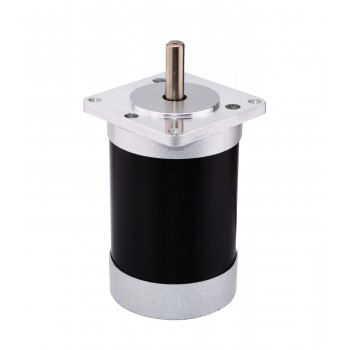

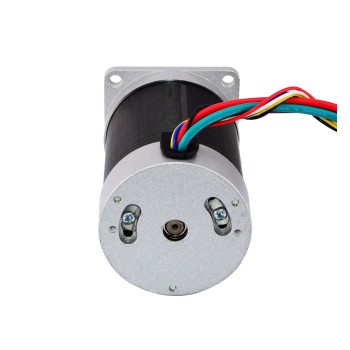

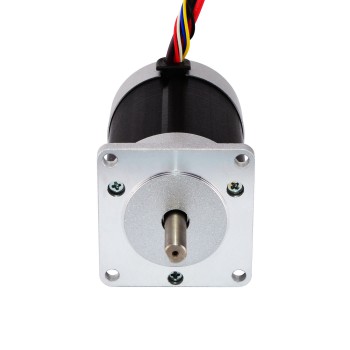

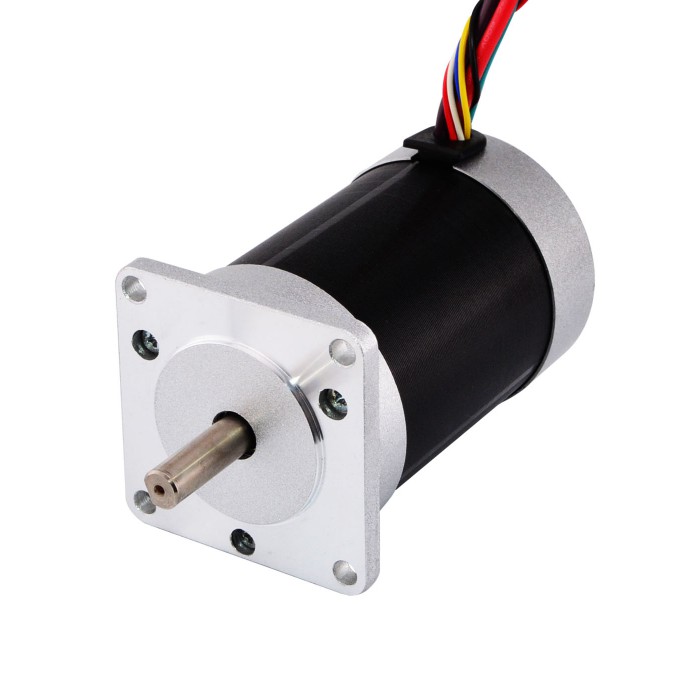

36V BLDC Motor 4000RPM 0.33Nm 138W 5.0A Ф57x89mm 57BLR Brushless DC Motor
Special Offer in September 2024:
- $10 Off Over $150
- $20 Off Over $300
- $35 Off Over $500
- $55 Off Over $800
- $70 Off Over $1000
- $100 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till September 20th, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$55.67
Electrical Specification
Manufacturer Part Number: 57BLR90-36-01
Phase: 3
Poles: 4
Rated Voltage: 36V
Rated Speed: 4000±10%RPM
Rated Torque: 0.33Nm(46.73oz.in)
Rated Current: 5±10%A
Rated Power: 138W
Insulation Class: Class B
Insulation Resistance: 100MΩ Min @500VDC
Dielectric Strength Test: 500VAC for 1 Minute
Physical Specification
Frame Size: Φ57mm
Body Length: 89.1mm
Shaft Diameter: Φ8mm
Shaft Length: 25mm
Shaft Type: D-cut
D-cut Length: 20mm
Number of Leads: 8
Lead Length: 300mm
Bearing Type: NMB Ball Bearing, C3
Weight: 1kg
Connection
|
U
|
V
|
W
|
+5V
|
GND
|
A
|
B
|
C
|
|
ORG
|
GRN
|
BRW
|
RED
|
BLK
|
YEL
|
WHT
|
BLU
|
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| BLDC Motor Specification | |
|---|---|
| Bearing Type | NMB Ball Bearing, C3 |
| Insulation Class | Class B |
| No. of Lead | 8 |
| No. of Phases | 3 |
| No. of Poles | 4 |
| Rated Current(A) | 5 |
| Rated Power(W) | 138 |
| Rated Speed(rpm) | 4000±10% |
| Rated Torque(Nm) | 0.33 |
| Rated Torque(oz.in) | 46.73 |
| Rated Voltage(V) | 36 |
| Sensor Type | Hall Sensor |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 25 |
| Flange Size(mm) | Ф57 |
| Body Length(mm) | 89.1 |
| Physical Specification | |
| Weight(g) | 1000 |
