Nema 17 Stepper Motor Bipolar 1.5A 1.8deg 45Ncm 12V for DIY CNC/ 3D Printer/Extruder

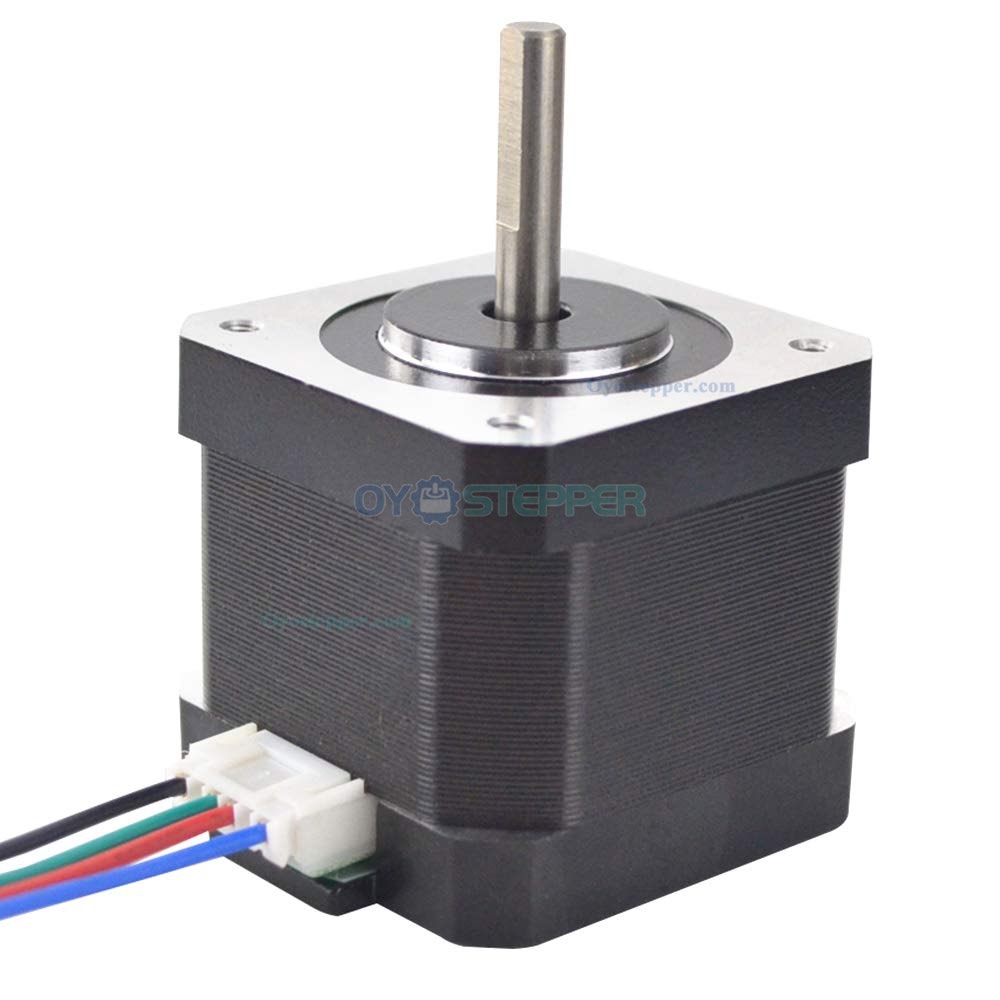

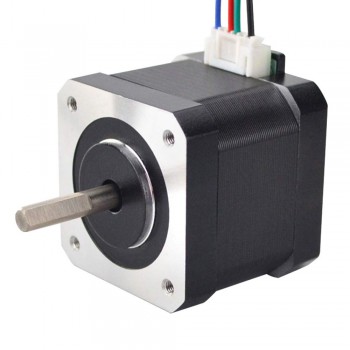

This bipolar Nema 17 stepper motor with step angle 1.8deg and size 42x42x39mm. It has 4 wires, each phase draws current 1.5A, with holding torque 45Ncm (63.74oz.in).
Electrical Specification

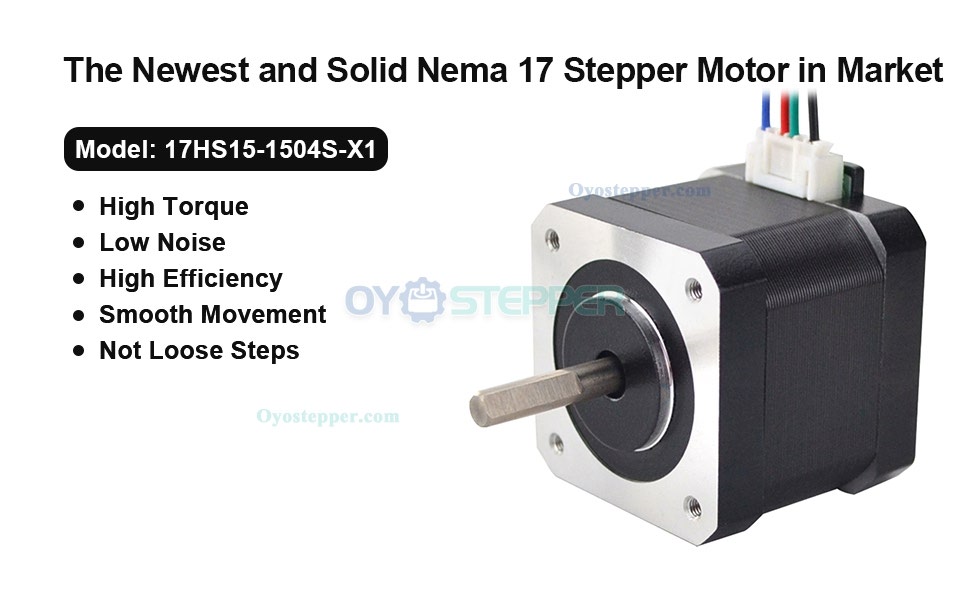

- Manufacturer Part Number: 17HS15-1504S-X1
- Motor Type: Bipolar Stepper
- Step Angle: 1.8 deg
- Holding Torque: 45Ncm(63.74oz.in)
- Rated Current/phase: 1.50A
- Phase Resistance: 2.3ohms
- Inductance: 4.4mH ± 20%(1KHz)

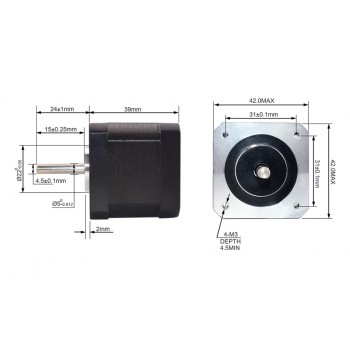

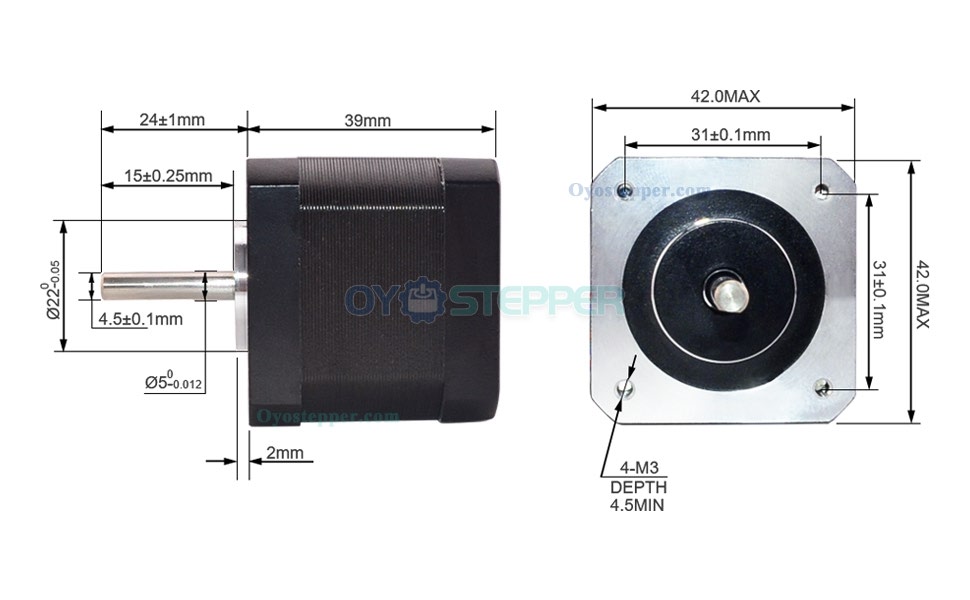

Physical Specification
- Frame Size: 42 x 42mm
- Body Length: 39mm
- Shaft Diameter: Φ5mm
- Shaft Length: 24mm
- D-cut Length: 15mm
- Number of Leads: 4
- Lead Length: 1000mm
- Weight: 280g
Resources
- Full Datasheet: 17HS15-1504S-X1.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 45 |
| Holding Torque (oz.in) | 63.74 |
| Inductance(mH) | 4.4 |
| Phase Resistance(ohm) | 2.3 |
| Rated Current (A) | 1.5 |
| Physical Specification | |
| Body Length(mm) | 39 |
| Lead Length(mm) | 1000 |
| No. of Lead | 4 |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| Shaft Type | D-Cut |
| Single Shaft/Dual Shaft | Single Shaft |
| Weight(g) | 280 |

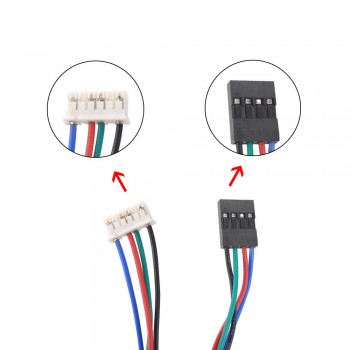

- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
jacob.martin – 26 Oct 2019
Solid motors. Needed to replaced a seized stepped on my 3d printer, bought these because they offered a little more torque. Ran well so far definatly a step up from typical no name motors included in cheaper 3d printer kits.
Dale.C – 26 Oct 2019
What is the connector on the side of the motor? I wish to make my own cables.
