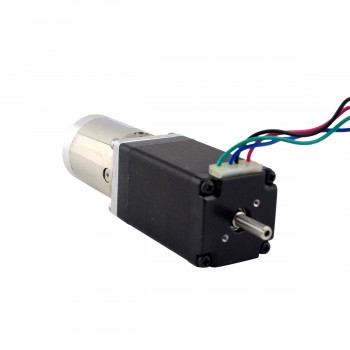

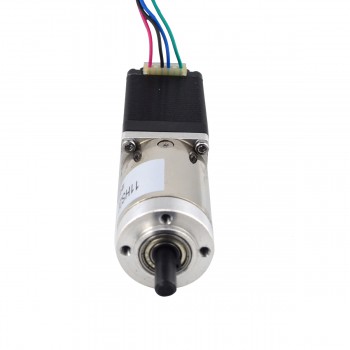

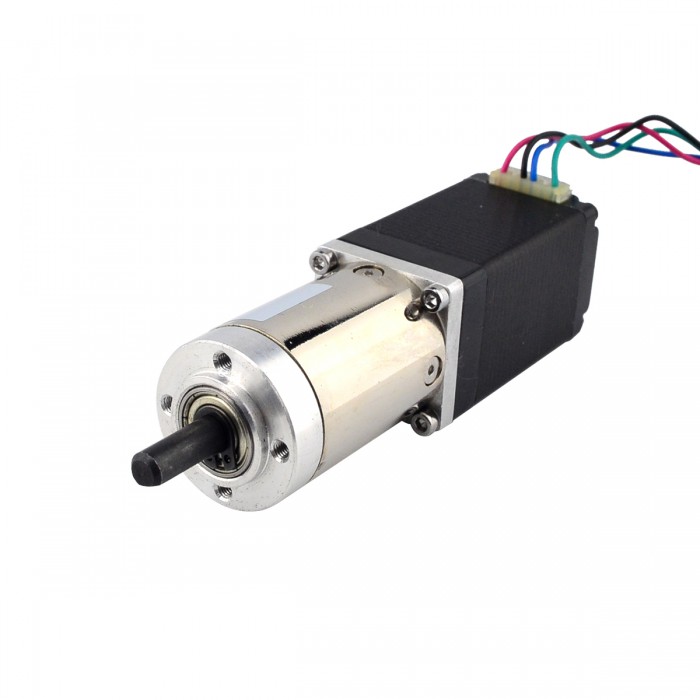

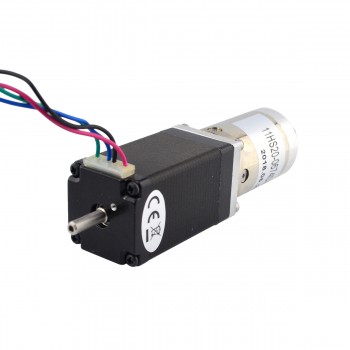

Nema 11 Gear Stepper L=51mm w/ Rear Shaft & Screw Hole & Gear Ratio 51:1 Gearbox
Special Offer in June 2023:
- 5% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till June 10th, 2023
- Note:No coupon code needed, please place order directly!
Our Price:$42.91
This Nema 11 stepper motor with 51mm body and 0.67A rated current, integrated a planetary gearbox of 51.9:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.
Electrical Specification
- Manufacturer Part Number: 11HS20-0674D-PG51
- Motor Type: Bipolar Stepper
- Step Angle: 1.8 deg
- Holding Torque: 14Ncm(19.88oz.in)
- Rated Current/phase: 0.67A
- Voltage: 8.04V
- Phase Resistance: 12ohms
- Inductance: 6.5mH ± 20%(1KHz)
Gearbox Specifications
- Gearbox Type:Planetary
- Gear Ratio:51.9:1
- Efficiency:73%
- Backlash at No-load:<=1deg
- Max.Permissible Torque:4N.m(566oz.in)
- Moment Permissible Torque:6N.m(850oz.in)
- Shaft Maximum Axial Load:5N
- Shaft Maximum Radial Load:25N
Physical Specification
- Frame Size: 28 x 28mm
- Motor Length: 51mm
- Gearbox Length:42.7mm
- Front Shaft Diameter: Φ6mm
- Front Shaft Length: 18mm
- Front D-cut Length: 12mm

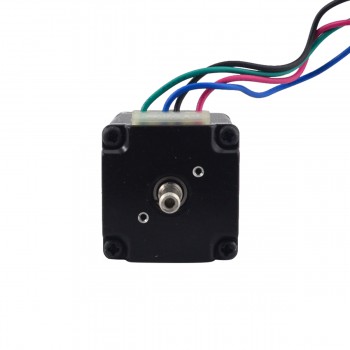

- Rear Shaft Diameter: Φ4mm
- Rear Shaft Length:12mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 400g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
- Full Datasheet: 11HS20-0674D-PG51.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Gearbox Specification | |
|---|---|
| Efficiency | 73% |
| Gear Ratio | 50.9:1 |
| Gearbox Length(mm) | 42.7 |
| Gearbox Type | Planetary |
| Backlash at No-load(Max.°) | 1 |
| Max. Permissible Torque(Ncm) | 400 |
| Max. Permissible Torque(oz.in) | 566.56 |
| Moment Permissible Torque(Ncm) | 600 |
| Moment Permissible Torque(oz.in) | 849.84 |
| Shaft Maximum Axial Load(N) | 5 |
| Shaft Maximum Radial Load(N) | 25 |
| Motor Specification | |
| Bipolar/Unipolar | Bipolar |
| Holding Torque w/o Gearbox(Ncm) | 14 |
| Holding Torque w/o Gearbox(oz.in) | 19.83 |
| Inductance(mH) | 6.5 |
| Lead Length(mm) | 500 |
| Motor Nema Size | Nema 11 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 12 |
| Rated Current (A) | 0.67 |
| Shaft Diameter(mm) | 6 |
| Shaft Length(mm) | 18 |
| Shaft Type | D-Cut |
| Single Shaft/Dual Shaft | Dual Shaft |
| Physical Specification | |
| Weight(g) | 400 |
