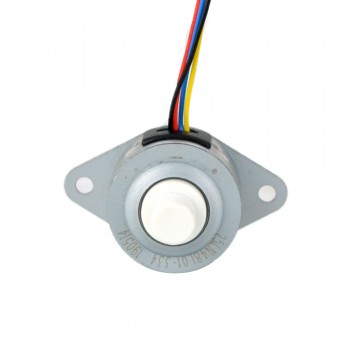

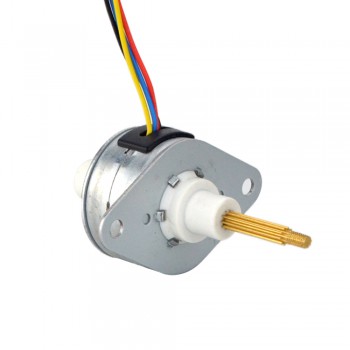

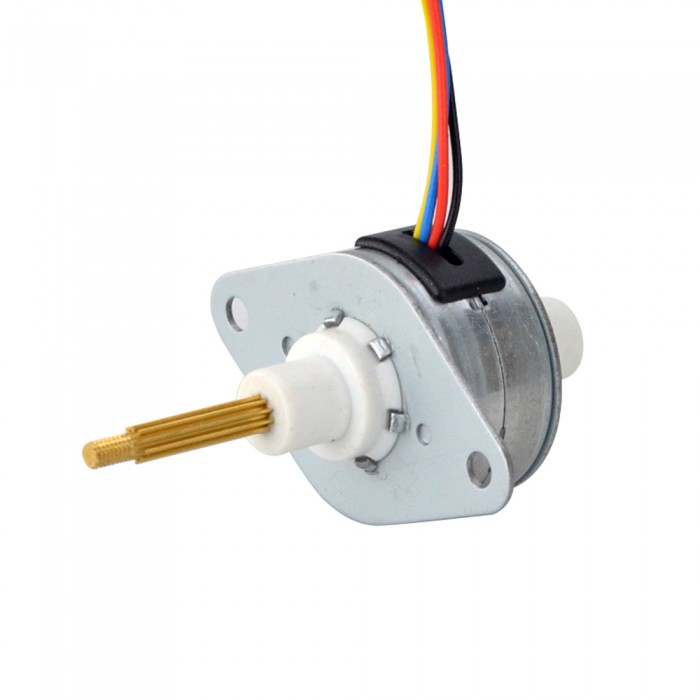

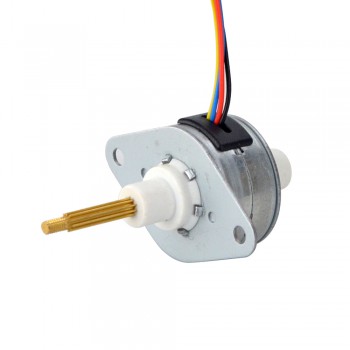

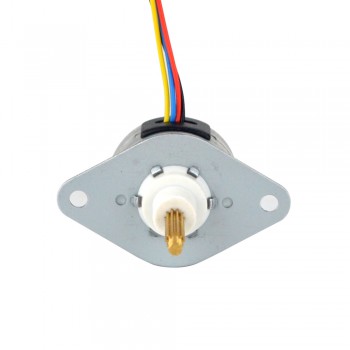

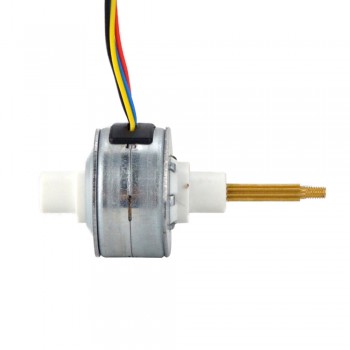

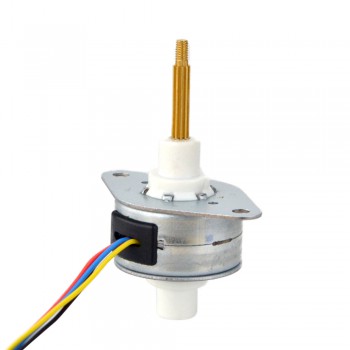

Φ25.2x15mm PM Captive Economy Linear Stepper Motor 0.5A Lead 1.22mm/0.048" Travel 13.5mm

NO.:25LN48L01-334
Review: Post a review
Black Friday Special Offer 2020:
  • 6% Off on Total Order Amount
  • Enjoy Discount at Checkout
  • No Need Coupon Code!
  • Valid Till 3rd December, 2020
Latest price:$27.71
Buy It Now:$21.31
Quantity:- +

Buy More, Save more!
5 - 9 10 - 49 50 - 99 100 - Max
$19.46 $18.54 $17.62 $16.68
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 25LN48L01-334
  • Motor Type: PM Captive Linear Stepper
  • Phase: 2
  • Step Angle: 7.5 deg
  • Rated Current/phase: 0.5 A
  • Thrust: 30 N(100 Hz)
  • Phase Resistance: 7.2 ± 7% ohms(20 ℃)
  • Inductance: 4.1 mH ± 20%
  • IP Protection: IP30
  • Life: 1500000 cycles

Physical Specification

  • Frame Size: Φ25 mm
  • Body Length: 14.3 mm
  • Travel Distance: 13.5 mm(0.531")
  • Lead Screw Diameter: Φ3.5 mm(0.138")
  • Lead/Revolution: 1.22 mm(0.048")
  • Lead/Step: 0.0254 mm(0.001")
  • Number of Leads: 4
  • Lead Length: 230 mm
  • Weight: 34 g

Connection

A+
A-
B+
B-
Black
Red
Blue
Yellow



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Φ36x17.5mm PM Captive Economy Linear Stepper Motor 0.6A Lead 1.22mm/0.047" Travel 5.3mm
Next: 150mm 5mm Diameter 2mm Pitch Trapezoidal Lead Screw for Stepper Motor
Electrical Specification
Inductance(mH) 4.1
Phase Resistance(ohm) 7.2
Rated Current (A) 0.5
Step Angle(°) 7.5
Motor Type Captive
No. of Phase 2
Physical Specification
Body Length(mm) 14.3
Frame Size(mm) Φ25
Lead Length(mm) 230
Lead Screw Diameter(mm) Φ3.5
Lead Travel/Revolution(mm) 1.22
Lead Travel/Step(mm) 0.0254
Travel(mm) 13.5
