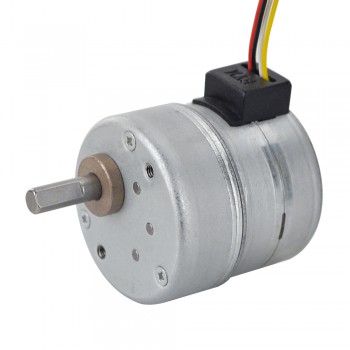

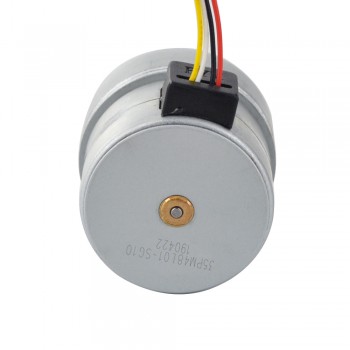

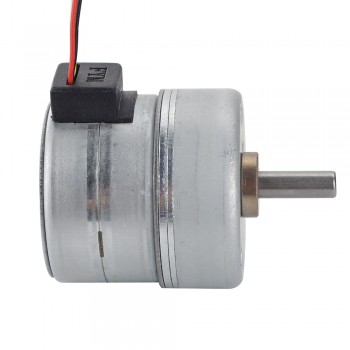

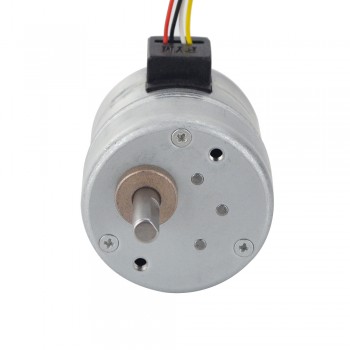

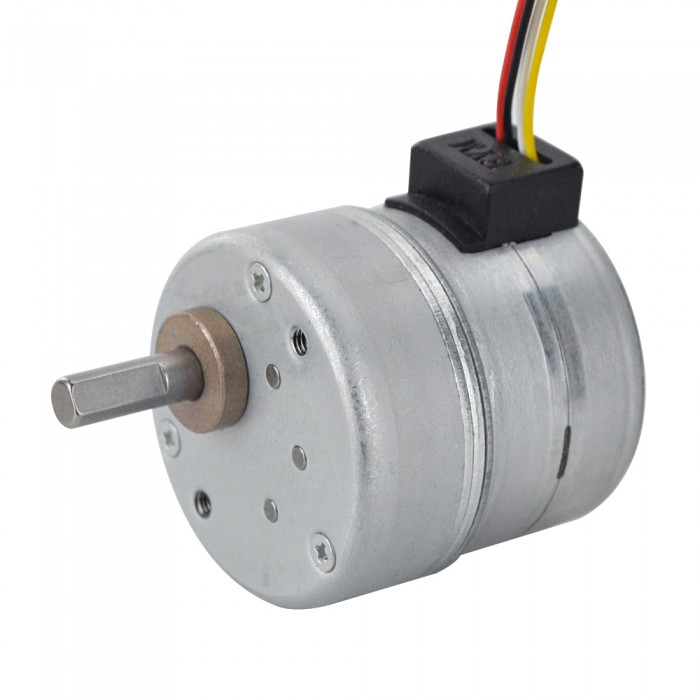

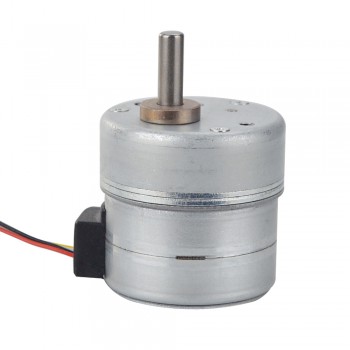

PM Stepper motor Φ35x36.2mm W/Gear Ratio 10.8:1 Spur gearbox

NO.:35PM48L01-SG10
Review: Post a review
Latest price:$22.39
Buy It Now:$14.93
Quantity:- +

Buy More, Save more!
5 - 9 10 - 49 50 - 99 100 - Max
$13.62 $12.97 $12.32 $11.68
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 35PM48L01-SG10
  • Motor Type: PM Stepper
  • Phase: 2
  • Step Angle: 0.694 deg
  • Rated Current/phase: 0.24 A
  • Holding Torque: 69.58 Ncm(98.55 oz.in)
  • Phase Resistance: 100 ± 7% ohms(20 ℃)
  • Inductance: 110 mH ± 20%

Physical Specification

  • Frame Size: Φ35 mm
  • Body Length: 36.2 mm
  • Gearbox Length: 15.2 mm
  • Shaft Diameter: Φ5 mm
  • Shaft Length: 17.1 mm
  • D-cut Length: 10.1 mm
  • Gearbox Type: Spur
  • Gear Ratio: 10.8
  • Number of Leads: 4 with connector Molex5264
  • Lead Length: 140 mm
  • Weight: 139 g

Connection

A+
A-
B+
B-
Yellow
Black
White
Red



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Digital Stepper Driver for Nema 34 Motor Y Series 2.4-7.2A AC18V-80V / DC 36V-110V
Next: PM Captive Linear Stepper Motor Φ25.2x15mm 0.15A Lead 1.22mm/0.048" Travel 13.5mm
Electrical Specification
Holding Torque (oz.in) 98.55
Inductance(mH) 110
Phase Resistance(ohm) 100
Rated Current (A) 0.24
Step Angle(°) 0.694
No. of Phase 2
Holding Torque(mN.m) 695.8
Gearbox Specification
Gear Ratio 10.8
Gearbox Length(mm) 15.2
Gearbox Type Spur
Physical Specification
Body Length(mm) 36.2
Frame Size(mm) Φ35
Lead Length(mm) 140
No. of Lead 4
Shaft Diameter(mm) Φ5
Shaft Length(mm) 17.1
