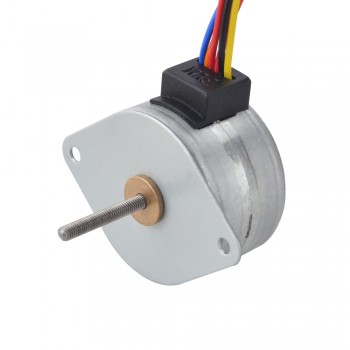

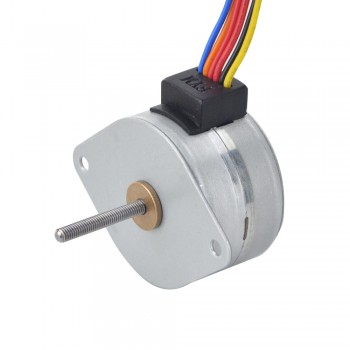

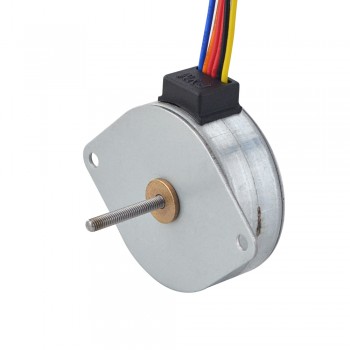

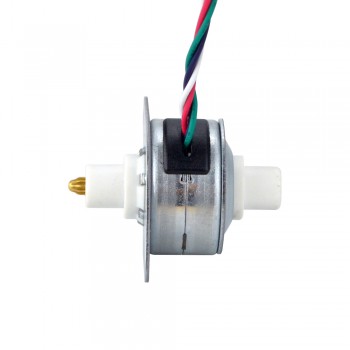

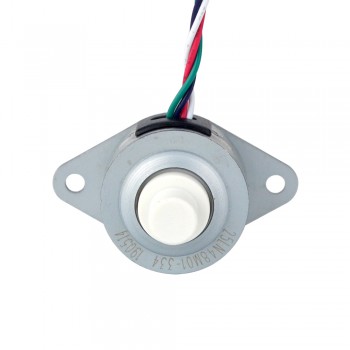

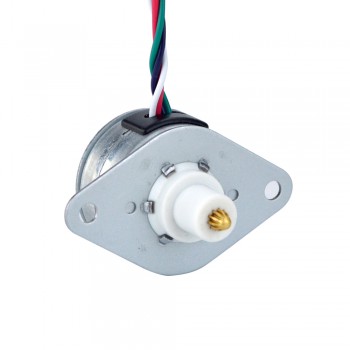

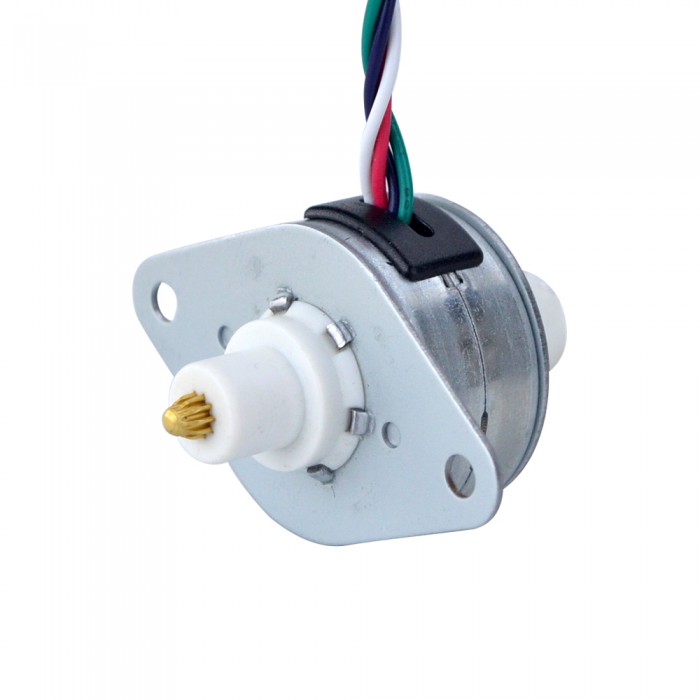

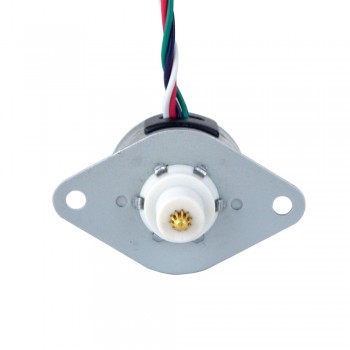

PM Captive Linear Stepper Motor Φ25.2x15mm 0.15A Lead 1.22mm/0.048" Travel 13.5mm

NO.:25LN48M01-334(1)
Review: Post a review
Latest price:$31.97
Buy It Now:$21.31
Quantity:- +

Buy More, Save more!
5 - 9 10 - 49 50 - 99 100 - Max
$19.46 $18.54 $17.62 $16.68
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 25LN48M01-334
  • Motor Type: PM Captive Linear Stepper
  • Phase: 2
  • Step Angle: 7.5 deg
  • Rated Current/phase: 0.15 A
  • Thrust: 9.8 N(300 Hz)
  • Phase Resistance: 47 ± 7% ohms(20 ℃)
  • Inductance: 17.8 mH ± 20%
  • IP Protection: IP34
  • Life: 1500000 cycles

Physical Specification

  • Frame Size: Φ25 mm
  • Body Length: 14.3 mm
  • Travel Distance: 13.5 mm(0.531")
  • Lead Screw Diameter: Φ3.5 mm(0.138")
  • Lead/Revolution: 1.22 mm(0.048")
  • Lead/Step: 0.0254 mm(0.001")
  • Number of Leads: 4
  • Lead Length: 80 mm
  • Weight: 30.5 g

Connection

A+
A-
B+
B-
Green
Blue
Red
White



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: PM Stepper motor Φ35x36.2mm W/Gear Ratio 10.8:1 Spur gearbox
Next: Integrated Stepper Motor Driver for NEMA 8,11,14,17 Stepper Motor 0-2A 10-28VDC
Electrical Specification
Inductance(mH) 17.8
Phase Resistance(ohm) 47
Rated Current (A) 0.15
Step Angle(°) 7.5
Motor Type Captive
Physical Specification
Body Length(mm) 14.3
Frame Size(mm) Φ25
Lead Length(mm) 80
Lead Screw Diameter(mm) Φ3.5
Linear Travel / Step(mm) 0.0254
No. of Lead 4
Lead Travel/Revolution(mm) 1.22
Travel(mm) 13.5
